TEL Tokyo Electron 1981-607609-12显示器板
1.产 品 资 料 介 绍：
中文资料：
产品型号： TEL Tokyo Electron 1981-607609-12
产品类型： 显示器板（Display Board / HMI Interface Board）
功能定位： 半导体设备中用于图形信息显示、人机交互与运行状态反馈的核心模块
一、产品功能概述：
1981-607609-12 显示器板是 Tokyo Electron（TEL）为其半导体制造设备配套开发的显示控制组件，通常作为人机界面（HMI）系统的一部分，用于驱动液晶屏或触控面板，向操作人员提供工艺信息、设备状态、报警提示和交互功能。
二、主要应用领域：
图形化工艺信息显示
实时展示温度、压力、气体流量、运行时间等关键工艺参数，辅助操作者了解设备状态。
设备控制界面支持
与主控系统配合，完成参数设定、菜单导航、模式切换等人机交互功能。
报警与故障状态提示
显示系统报警信息、运行错误、故障代码等，便于故障定位与维护。
运行历史记录和日志查看
通过屏幕显示设备运行日志或工艺记录，提高数据可追溯性和操作合规性。
与主控板通信协同工作
通过串口、以太网或专用通信总线与主控系统进行数据交换，实现操作命令的下发和反馈显示。
英文资料：
Product model: TEL Tokyo Electron 1981-607609-12
Product type: Display Board/HMI Interface Board
Functional positioning: The core module used for graphic information display, human-computer interaction, and operational status feedback in semiconductor equipment
1、 Product Function Overview:
The 1981-607609-12 display board is a display control component developed by Tokyo Electron (TEL) for its semiconductor manufacturing equipment. It is typically used as part of a human-machine interface (HMI) system to drive LCD screens or touch panels, providing process information, equipment status, alarm prompts, and interactive functions to operators.
2、 Main application areas:
Graphic process information display
Real time display of key process parameters such as temperature, pressure, gas flow rate, and operating time to assist operators in understanding equipment status.
Equipment control interface support
Cooperate with the main control system to complete human-machine interaction functions such as parameter setting, menu navigation, and mode switching.
Alarm and fault status prompt
Display system alarm information, operational errors, fault codes, etc. for easy fault location and maintenance.
View operation history and logs
By displaying device operation logs or process records on the screen, data traceability and operational compliance can be improved.
Collaborate with the main control board to communicate and work together
Exchange data with the main control system through serial port, Ethernet or dedicated communication bus to achieve the issuance of operation commands and feedback display.

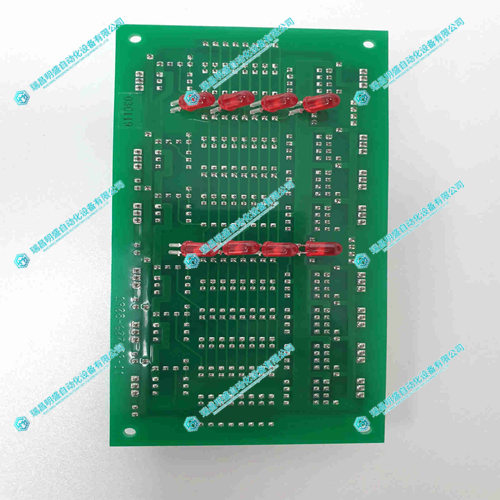

2.产 品 展 示
