KEBA E-3-ACU-INC电路板
1.产 品 资 料 介 绍：
KEBA E-3-ACU-INC 是 KEBA 自动化系统中的一款 增量式编码器信号处理板（Incremental Encoder Interface Board），用于接收和解析外部增量编码器信号（如 A/B/Z 通道），并将其转换为控制器可识别的位置信号或速度反馈信号。该模块常作为运动控制系统中的关键接口，特别适用于需要闭环反馈的高精度应用场合。
技术参数：
功能类型：编码器接口电路板
支持编码器类型：增量式编码器（增量型旋转或直线编码器）
通道支持：
A、B 正交信号通道
Z（零位）参考信号通道
输入信号电平：
5V TTL / RS422 差分信号（标准）
最大输入频率：
可达 1 MHz（取决于编码器与控制器处理能力）
输出接口：
直接连接至 KEBA 主控模块或运动控制卡
电气隔离：具备输入信号与主板之间的光电隔离
工作电压：
通常为 5V DC 或 24V DC（由系统供电）
板载指示灯：LED 状态指示（信号正常/故障）
安装方式：机架式插板安装或固定在背板母板上
适配系统：KeMotion、KeDrive、KeControl 控制架构
英文资料：
KEBA E-3-ACU-INC is an incremental encoder interface board in KEBA automation systems, used to receive and parse external incremental encoder signals (such as A/B/Z channels), and convert them into position signals or speed feedback signals that can be recognized by the controller. This module is often used as a key interface in motion control systems and is particularly suitable for high-precision applications that require closed-loop feedback.
Technical parameters:
Function type: Encoder interface circuit board
Supporting encoder types: incremental encoder (incremental rotary or linear encoder)
Channel support:
A. B orthogonal signal channel
Z (zero position) reference signal channel
Input signal level:
5V TTL/RS422 differential signal (standard)
Maximum input frequency:
Up to 1 MHz (depending on the processing capability of the encoder and controller)
Output interface:
Directly connected to the KEBA main control module or motion control card
Electrical isolation: It has photoelectric isolation between the input signal and the motherboard
Working voltage:
Usually 5V DC or 24V DC (powered by the system)
Onboard indicator light: LED status indicator (signal normal/fault)
Installation method: Rack mounted plug-in board installation or fixed on the backplane motherboard
Adaptation system: KeMotion, KeDrive, KeControl control architecture

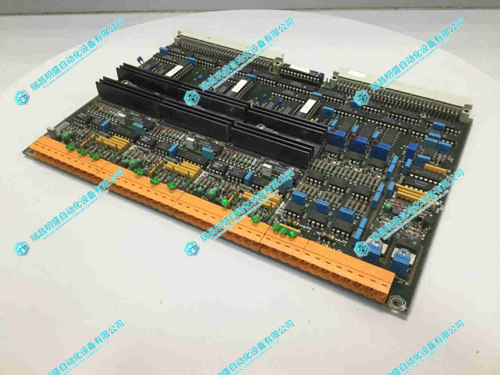

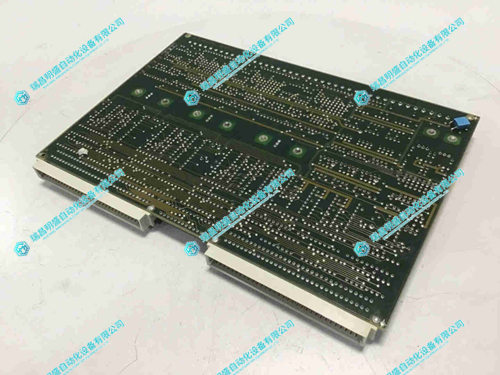

2.产 品 展 示
