KEBA E-8-THERMO控制板
1.产 品 资 料 介 绍：
KEBA E-8-THERMO 控制板是一款专门用于温度控制的工业级电路板，主要应用于注塑机、橡胶成型机及其他工业自动化设备中的温度调节和管理。该控制板支持多路温度传感器输入，具备精确的温度采集、处理和输出控制功能，是 KEBA 温度控制系统的重要组成部分。
技术参数：
输入类型：支持多路热电偶（如 K 型、J 型等）和热阻传感器输入
测量范围：-200°C 至 +1200°C（依传感器类型而定）
采样精度：±0.1°C 级别高精度采样
控制输出：多路加热器功率输出信号（模拟量或脉宽调制 PWM 输出）
反馈回路：支持 PID 控制算法，实现温度的精准调节
供电电压：24V DC
通讯接口：支持 RS485 或 CAN 总线通讯，便于与主控制器集成
工作环境温度：0°C ～ +55°C
安装方式：模块化设计，适合 DIN 导轨或机架安装
保护功能：过温报警、短路保护及故障诊断
应用领域：
1. 注塑机温度控制
负责喷嘴、料筒、模具等部位的温度测量与加热控制。
2. 橡胶成型设备
精确控制硫化温度，保证产品质量稳定。
3. 工业炉窑及加热设备
实现工业加热系统的温度自动调节。
4. 其他自动化设备温度管理
适用于各种需要精准温控的工业自动化场合。
英文资料：
The KEBA E-8-THERMO control board is an industrial grade circuit board specifically designed for temperature control, mainly used for temperature regulation and management in injection molding machines, rubber molding machines, and other industrial automation equipment. This control board supports multiple temperature sensor inputs and has precise temperature acquisition, processing, and output control functions. It is an important component of the KEBA temperature control system.
Technical parameters:
Input type: Supports multiple thermocouples (such as K-type, J-type, etc.) and thermal resistance sensor inputs
Measurement range: -200 ° C to+1200 ° C (depending on sensor type)
Sampling accuracy: high-precision sampling at ± 0.1 ° C level
Control output: Multi channel heater power output signal (analog or pulse width modulation PWM output)
Feedback loop: Supports PID control algorithm to achieve precise temperature adjustment
Power supply voltage: 24V DC
Communication interface: Supports RS485 or CAN bus communication for easy integration with the main controller
Working environment temperature: 0 ° C to+55 ° C
Installation method: Modular design, suitable for DIN rail or rack installation
Protection functions: over temperature alarm, short circuit protection, and fault diagnosis
Application areas:
1. Temperature control of injection molding machine
Responsible for temperature measurement and heating control of nozzles, barrels, molds, and other parts.
2. Rubber molding equipment
Accurately control the vulcanization temperature to ensure stable product quality.
3. Industrial furnaces and heating equipment
Realize automatic temperature regulation of industrial heating systems.
4. Temperature management of other automation equipment
Suitable for various industrial automation scenarios that require precise temperature control.

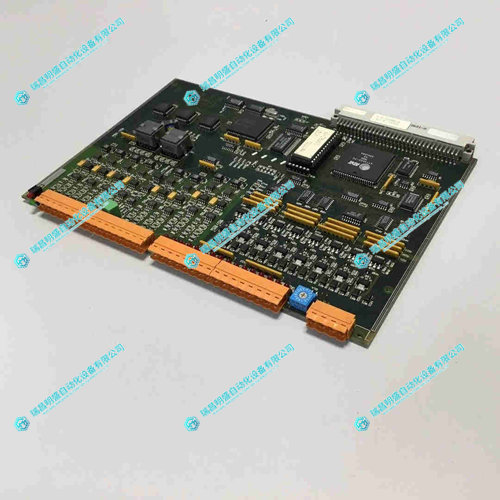

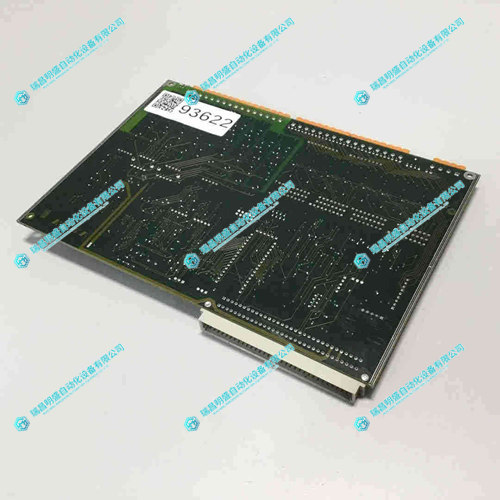

2.产 品 展 示
