KEBA DO321 1914D-0数字输出卡
1.产 品 资 料 介 绍：
一、产品概述
KEBA DO321（内部型号 1914D-0）是一款工业级 数字输出卡（Digital Output Card），用于在 KEBA 自动化系统中将控制器的逻辑信号转化为物理开关输出信号。该模块可直接控制执行设备如继电器、电磁阀、马达接触器、指示灯等，是实现现场设备联动控制的关键组成部分。其设计注重高速响应、抗干扰能力及系统兼容性，广泛用于机器人控制、注塑设备、数控系统等工业场景。
二、技术参数
型号：DO321 / 1914D-0
类型：数字量输出模块（Digital Output）
输出通道数：通常为 16 路（某些版本可能支持 32 路）
输出类型：晶体管输出（多为 PNP 类型）
通道负载能力：每通道最大 0.5A 输出电流
总电流容量：视系统散热及电源而定（一般为 8A~10A 总负载）
工作电压：24V DC
响应时间：低于 1ms，适合快速逻辑控制
接口方式：模块化端子连接或总线板连接
安装方式：DIN 导轨或控制架插槽式
防护等级：IP20（适用于电控柜内部）
温度范围：-10°C 至 +60°C 工业应用标准
三、应用领域
工业机器人系统
控制夹具开合、真空吸盘切换、报警指示设备等现场组件。
注塑机与液压控制系统
用于控制油路电磁阀、冷却系统、机械臂联动输出等逻辑动作。
数控及自动包装生产线
实现输送带启停、分拣装置控制、电机触发等输出功能。
自动测试/测量系统
输出信号触发测试工序或控制外部设备执行预设任务。
英文资料：
1、 Product Overview
KEBA DO321 (internal model 1914D-0) is an industrial grade digital output card used to convert logic signals from controllers into physical switch output signals in KEBA automation systems. This module can directly control executing devices such as relays, solenoid valves, motor contactors, indicator lights, etc., and is a key component for achieving on-site device linkage control. Its design focuses on high-speed response, anti-interference ability, and system compatibility, and is widely used in industrial scenarios such as robot control, injection molding equipment, and CNC systems.
2、 Technical parameters
Model: DO321/1914D-0
Type: Digital Output Module
Number of output channels: usually 16 channels (some versions may support 32 channels)
Output type: transistor output (mostly PNP type)
Channel load capacity: Maximum output current of 0.5A per channel
Total current capacity: Depending on system heat dissipation and power supply (usually 8A~10A total load)
Working voltage: 24V DC
Response time: less than 1ms, suitable for fast logic control
Interface method: modular terminal connection or bus board connection
Installation method: DIN rail or control bracket slot type
Protection level: IP20 (applicable to the interior of the electrical control cabinet)
Temperature range: -10 ° C to+60 ° C Industrial application standard
3、 Application Fields
Industrial Robot System
Control on-site components such as fixture opening and closing, vacuum suction cup switching, and alarm indicator devices.
Injection molding machine and hydraulic control system
Used to control logical actions such as oil solenoid valves, cooling systems, and linkage outputs of robotic arms.
CNC and automatic packaging production line
Implement output functions such as conveyor belt start stop, sorting device control, and motor triggering.
Automatic testing/measurement system
Output signals to trigger testing processes or control external devices to perform preset tasks.

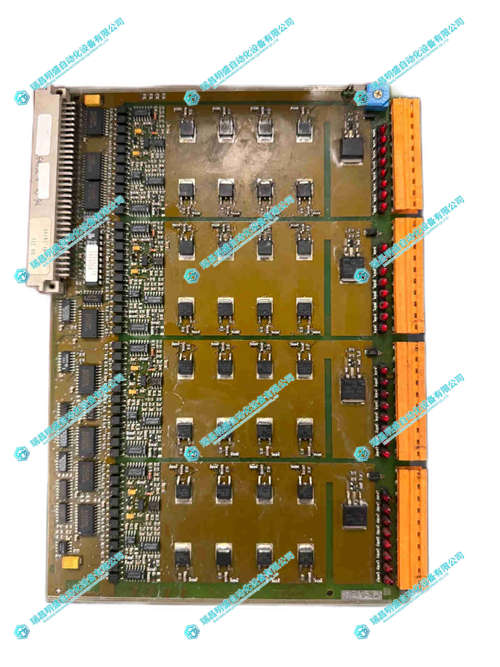

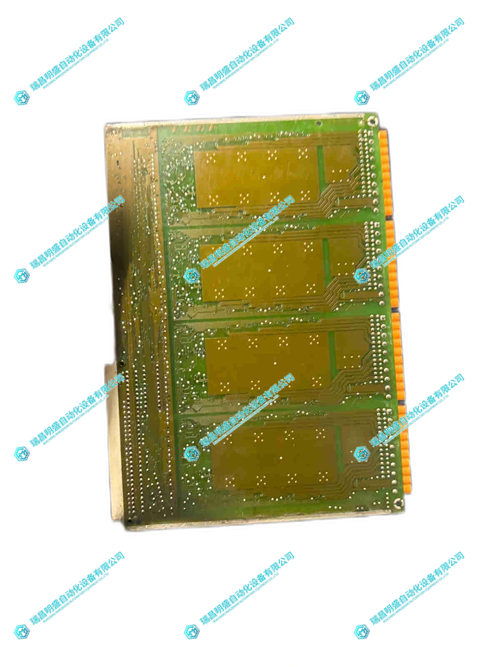

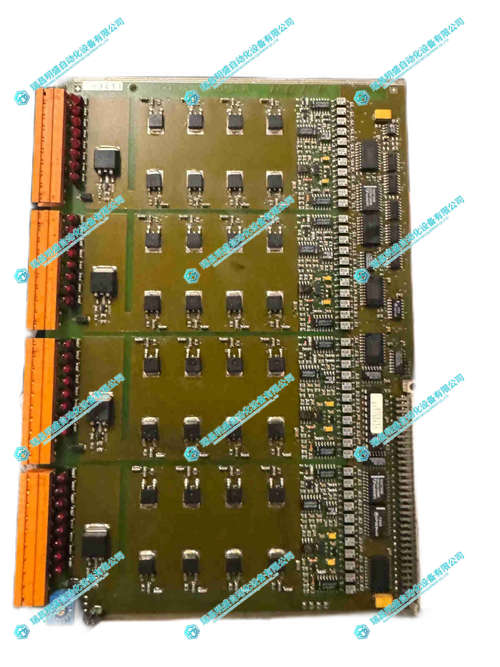

2.产 品 展 示
