KEBA E-SP-CCEC/A/22操作员控制面板

 KEBA E-SP-CCEC/A/22操作员控制面板

1.产 品 资 料 介 绍：

一、产品概述

KEBA E-SP-CCEC/A/22 是一款专为工业自动化系统设计的 操作员控制面板（Operator Control Panel），用于人机交互、系统监控和过程控制。该面板集成了按钮、开关、信号指示和接口单元，便于操作员在现场对设备进行直接控制或参数设定，广泛应用于 KEBA 控制平台（如 KeControl、KePlast 系列）中的注塑机、包装线、机器人和自动化设备。

二、技术参数

• 型号：E-SP-CCEC/A/22

• 功能类型：操作员本地控制面板

• 面板结构：

  • 含紧急停止按钮、功能键、选择开关、LED 状态指示等

  • 可能集成旋钮、模式切换键、键控启停等常用操作元件

• 连接方式：通过标准工业接口与主控制系统连接（如 SUB-D、IDC、插针或专用接头）

• 供电电压：一般为 24V DC

• 防护等级：面板正面具备 IP54 或更高等级，防尘防水溅

• 安装方式：前面板嵌入式安装于机柜、控制台或设备前面框

• 尺寸与布局：22表示可能为 22mm 规格开孔按钮面板标准（IEC 60947-5-1）

三、应用领域

1. 注塑设备控制界面

   • 提供操作员对注射、模具、加热等系统状态的快捷操作。

2. 工业机器人本地控制站

   • 用于机器人手动调试、运行模式切换、状态确认等任务。

3. 包装与输送线控制终端

   • 实现场站启停、报警复位、运行模式转换等功能。

4. 设备面板定制接口模块

   • 被嵌入至 OEM 客户的设备外壳，用作主控制系统的人机接口部件。

英文资料：

1、 Product Overview

KEBA E-SP-CCEC/A/22 is an Operator Control Panel designed specifically for industrial automation systems, used for human-machine interaction, system monitoring, and process control. This panel integrates buttons, switches, signal indicators, and interface units, making it easy for operators to directly control or set parameters of the equipment on site. It is widely used in injection molding machines, packaging lines, robots, and automation equipment in KEBA control platforms (such as KeControl and KePlast series).

2、 Technical parameters

Model: E-SP-CCEC/A/22

Function type: Operator local control panel

Panel structure:

Including emergency stop button, function keys, selection switch, LED status indicator, etc

Possible integration of commonly used operating components such as knobs, mode switching keys, and key controlled start stop

Connection method: Connect to the main control system through standard industrial interfaces (such as SUB-D, IDC, pins or dedicated connectors)

Power supply voltage: generally 24V DC

Protection level: The front of the panel has an IP54 or higher rating, which is dustproof, waterproof, and splash proof

Installation method: The front panel is embedded and installed in the cabinet, console, or device front frame

Size and layout: 22 indicates a possible 22mm standard for perforated button panels (IEC 60947-5-1)

3、 Application Fields

Injection molding equipment control interface

Provide operators with quick access to the status of injection, mold, heating, and other systems.

Local control station for industrial robots

Used for tasks such as manual debugging, mode switching, and status confirmation of robots.

Packaging and Conveyor Line Control Terminal

The on-site station has functions such as start stop, alarm reset, and operation mode conversion.

Customized interface module for equipment panel

Embedded into the device casing of OEM customers, serving as the human-machine interface component for the main control system.

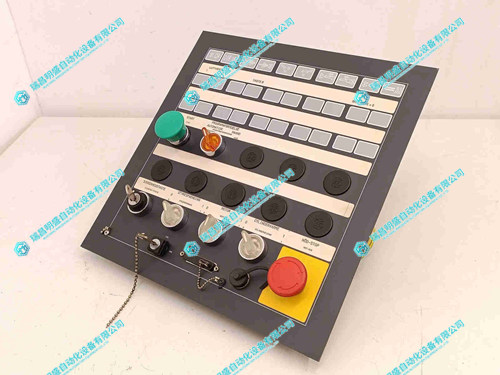

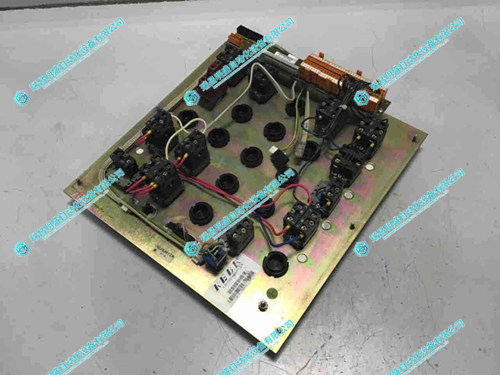

2.产      品      展      示
