1.产 品 资 料 介 绍：

KEBA 3HAC023195-001/04 是专为 ABB IRC5 机器人控制器设计的工业级教学吊坠（Teach Pendant）。该吊坠集成了触摸屏和多功能按键，支持机器人编程、调试及手动操作，是机器人系统人机交互的重要终端。

技术参数（简要）：

• 型号：3HAC023195-001/04（KEBA SX TPU2 16/64）

• 显示屏：6.4 英寸 TFT 彩色触摸屏，分辨率 640×480

• 按键：16 个软键 + 64 个膜片按键

• 紧急停止：内置紧急停止按钮，符合工业安全标准

• 通信协议：支持 EtherCAT，确保高速数据交换

• 防护等级：IP65，适应工业恶劣环境

• 功耗：约 5W，支持长时间连续使用

• 设计：手持式，支持旋转显示，便于操作

应用领域：

1. 机器人编程与调试
   用于 ABB IRC5 机器人系统的路径编程、运动调试和参数设置。

2. 现场操作与维护
   操作员通过吊坠进行手动控制、设备监控及故障排查。

3. 自动化生产线
   作为机器人系统的人机交互界面，提升生产效率和安全性。

产品优势：

• 高集成触摸屏与按键，操作灵活，界面友好

• 符合工业安全标准，内置紧急停止确保操作安全

• 支持高速 EtherCAT 通信，实时数据交换稳定可靠

• 坚固耐用，防护等级高，适应多种工业环境

• 便携设计，操作舒适，适合长时间使用

英文资料：

KEBA 3HAC023195-001/04 is an industrial grade teaching pendant designed specifically for ABB IRC5 robot controllers. This pendant integrates a touch screen and multifunctional buttons, supports robot programming, debugging, and manual operation, and is an important terminal for human-machine interaction in robot systems.

Technical parameters (brief):

Model: 3HAC023195-001/04 (KEBA SX TPU2 16/64)

Display screen: 6.4-inch TFT color touch screen, resolution 640 × 480

Button: 16 soft keys+64 membrane buttons

Emergency stop: Built in emergency stop button, in compliance with industrial safety standards

Communication protocol: Supports EtherCAT to ensure high-speed data exchange

Protection level: IP65, suitable for harsh industrial environments

Power consumption: about 5W, supports long-term continuous use

Design: Handheld, supports rotating display, easy to operate

Application areas:

Robot programming and debugging

Used for path programming, motion debugging, and parameter setting of ABB IRC5 robot system.

On site operation and maintenance

The operator uses the pendant for manual control, equipment monitoring, and troubleshooting.

Automatic production line

As a human-machine interaction interface for robot systems, it enhances production efficiency and safety.

Product advantages:

Highly integrated touch screen and buttons, flexible operation, user-friendly interface

Compliant with industrial safety standards, with built-in emergency stop to ensure safe operation

Support high-speed EtherCAT communication, stable and reliable real-time data exchange

Durable and sturdy, with high protection level, suitable for various industrial environments

Portable design, comfortable operation, suitable for long-term use

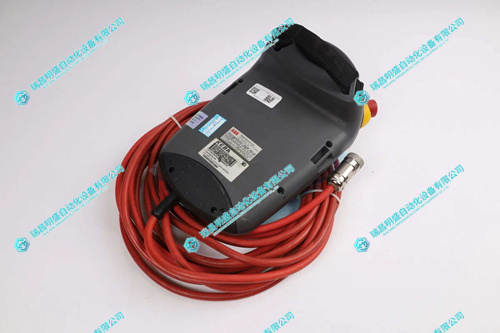

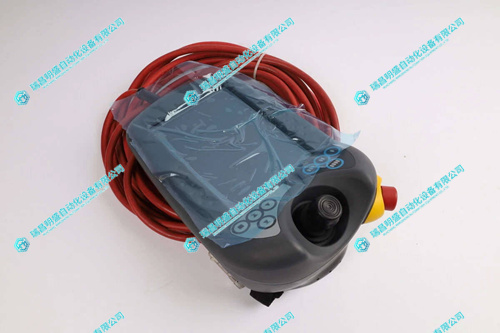

2.产      品      展      示
