PCS105PS-400电源模块

PCS105PS-400电源模块

1.产 品 资 料 介 绍：

PCS105PS-400电源模块产品特点

1.  额定功率105kW，峰值功率可达116kW，具备110%长期过载能力，满足短时高负载场景需求。

2.  采用三电平拓扑结构，电能转换效率高达98.5%，大幅降低能量损耗，提升系统能效。

3.  支持交直流双向变换，可实现交流电转直流电充电、直流电转交流电供电/并网双重功能。

直流侧电压适配范围宽，覆盖615~950V（三相三线）/650~950V（三相四线），兼容多类型电池。

5.  交流侧额定电压400Vac，电压波动适应范围±15%，频率支持50/60Hz±10%，适配不同电网环境。

6.  功率因数可达±1~1，电流畸变率＜3%（额定功率），输出电能质量优异，符合电网接入标准。

7.  支持并离网无缝切换，搭配STS可提供不间断后备电源，保障关键负载持续供电。

8.  具备低/高电压穿越能力，电网电压异常时不轻易脱网，强化电网运行稳定性。

9.  集成完善保护功能，涵盖过欠压、过载、过流、短路、过温等，且具备孤岛检测能力。

10. 支持多模块并联扩容，最多12台并机可组成1.2MW系统，适配中大型储能项目需求。

11. 配备CAN/RS485/以太网多通讯接口，可与BMS、EMS及上层监控系统高效联动。

12. 采用智能风冷散热设计，工作温度适应范围-30℃~55℃，海拔4000m内可稳定运行（超2000m降额）。

13. 防护等级达IP20，外壳选用高强度材质，抗电磁干扰能力强，适应复杂工业环境。

14. 支持前接线/后接线两种方式，结构紧凑（尺寸可选），便于现场安装与维护。

15. 支持本地手动、本地自动、远程控制三种模式，操作灵活，适配不同运维场景。

PCS105PS-400电源模块 英文资料：

Product features of PCS105PS-400 power module

1. The rated power is 105kW, and the peak power can reach 116kW, with a long-term overload capacity of 110%, meeting the requirements of short-term high load scenarios.

2. Adopting a three-level topology structure, the energy conversion efficiency is as high as 98.5%, significantly reducing energy loss and improving system energy efficiency.

3. Supports bidirectional conversion between AC and DC, enabling dual functions of AC to DC charging and DC to AC power supply/grid connection.

The DC side voltage adaptation range is wide, covering 615-950V (three-phase three wire)/650-950V (three-phase four wire), compatible with multiple types of batteries.

5. The rated voltage on the AC side is 400Vac, with a voltage fluctuation range of ± 15% and a frequency support of 50/60Hz ± 10%, suitable for different power grid environments.

6. The power factor can reach ± 1~1, the current distortion rate is less than 3% (rated power), the output power quality is excellent, and it meets the grid access standards.

7. Support seamless off grid switching, coupled with STS to provide uninterrupted backup power supply, ensuring continuous power supply for critical loads.

8. It has the ability to ride through low/high voltage, and is not easily disconnected from the power grid when the voltage is abnormal, enhancing the stability of power grid operation.

9. Integrate and improve protection functions, covering overvoltage, undervoltage, overload, overcurrent, short circuit, overheating, etc., and have islanding detection capability.

10. Support multi module parallel expansion, up to 12 parallel units can form a 1.2MW system, suitable for the needs of medium and large-scale energy storage projects.

11. Equipped with CAN/RS485/Ethernet multiple communication interfaces, it can efficiently link with BMS, EMS, and upper level monitoring systems.

12. Adopting intelligent air-cooled heat dissipation design, the working temperature adaptability range is -30 ℃~55 ℃, and it can operate stably within an altitude of 4000m (with derating beyond 2000m).

13. The protection level reaches IP20, and the shell is made of high-strength materials with strong electromagnetic interference resistance, suitable for complex industrial environments.

14. Supports both front and rear wiring methods, with a compact structure (optional size) for easy on-site installation and maintenance.

15. Supports three modes: local manual, local automatic, and remote control, with flexible operation and adaptability to different operation and maintenance scenarios.

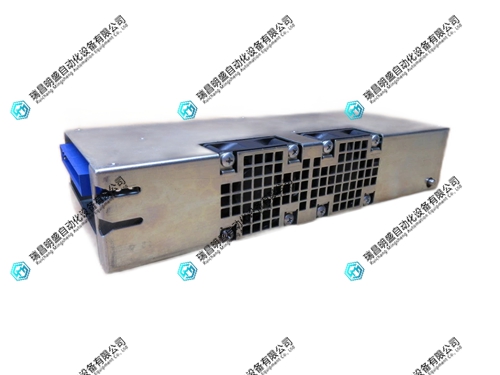

PCS105PS-400电源模块  产品展示

产品视频
