1746-BAS-T模拟输出模块

1.产 品 资 料 介 绍：

1746-BAS-T 模块介绍

1. 属于 SLC 500 系列可编程智能处理模块，搭载 BASIC 语言编程环境
2. 核心功能为执行自定义运算、数据处理、串口通讯及协议转换
3. 配备 24KB 电池备份 RAM，支持程序与数据掉电保存
4. 内置实时日历时钟，可提供时间戳与定时功能
5. 具备三路通讯端口，支持 RS-232/422/485 及 DH-485 网络
6. 双隔离串口可连接仪表、条码枪、变频器等第三方设备
7. 与 SLC 主 CPU 通过数据字进行双向数据交互
8. 板载多个 LED 指示灯，实时显示运行、故障、通讯状态
9. 采用电气隔离设计，有效提升工业环境抗干扰能力
10. 安装于 SLC 500 标准 1746 机架插槽，适配多种 CPU 型号
11. 背板功耗低，适合长期稳定运行
12. 工作温度范围满足工业现场恶劣环境要求
13. 可通过串口进行程序下载、在线监控与调试
14. 该型号已停产，市场以二手、翻新及维修备件为主
15. 如需模拟输出功能，应选用 SLC 500 专用模拟量输出模块

1746-BAS-T模拟输出模块 英文资料：

1746-BAS-T module introduction

1746-BAS-T is a BASIC language intelligent module of the Rockwell Allen Bradley SLC 500 series, not an analog output module. The following is a detailed introduction:

Belonging to the SLC 500 series programmable intelligent processing module, equipped with BASIC programming environment

The core functions include performing custom operations, data processing, serial communication, and protocol conversion

Equipped with 24KB battery backup RAM, supporting program and data power-off saving

Built in real-time calendar clock, providing timestamp and timing functions

Equipped with three communication ports, supporting RS-232/422/485 and DH-485 networks

Dual isolation serial port can connect third-party devices such as instruments, barcode guns, frequency converters, etc

Bidirectional data exchange with SLC main CPU through data words

Multiple LED indicator lights on board, displaying real-time operation, fault, and communication status

Adopting electrical isolation design to effectively enhance the anti-interference ability of industrial environment

Installed in SLC 500 standard 1746 rack slot, compatible with multiple CPU models

Low backplane power consumption, suitable for long-term stable operation

The working temperature range meets the requirements of harsh environments in industrial sites

Program download, online monitoring, and debugging can be performed through serial port

This model has been discontinued, and the market is dominated by second-hand, refurbished, and repair spare parts

If analog output function is required, SLC 500 dedicated analog output module should be selected

In summary, 1746-BAS-T is an intelligent co processing module of SLC 500 system, focusing on complex logic and communication expansion, and does not have analog output function. The actual selection needs to match the corresponding I/O module according to control requirements.

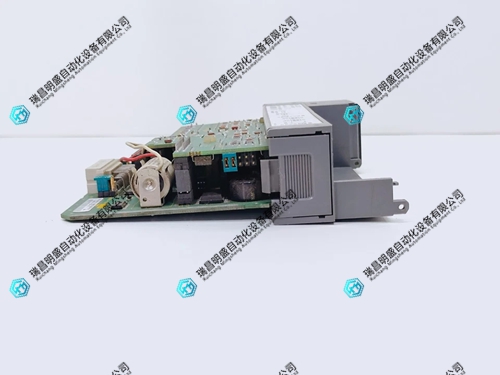

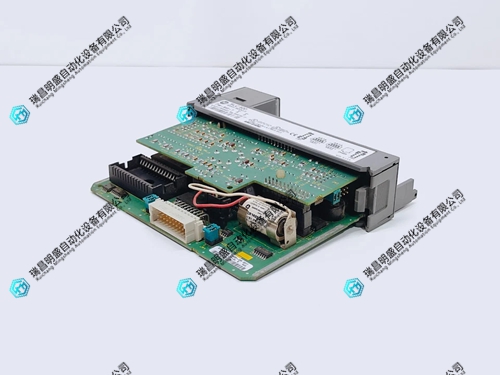

1746-BAS-T模拟输出模块 产品展示
