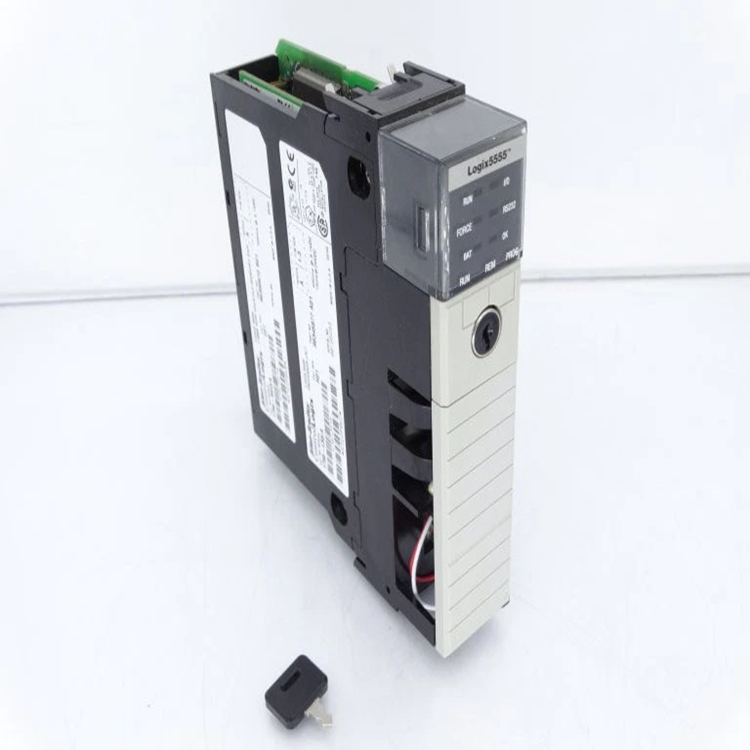

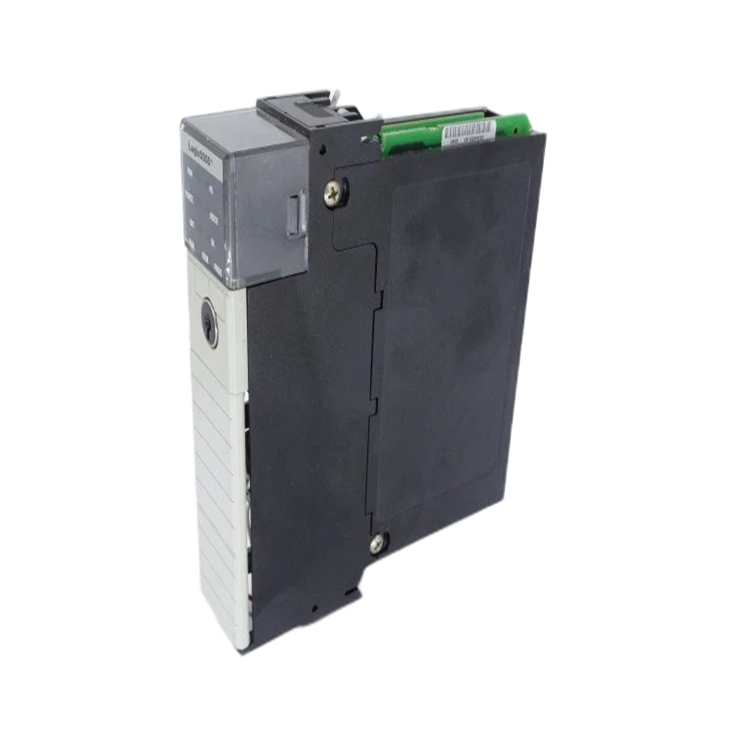

1756-L55M23 CPU处理器

1756-L55M23 CPU处理器

1.产 品 资 料 介 绍：

1. 型号全称 1756-L55M23，属罗克韦尔 ControlLogix 系列，为预集成内存的完整 CPU 模块。
2. 处理器为 100 MHz PowerPC 架构，双 CPU 分工（主 CPU + 背板 CPU），运算效率高。
3. 内置1.5 MB RAM（用户程序 / 数据）+ 1.5 MB 非易失性内存，无需额外配内存卡。
4. 布尔指令执行速度0.08 µs，程序扫描快，适合高速控制场景。
5. 标配 RS-232 串口，支持 DF1、ASCII、Modbus RTU 等协议。
6. 支持 EtherNet/IP、ControlNet、DeviceNet 主流工业总线，可做 CIP 标签共享。
7. 兼容 Studio 5000（原 RSLogix 5000），支持梯形图、ST、FBD、SFC 编程。
8. 支持128 个可配置任务（周期 / 事件 / 连续），多任务调度灵活。
9. 最大 I/O 能力：数字量约 128,000 点、模拟量 4,000 入 / 2,000 出，扩展能力强。
10. 适配标准 ControlLogix 机架，支持热插拔，在线维护便捷。
11. 背板供电：5.1V DC 1.23A、24V DC 14mA，功耗约 5.7W。
12. 配 1756-BA1 电池，断电后保持 RAM 数据与实时时钟。
13. 工作温度 0–60°C，湿度 5%–95% 无凝露，工业级 EMC 与抗震设计。
14. 支持冗余架构（需 ControlNet 网络），提升系统可用性。
15. 已停产，市场以翻新 / 备件为主，适合老系统升级与维护。

1756-L55M23 CPU处理器  英文资料：

The full name of the model is 1756-L55M23, which belongs to the Rockwell ControlLogix series and is a complete CPU module with pre integrated memory.

The processor is a 100 MHz PowerPC architecture with dual CPU division (main CPU+backplane CPU), resulting in high computational efficiency.

Built in 1.5 MB RAM (user program/data)+1.5 MB non-volatile memory, no additional memory card required.

Boolean instruction execution speed of 0.08 µ s, fast program scanning, suitable for high-speed control scenarios.

Standard RS-232 serial port, supporting protocols such as DF1, ASCII, Modbus RTU, etc.

Supports mainstream industrial buses such as EtherNet/IP, ControlNet, and DeviceNet, and can be used for CIP tag sharing.

Compatible with Studio 5000 (formerly RSLogix 5000), supporting ladder diagram, ST, FBD, SFC programming.

Supports 128 configurable tasks (cycle/event/continuous), with flexible multitasking scheduling.

Maximum I/O capacity: Approximately 128000 digital points, 4000 analog inputs/2000 outputs, with strong scalability.

Compatible with standard ControlLogix racks, supports hot swapping, and is easy to maintain online.

Backboard power supply: 5.1V DC 1.23A, 24V DC 14mA, with a power consumption of approximately 5.7W.

Equipped with 1756-BA1 battery, maintain RAM data and real-time clock after power failure.

Working temperature 0-60 ° C, humidity 5% -95%, no condensation, industrial grade EMC and seismic design.

Support redundant architecture (requiring ControlNet network) to enhance system availability.

Discontinued production, the market mainly focuses on refurbishment/spare parts, suitable for upgrading and maintaining old systems.

1756-L55M23 is an integrated memory version of 1756-L55, which is ready to use and has stable performance. It is a classic controller for medium and large-scale automation systems (automotive, chemical, metallurgical, packaging, water treatment), especially suitable for existing equipment maintenance and renovation projects.
