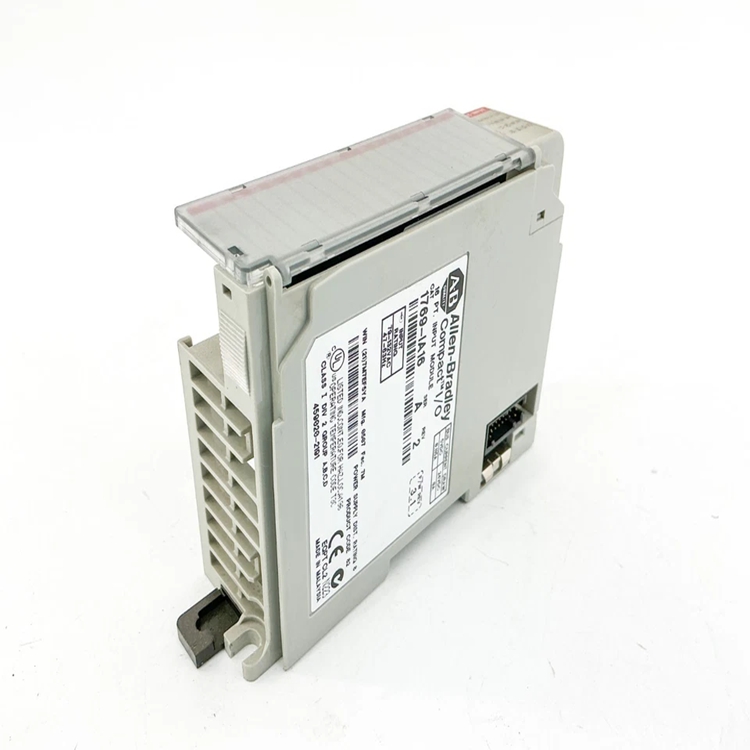

1769-IA16 输入模块

1.产 品 资 料 介 绍：

1769-IA16 输入模块核心介绍

1. 型号为 1769-IA16，属于罗克韦尔 Compact I/O 系列 16 点交流数字量输入模块。
2. 主要用于采集现场 120V AC 交流开关、按钮及传感器信号。
3. 额定输入电压 100/120V AC，工作电压范围 79–132V AC。
4. 输入频率支持 47–63Hz，适配工业标准工频电源。
5. 单模块共 16 路输入通道，采用分组式内部共地结构。
6. 输入导通电流 5–12mA，关断漏电流不超过 2.5mA。
7. 输入响应时间为 20ms，满足常规工业控制响应要求。
8. 通道与背板之间具备电气隔离，绝缘耐压性能满足工业安全标准。
9. 采用背板 5V DC 供电，功耗低、运行稳定。
10. 每个通道配备独立 LED 指示灯，直观显示通断状态。
11. 使用可拆卸式端子块，接线方便，便于维护与更换。
12. 支持 DIN 导轨安装与面板安装，适配标准电控柜布局。
13. 兼容 CompactLogix、Compact GuardLogix 及 MicroLogix 1500 控制器。
14. 工作温度 0–60°C，适应各类工业现场环境。
15. 通过 CE、UL 等多项工业认证，可靠性与安全性有保障。

1769-IA16 输入模块  英文资料：

Introduction to the Core of 1769-IA16 Input Module

The model number is 1769-IA16, belonging to the Rockwell Compact I/O series 16 point AC digital input module.

Mainly used to collect signals from on-site 120V AC switches, buttons, and sensors.

Rated input voltage 100/120V AC, operating voltage range 79-132V AC.

The input frequency supports 47-63Hz and is compatible with industrial standard power supply.

The single module has a total of 16 input channels and adopts a grouped internal common ground structure.

Input conduction current of 5-12mA, turn off leakage current not exceeding 2.5mA.

The input response time is 20ms, which meets the requirements of conventional industrial control response.

There is electrical isolation between the channel and the backplane, and the insulation and voltage resistance meet industrial safety standards.

Powered by a 5V DC backplane, it has low power consumption and stable operation.

Each channel is equipped with independent LED indicator lights to visually display the on/off status.

Use detachable terminal blocks for easy wiring, maintenance, and replacement.

Supports DIN rail installation and panel installation, compatible with standard electrical control cabinet layout.

Compatible with CompactLogix, Compact GuardLogix, and MicroLogix 1500 controllers.

Working temperature range of 0-60 ° C, suitable for various industrial site environments.

Through multiple industrial certifications such as CE and UL, reliability and safety are guaranteed.

The above are the complete core parameters of the 1769-IA16 input module, which are applicable for product introduction, technical selection, and project data writing.
