1771-IQC输入模块

1.产 品 资 料 介 绍：

1771-IQC 数字输入模块核心介绍

1. 型号：1771-IQC，PLC-5 系列 8 点直流数字输入模块。
2. 输入类型：8 通道 5–30V DC 离散输入，可通过拨码开关（SW1/SW3）切换源型 / 漏型接法。
3. 电压规格：额定 5–30V DC，适配工业标准直流传感器与开关信号。
4. 输入特性：导通电压≥40% 额定值，关断电压≤20% 额定值；输入阻抗 1.2kΩ。
5. 响应时间：标准模式典型 12ms（5–26ms）；SW1 设为 OFF 时，快速模式最大 1ms。
6. 隔离保护：通道与背板电气隔离，耐压 1500V DC，满足工业安全标准。
7. 供电功耗：背板 5V DC 供电，最大电流 150mA；满负载功耗约 6.8W。
8. 物理安装：占用 1 个 1771 机架槽位，支持机架安装，配 1771-WC 接线臂。
9. 状态指示：每通道独立 LED，实时显示输入通断状态。
10. 兼容平台：适配 PLC-5/11、PLC-5/20、PLC-5/30、PLC-5/40、PLC-5/80 等控制器。
11. 环境参数：工作温度 0–60°C，湿度 5%–95% 无凝露，工业级抗干扰设计。
12. 认证合规：通过 UL、CE 等工业安全与 EMC 认证。
13. 应用场景：机床、自动化产线、物料输送、包装设备等直流信号采集场景。
14. 产品状态：已停产，市场以翻新 / 备件为主，用于 PLC-5 老系统维护。

1771-IQC输入模块   英文资料：

1771-IQC Digital Input Module Core Introduction

1771-IQC is an 8-channel 5-30V DC configurable digital input module of the Rockwell PLC-5 series, supporting source/drain switching, designed specifically for industrial field DC switch and sensor signal acquisition, compatible with 1771 standard I/O rack.

Model: 1771-IQC, PLC-5 series 8-point DC digital input module.

Input type: 8-channel 5-30V DC discrete input, can be switched between source/drain connections through dip switches (SW1/SW3).

Voltage specification: Rated 5-30V DC, compatible with industrial standard DC sensors and switch signals.

Input characteristics: turn-on voltage ≥ 40% of rated value, turn off voltage ≤ 20% of rated value; Input impedance of 1.2k Ω.

Response time: Standard mode typically 12ms (5-26ms); When SW1 is set to OFF, the maximum time for fast mode is 1ms.

Isolation protection: The channel and backplane are electrically isolated, with a withstand voltage of 1500V DC, meeting industrial safety standards.

Power consumption: The backplane is powered by 5V DC, with a maximum current of 150mA; the full load power consumption is about 6.8W.

Physical installation: occupying one 1771 rack slot, supporting rack installation, equipped with 1771-WC wiring arm.

Status indication: Each channel has independent LEDs that display real-time input on/off status.

Compatible platform: compatible with PLC-5/11, PLC-5/20, PLC-5/30, PLC-5/40, PLC-5/80 and other controllers.

Environmental parameters: working temperature 0-60 ° C, humidity 5% -95%, no condensation, industrial grade anti-interference design.

Certification compliance: Passed industrial safety and EMC certifications such as UL and CE.

Application scenarios: DC signal acquisition scenarios for machine tools, automated production lines, material conveying, packaging equipment, etc.

Product status: discontinued, mainly for refurbishment/spare parts in the market, used for maintenance of PLC-5 old systems.

1771-IQC is a classic module for DC digital signal access in PLC-5 systems, characterized by flexible configuration, fast response, and high isolation. It is suitable for upgrading and maintaining old industrial control systems that require compatibility with different wiring methods.

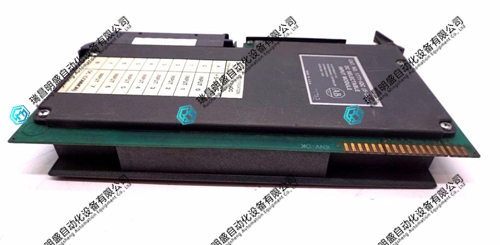

1771-IQC输入模块  产品展示
