1771-OAD交流输出模块

1.产 品 资 料 介 绍：

1771-OAD 交流输出模块核心介绍

1. 型号：1771-OAD，PLC-5 系列 16 通道交流数字输出模块。
2. 输出类型：16 点离散 AC 输出，单通道独立熔断保护。
3. 电压规格：额定 10–138V AC，频率 47–63Hz，适配工业标准工频。
4. 输出电流：单通道最大 2A，模块总连续电流≤8A。
5. 触发方式：过零触发，50Hz 时导通延迟 10ms，60Hz 时 8.3ms，降低电流冲击。
6. 隔离保护：通道与背板光电隔离，耐压 1500V DC，内置 MOV 与 RC 浪涌抑制。
7. 供电功耗：背板 5V DC 供电，电流 295mA，功耗约 1.475W。
8. 物理安装：占用 1 个 1771 机架槽位，配 1771-WH 标准接线臂。
9. 状态指示：每通道独立 LED，显示输出通断与熔断状态。
10. 兼容平台：适配 1771-A1B/A2B/A3B/A4B、AM1/AM2 机箱，PLC-5 全系列控制器。
11. 环境参数：工作温度 0–60°C，湿度 5%–95% 无凝露，工业级抗干扰。
12. 认证合规：通过 UL、CE 等工业安全与 EMC 认证。
13. 应用场景：机床、包装、物料输送、暖通等交流负载控制场景。
14. 产品状态：已停产，市场以翻新 / 备件为主，用于 PLC-5 老系统维护。

1771-OAD交流输出模块     英文资料：

Introduction to the Core of 1771-OAD AC Output Module

1771-OAD is a 16-point 10-138V AC digital output module of the Rockwell PLC-5 series, which uses zero crossing triggering technology and is designed specifically for driving AC loads such as contactors, solenoid valves, indicator lights, etc. It is compatible with the 1771 standard I/O rack.

Model: 1771-OAD, PLC-5 series 16 channel AC digital output module.

Output type: 16 point discrete AC output, single channel independent fuse protection.

Voltage specifications: rated 10-138V AC, frequency 47-63Hz, compatible with industrial standard power frequency.

Output current: Single channel maximum 2A, module total continuous current ≤ 8A.

Trigger method: Zero crossing trigger, conduction delay of 10ms at 50Hz, 8.3ms at 60Hz, to reduce current surge.

Isolation protection: Channel and backplane are optically isolated, with a withstand voltage of 1500V DC and built-in MOV and RC surge suppression.

Power consumption: The backplane is powered by 5V DC, with a current of 295mA and a power consumption of approximately 1.475W.

Physical installation: occupying one 1771 rack slot, equipped with 1771-WH standard wiring arm.

Status indication: Each channel has an independent LED that displays the on/off and fuse status of the output.

Compatible platform: Suitable for 1771-A1B/A2B/A3B/A4B, AM1/AM2 chassis, PLC-5 full series controllers.

Environmental parameters: working temperature 0-60 ° C, humidity 5% -95%, no condensation, industrial grade anti-interference.

Certification compliance: Passed industrial safety and EMC certifications such as UL and CE.

Application scenarios: AC load control scenarios such as machine tools, packaging, material conveying, HVAC, etc.

Product status: discontinued, mainly for refurbishment/spare parts in the market, used for maintenance of PLC-5 old systems.

1771-OAD is a classic module driven by AC actuators in PLC-5 systems, characterized by high density, high power, zero crossing triggering, and strong anti-interference. It is suitable for stable operation and maintenance of old industrial control systems.

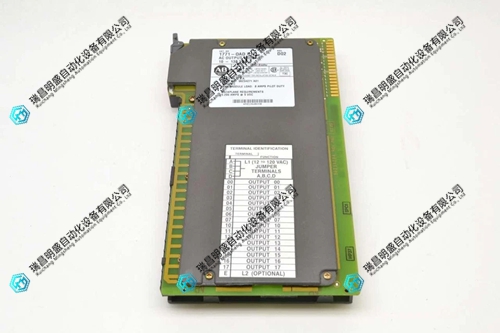

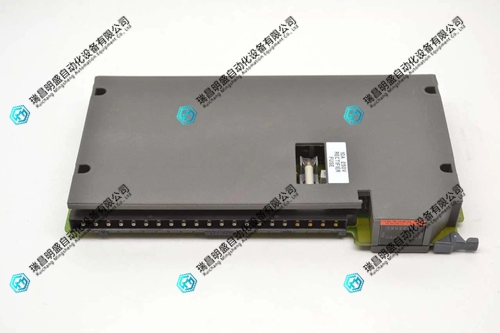

1771-OAD交流输出模块    产品展示
