1771-OD16隔离输出模块

1.产 品 资 料 介 绍：

1771-OD16 隔离输出模块核心介绍

1. 型号为 1771-OD16，属于罗克韦尔 PLC-5 系列 16 通道隔离交流输出模块。
2. 采用固态双向可控硅输出，支持过零触发，有效降低电流冲击。
3. 额定工作电压 120V AC，适用范围 74–138V AC，频率 47–63Hz。
4. 单通道最大连续输出电流 2A，模块总电流不超过 8A。
5. 具备通道间及通道与背板电气隔离，绝缘性能强，安全性高。
6. 内置浪涌抑制保护电路，提升模块抗干扰与使用寿命。
7. 关断状态漏电流小，避免小功率负载误触发问题。
8. 每个通道配备独立 LED 指示灯，实时显示输出状态。
9. 设有运行指示灯与熔断报警指示灯，方便故障诊断。
10. 采用背板 5V DC 供电，功耗低，运行稳定可靠。
11. 占用 1 个 1771 标准机架槽位，安装布局紧凑。
12. 配套专用接线臂，接线规范，维护方便。
13. 兼容 PLC-5 全系列控制器及 1771 系列机架。
14. 工作温度 0–60°C，适应各类工业现场环境。
15. 通过 UL、CE 等工业认证，适用于对隔离要求较高的控制系统。

1771-OD16隔离输出模块   英文资料：

Introduction to the Core of 1771-OD16 Isolation Output Module

The model is 1771-OD16, belonging to the Rockwell PLC-5 series 16 channel isolated AC output module.

Adopting solid-state bidirectional thyristor output, supporting zero crossing triggering, effectively reducing current surge.

Rated working voltage 120V AC, applicable range 74-138V AC, frequency 47-63Hz.

The maximum continuous output current of a single channel is 2A, and the total current of the module does not exceed 8A.

Equipped with electrical isolation between channels and between channels and backboards, with strong insulation performance and high safety.

Built in surge suppression protection circuit enhances module anti-interference and service life.

The off state has low leakage current, avoiding the problem of accidental triggering of low-power loads.

Each channel is equipped with independent LED indicator lights to display the output status in real-time.

Equipped with operation indicator lights and fuse alarm indicator lights for easy fault diagnosis.

Powered by a 5V DC backplane, it has low power consumption and stable and reliable operation.

Occupying one 1771 standard rack slot, the installation layout is compact.

Equipped with dedicated wiring arm, standardized wiring, and easy maintenance.

Compatible with PLC-5 full series controllers and 1771 series racks.

Working temperature range of 0-60 ° C, suitable for various industrial site environments.

Through UL, CE and other industrial certifications, it is suitable for control systems with high isolation requirements.

The above are the complete core parameters of the 1771-OD16 isolated output module, which can be directly used for product introduction, technical documentation, and project selection reference.

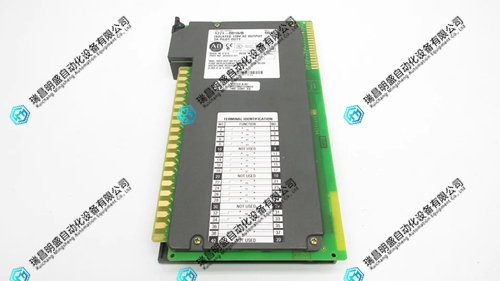

1771-OD16隔离输出模块   产品展示
