1771-OZL处理器模块

1771-OZL处理器模块

1.产 品 资 料 介 绍：

1771-OZL 核心参数（纯文本、无链接）

1. 型号：1771‑OZL，PLC‑5 系列 8 通道干簧继电器输出模块。
2. 输出类型：8 路常开（N.O.）干簧继电器触点，4 组 × 2 点，每组独立公共端。
3. 电压范围：0–24V AC/DC 通用，适配低压控制回路。
4. 电流能力：单通道最大连续 100mA；最小负载 10mA（24V），避免误触发。
5. 隔离性能：触点间 / 触点‑逻辑侧 1000V AC 隔离；线圈‑触点 1500V AC 隔离。
6. 功率规格：单通道额定 2.4W；严禁浪涌冲击，否则易损坏干簧管。
7. 供电与功耗：背板 5V DC 供电，电流 420mA；功耗约 2.1W。
8. 状态指示：8 路独立 LED，显示输出通断状态。
9. 物理安装：占用 1 个 1771 机架槽位，配 1771‑WH 接线臂。
10. 兼容平台：适配 1771‑A1B/A2B/A3B/A4B 机箱，PLC‑5 全系列控制器。
11. 环境参数：工作温度 0–60°C，湿度 5%–95% 无凝露。
12. 认证合规：UL、CE 工业安全与 EMC 认证。
13. 应用场景：仪器仪表、传感器、小型电磁阀、指示灯、安全回路等低压隔离控制。
14. 产品状态：已停产，市场以翻新 / 备件为主，用于 PLC‑5 老系统维护。

1771-OZL处理器模块  英文资料：

1771-OZL is not a processor module, but an 8-point reed relay isolation output module from the Rockwell Allen Bradley PLC-5 series, designed specifically for low voltage, low power, and strong isolation industrial scenarios.

1771-OZL core parameters (plain text, no links)

Model: 1771-OZL, PLC-5 series 8-channel reed relay output module.

Output type: 8-way normally open (N.O.) reed relay contacts, 4 sets x 2 points, each set independent common terminal.

Voltage range: 0-24V AC/DC universal, suitable for low-voltage control circuits.

Current capability: Single channel maximum continuous 100mA; minimum load 10mA (24V) to avoid false triggering.

Isolation performance: 1000V AC isolation between contacts/contacts logic side; Coil contact 1500V AC isolation.

Power specification: Single channel rated 2.4W; surge impact is strictly prohibited, otherwise it may damage the reed switch.

Power supply and power consumption: The backplane is powered by 5V DC, with a current of 420mA and a power consumption of approximately 2.1W.

Status indication: 8 independent LEDs display the on/off status of the output.

Physical installation: occupying one 1771 rack slot, equipped with 1771-WH wiring arm.

Compatible platform: Suitable for 1771-A1B/A2B/A3B/A4B chassis, PLC-5 full series controllers.

Environmental parameters: working temperature 0-60 ° C, humidity 5% -95%, no condensation.

Certification compliance: UL, CE industrial safety and EMC certification.

Application scenarios: Low voltage isolation control for instruments, sensors, small solenoid valves, indicator lights, safety circuits, etc.

Product status: discontinued, mainly for refurbishment/spare parts in the market, used for maintenance of PLC-5 old systems.

1771-OZL has the core advantages of full isolation, reed tube sealing, low voltage and low power, and anti-interference, making it suitable for old PLC-5 systems with high requirements for isolation and reliability.

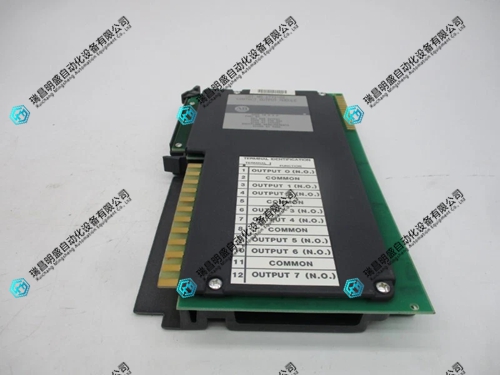

1771-OZL处理器模块  产品展示
