1.产 品 资 料 介 绍：
6189-RDT10C 触摸屏面板
- 品牌归属：罗克韦尔自动化 Allen‑Bradley，VersaView CE 1000 系列。
- 屏幕规格：10.4 英寸 TFT 彩色液晶，分辨率 640×480。
- 触控类型：模拟电阻式触摸屏，支持手指、手写笔操作，戴手套可用。
- 供电要求：标准 24V DC 工业供电，适配现场电源环境。
- 工作温度：-20℃至 60℃宽温范围，适应严苛工业现场。
- 安装方式：嵌入式安装，标准开孔尺寸适配工业机柜。
- 安装间隙：顶部 / 底部预留 51mm、侧边 25mm 通风间隙，保障散热。
- 系统兼容：无缝对接罗克韦尔 PLC 与自动化控制系统。
- 通信适配：支持工业以太网、串口等主流通信协议。
- 防护等级：前面板工业级防护，防尘抗污，适配车间环境。
- 应用场景：用于工业监控、参数设置、设备操作、数据可视化。
- 产品状态：已停产，但仍广泛用于存量自动化系统升级维护。
- 配套模块：可搭配 6189-RPRH 逻辑模块，组成完整人机交互终端。
6189-RDT10C 触摸屏面板 英文资料：
6189-RDT10C touch screen panel
6189-RDT10C is an Allen Bradley VersaView CE 1000 series 10.4-inch industrial color touch screen module designed specifically for human-machine interaction in industrial fields, compatible with Rockwell Automation control systems, and stable and reliable.
Brand affiliation: Rockwell Automation Allen Bradley, VersaView CE 1000 series.
Screen specifications: 10.4-inch TFT color LCD with a resolution of 640 × 480.
Touch type: Analog resistive touch screen, supports finger and stylus operation, can be used with gloves.
Power supply requirements: Standard 24V DC industrial power supply, suitable for on-site power environment.
Working temperature: wide temperature range of -20 ℃ to 60 ℃, suitable for harsh industrial sites.
Installation method: Embedded installation, standard hole size suitable for industrial cabinets.
Installation gap: Reserve a ventilation gap of 51mm at the top/bottom and 25mm on the side to ensure heat dissipation.
System compatibility: seamlessly integrate Rockwell PLC with automation control systems.
Communication adaptation: Supports mainstream communication protocols such as industrial Ethernet and serial ports.
Protection level: Industrial grade protection for the front panel, dust and dirt resistance, suitable for workshop environment.
Application scenarios: Used for industrial monitoring, parameter setting, equipment operation, and data visualization.
Product status: discontinued, but still widely used for upgrading and maintaining existing automation systems.
Supporting module: It can be paired with 6189-RPRH logic module to form a complete human-machine interaction terminal.
6189-RDT10C, with stable industrial grade performance and mature compatibility, is a reliable human-machine interaction core component in existing industrial automation systems.

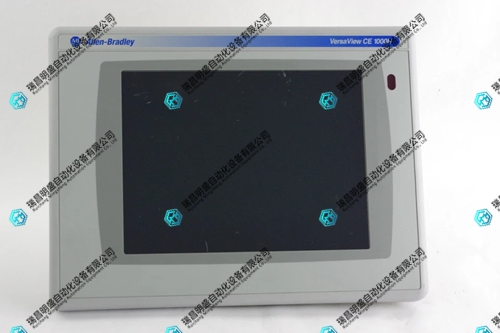

6189-RDT10C 触摸屏面板 产品展示
