IMDSI02数字输入模块

IMDSI02数字输入模块

1.产 品 资 料 介 绍：

IMDSI02数字输入模块产品特点（15条）

1. 配备8路独立数字输入通道，支持4-20mA电流、0-10V电压信号采集，适配多类型传感器。

2. 采用16位高精度转换芯片，信号采集精度达±0.1%，可捕捉微小信号波动。

3. 每通道独立光电隔离设计，隔离电压达2500V AC，强效抵御工业现场电磁干扰。

4. 兼容Modbus RTU/TCP、PROFIBUS DP双协议，无缝对接主流PLC/DCS控制系统。

5. 宽温工作范围覆盖-20℃至70℃，耐受高低温交替工况，适配冶金、石化场景。

6. 支持热插拔功能，系统不停机状态下可更换模块，保障生产连续性。

7. 内置通道级故障自检功能，可精准识别短路、过载、断线故障，便于快速排查。

8. 防护等级达IP20，搭配塑料外壳，防尘防潮，适配工业控制柜内安装环境。

9. 模块化卡件结构，兼容ABB贝利INFI 90系列机架，安装适配性强。

10. 内置多色LED指示灯，实时显示模块运行状态及各通道信号状态，可视化运维更高效。

11. 支持固件在线更新，无需拆卸模块即可优化功能，降低维护成本。

12. 采用24V DC额定电源供电，支持双路电源冗余输入，提升运行稳定性。

13. 工艺侧采用插孔板连接方式，接线便捷牢固，减少接触不良隐患。

14. 信号响应时间＜100ms，可快速反馈现场信号变化，满足高速控制需求。

15. 符合CE认证标准，严苛遵循工业安全规范，适用于高要求工业自动化场景。

IMDSI02数字输入模块  英文资料：

IMDSI02 Digital Input Module Product Features (15)

1. Equipped with 8 independent digital input channels, supporting 4-20mA current and 0-10V voltage signal acquisition, suitable for multiple types of sensors.

2. Adopting a 16 bit high-precision conversion chip, the signal acquisition accuracy reaches ± 0.1%, which can capture small signal fluctuations.

3. Each channel is designed with independent optoelectronic isolation, with an isolation voltage of up to 2500V AC, effectively resisting electromagnetic interference in industrial sites.

4. Compatible with Modbus RTU/TCP and PROFIBUS DP dual protocols, seamlessly integrating with mainstream PLC/DCS control systems.

5. The wide temperature working range covers -20 ℃ to 70 ℃, and can withstand alternating high and low temperature working conditions, suitable for metallurgical and petrochemical scenarios.

6. Support hot swapping function, modules can be replaced without system shutdown, ensuring production continuity.

7. Built in channel level fault self checking function, which can accurately identify short circuit, overload, and disconnection faults, making it easy to quickly troubleshoot.

8. The protection level reaches IP20, matched with a plastic shell, dustproof and moisture-proof, suitable for installation environment inside industrial control cabinets.

9. Modular card structure, compatible with ABB Beli INFI 90 series racks, with strong installation adaptability.

10. Built in multi-color LED indicator lights, real-time display of module operation status and signal status of each channel, visual operation and maintenance are more efficient.

11. Support firmware online updates, optimize functions without disassembling modules, and reduce maintenance costs.

12. Powered by a 24V DC rated power supply, it supports dual redundant power inputs to enhance operational stability.

13. The process side adopts a socket board connection method, which is convenient and firm in wiring, reducing the risk of poor contact.

14. The signal response time is less than 100ms, which can quickly provide feedback on on-site signal changes and meet high-speed control requirements.

15. Compliant with CE certification standards, strictly following industrial safety regulations, suitable for high demand industrial automation scenarios.

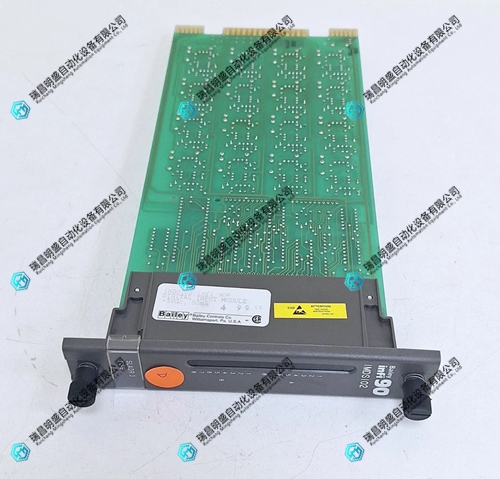

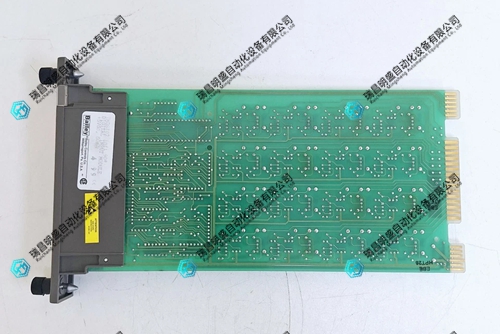

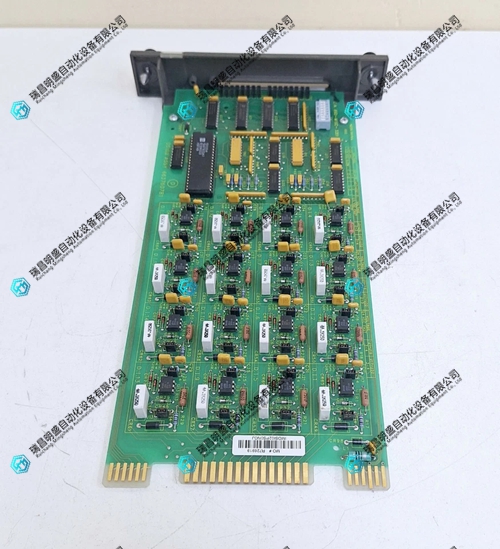

IMDSI02数字输入模块  产品展示
