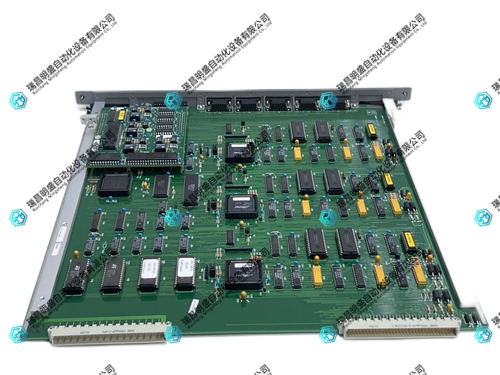

MSR04XI控制器模块

MSR04XI控制器模块

1.产 品 资 料 介 绍：

1. 具备 4 通道独立隔离输入，通道间及通道对地隔离电压达 500V AC，有效抑制工业现场干扰。
2. 支持多类型信号输入，涵盖热电偶（J、K、T、E、N、R、S、B 型）、RTD（Pt100、Pt500、Ni100）、0–20 mA、4–20 mA 及 0–10 V 信号。
3. 信号转换精度典型值为 ±0.1% F.S.，满足过程控制对信号准确性的严苛要求。
4. 每通道采样速率 ≥10 Hz，可实现快速数据采集，适配实时控制场景。
5. 由系统背板提供 +24 V DC 供电，无需额外电源模块，降低系统成本。
6. 工作温度范围 -20°C 至 +60°C，适应恶劣工业环境，保障稳定运行。
7. 采用 DIN 导轨安装方式，兼容 ABB Master I/O 机架，安装与维护便捷。
8. 通过 I/O 总线与 AC 800M、Advant Controller 等主控制器通信，兼容性强。
9. 支持通道独立配置，可通过 Control Builder M 等组态软件完成参数设定，无需硬件跳线。
10. 支持热插拔（需系统支持），可在不影响整体运行的情况下完成模块维护。
11. 内置完善诊断功能，可监测通道状态、供电情况并及时上报故障，提升系统可靠性。
12. 符合 CE、UL、IEC 61010-1、IEC 61326 等工业标准，安全与电磁兼容性达标。
13. 集成冷端补偿功能，提升热电偶信号测量精度，减少环境温度影响。
14. 工业级硬件设计，抗振、抗干扰能力强，适合 7×24 小时连续运行。
15. 体积紧凑，适配控制柜内有限空间，便于系统集成与布局。

MSR04XI控制器模块 英文资料：

ABB MSR04XI is a high-precision 4-channel independent isolated analog input module for industrial process control, model 001-1103-04-00, compatible with ABB Master series I/O systems. It can complete on-site signal acquisition, isolation, linearization, and conversion, providing highly reliable signal input for control systems.

Equipped with 4-channel independent isolated input, the inter channel and channel to ground isolation voltage reaches 500V AC, effectively suppressing interference in industrial sites.

Supports multiple types of signal inputs, including thermocouples (J, K, T, E, N, R, S, B types), RTDs (Pt100, Pt500, Ni100), 0-20 mA, 4-20 mA, and 0-10 V signals.

The typical value of signal conversion accuracy is ± 0.1% F.S., which meets the strict requirements of process control for signal accuracy.

The sampling rate of each channel is ≥ 10 Hz, which can achieve fast data acquisition and adapt to real-time control scenarios.

The system backplane provides+24 V DC power supply, eliminating the need for additional power modules and reducing system costs.

The working temperature range is -20 ° C to+60 ° C, suitable for harsh industrial environments and ensuring stable operation.

Adopting DIN rail installation method, compatible with ABB Master I/O rack, easy to install and maintain.

Communicate with main controllers such as AC 800M and Advant Controller through I/O bus, with strong compatibility.

Support independent channel configuration, parameter settings can be completed through configuration software such as Control Builder M, without the need for hardware jumpers.

Support hot plugging (system support required), module maintenance can be completed without affecting overall operation.

Built in comprehensive diagnostic function, which can monitor channel status, power supply situation and report faults in a timely manner, improving system reliability.

Complies with industrial standards such as CE, UL, IEC 61010-1, IEC 61326, and meets safety and electromagnetic compatibility standards.

Integrated cold end compensation function improves the measurement accuracy of thermocouple signals and reduces the impact of environmental temperature.

Industrial grade hardware design with strong anti vibration and anti-interference capabilities, suitable for continuous operation 24/7.

Compact in size, suitable for limited space inside the control cabinet, facilitating system integration and layout.

In summary, MSR04XI, with its multi signal compatibility, high isolation, high precision, and convenient integration characteristics, is widely used in process automation scenarios such as power generation, chemical industry, papermaking, and water treatment. It is the core module for signal acquisition and conditioning in industrial control systems.
