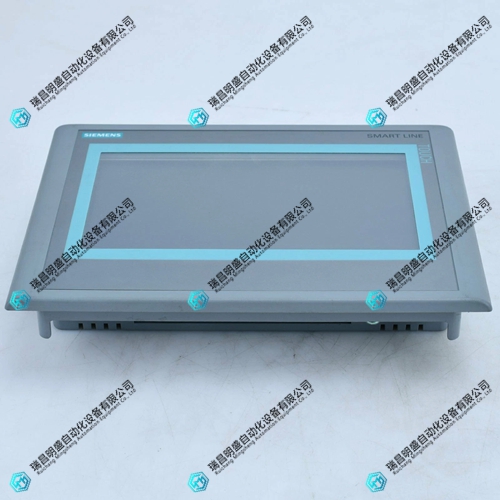

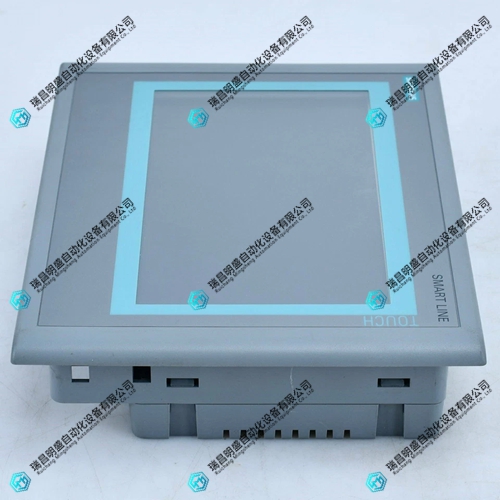

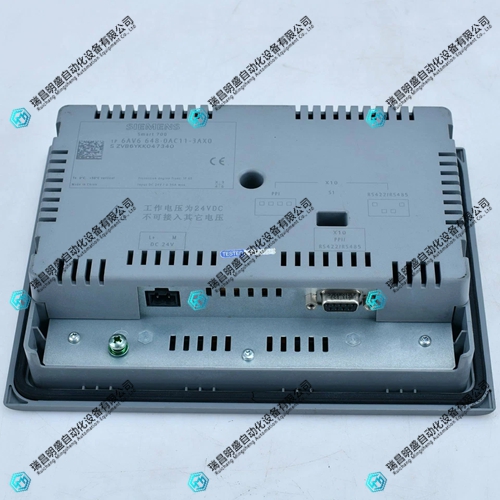

6AV6648-0AC11-3AX0操作面板

6AV6648-0AC11-3AX0操作面板

1.产 品 资 料 介 绍：

1. 型号：6AV6648-0AC11-3AX0，SIMATIC HMI SMART 700 IE V3。
2. 显示：7 寸 TFT 宽屏，800×480，256 色，LED 背光。
3. 操作：4 线电阻式触摸屏，无物理按键。
4. 性能：400MHz ARM，64MB DDR，响应快、画面流畅。
5. 通讯：以太网 RJ45、RS422/485、USB A 口。
6. 适配 PLC：西门子 S7-200、三菱 FX、欧姆龙 CP1。
7. 组态：WinCC flexible 2008 SP2 China / SMART。
8. 防护：前面 IP65、背面 IP20，防尘防水。
9. 环境：0~50℃工作，-20~60℃存储。
10. 耐用：背光寿命约 40000 小时（25℃）。
11. 实时时钟：带 RTC，支持事件记录与时间戳。
12. 尺寸：面板 213×159mm，开孔 192×138mm。
13. 认证：CE，符合工业 EMC 与安全标准。
14. 应用：小型产线、机床、暖通、包装设备等。
15. 定位：新机配套、旧屏替换，性价比高。

6AV6648-0AC11-3AX0操作面板 产品英文

6AV6648-0AC11-3AX0 (Siemens SMART 700 IE V3), 7-inch industrial touch screen, economical and practical HMI, suitable for small automation scenarios.

Model: 6AV6648-0AC11-3AX0, SIMATIC HMI SMART 700 IE V3.

Display: 7-inch TFT widescreen, 800 × 480, 256 colors, LED backlight.

Operation: 4-wire resistive touch screen, no physical buttons.

Performance: 400MHz ARM, 64MB DDR, fast response, smooth graphics.

Communication: Ethernet RJ45, RS422/485, USB A port.

Compatible with PLCs: Siemens S7-200, Mitsubishi FX, Omron CP1.

Configuration: WinCC flexible 2008 SP2 China/SMART.

Protection: IP65 front and IP20 back, dustproof and waterproof.

Environment: Working at 0~50 ℃, stored at -20~60 ℃.

Durable: The backlight has a lifespan of approximately 40000 hours (25 ℃).

Real time clock: equipped with RTC, supporting event recording and timestamp.

Size: Panel 213 × 159mm, opening 192 × 138mm.

Certification: CE, compliant with industrial EMC and safety standards.

Application: Small production lines, machine tools, HVAC, packaging equipment, etc.

Positioning: New machine matching, old screen replacement, high cost-effectiveness.
