1.产 品 资 料 介 绍：

AMAT 0680-01055 断路器

产品概述

AMAT（Applied Materials）0680-01055 断路器是一种用于半导体制造设备的电气保护装置，主要功能是对设备的电路进行过载、短路及异常电流保护。它能够在电流超过设定阈值时自动断开电路，防止设备内部电气模块受损或引发安全事故。断路器通常安装在控制箱或底盘控制箱中，是保障 AMAT 设备安全运行的关键元件。

技术参数（典型方向，具体数据需参考原厂资料）

• 额定电流：根据设备设计规格（工业标准范围）

• 额定电压：适配半导体设备内部电源系统

• 动作特性：瞬时过流保护与延时过载保护

• 机械寿命：高可靠机械触点，可承受多次操作

• 安装方式：模块化或插入式，便于设备集成与更换

• 环境适应性：适应高洁净、低湿度的半导体设备环境

应用场景

1. 控制箱与底盘控制箱保护

   • 作为电源总开关和保护装置，防止设备电气模块因过载或短路损坏

   • 保障气门、加热器、控制器、PCB 等模块的安全运行

2. 沉积工艺（CVD/PVD/ALD）设备保护

   • 在腔体加热器、泵浦、射频模块或气体控制系统异常时切断电源，避免工艺损坏

3. 刻蚀工艺设备保护

   • 保护射频功率模块、阀门和传感器线路，防止短路或过载导致设备停机

4. 离子注入系统保护

   • 断路器监控电源负载，确保离子源和扫描系统安全

5. 工厂安全与维护

   • 作为互锁保护的一部分，保障操作人员和设备安全

   • 在维护或异常情况下，可快速断开电路进行安全操作

AMAT  0680-01055断路器 英文资料：

AMAT 0680-01055 Circuit Breaker

Product Overview

AMAT (Applied Materials) 0680-01055 circuit breaker is an electrical protection device used in semiconductor manufacturing equipment. Its main function is to protect the circuit of the equipment from overload, short circuit, and abnormal current. It can automatically disconnect the circuit when the current exceeds the set threshold, preventing damage to the internal electrical modules of the equipment or causing safety accidents. Circuit breakers are usually installed in control boxes or chassis control boxes and are key components to ensure the safe operation of AMAT equipment.

Technical parameters (typical direction, specific data should refer to the original factory information)

Rated current: According to the equipment design specifications (industrial standard range)

Rated voltage: Suitable for the internal power supply system of semiconductor equipment

Action characteristics: instantaneous overcurrent protection and delayed overload protection

Mechanical lifespan: Highly reliable mechanical contacts that can withstand multiple operations

Installation method: modular or plug-in, easy to integrate and ｒｅｐｌａｃｅ equipment

Environmental adaptability: Suitable for semiconductor equipment environments with high cleanliness and low humidity

Application scenarios

Control box and chassis control box protection

As the main power switch and protective device, it prevents damage to the electrical modules of the equipment due to overload or short circuit

Ensure the safe operation of modules such as valves, heaters, controllers, PCBs, etc

Equipment protection for sedimentation processes (CVD/PVD/ALD)

Cut off the power supply in case of abnormalities in the cavity heater, pump, RF module, or gas control system to avoid process damage

Etching process equipment protection

Protect RF power modules, valves, and sensor circuits to prevent equipment shutdown caused by short circuits or overloads

Ion implantation system protection

Circuit breakers monitor power loads to ensure the safety of ion sources and scanning systems

Factory Safety and Maintenance

As part of interlock protection, ensure the safety of operators and equipment

In maintenance or abnormal situations, the circuit can be quickly disconnected for safe operation

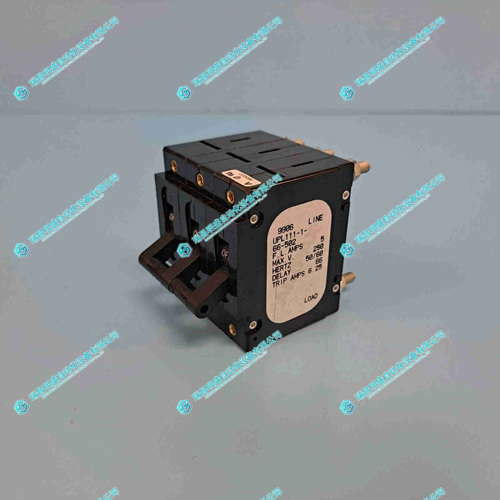

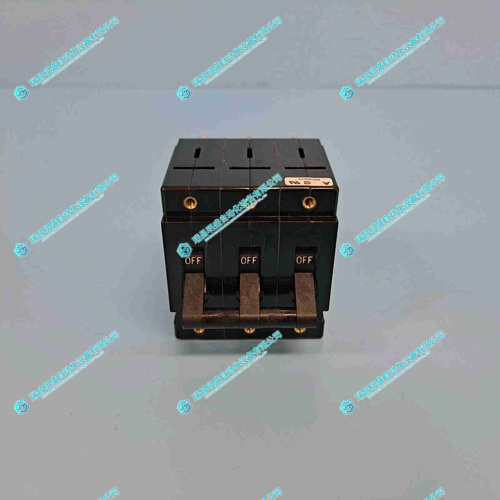

AMAT 0680-01055断路器  产品展示

 产品视频
