AMAT 0190-27748控制视频开关

AMAT  0190-27748控制视频开关

1.产 品 资 料 介 绍：

AMAT 0190-27748 控制视频开关

产品概述

AMAT（Applied Materials）0190-27748 控制视频开关是一种用于半导体制造设备的 视频信号切换与控制模块。它主要用于监控设备内部工艺或机械动作，通过切换多个视频信号源，将摄像头、监控探头或工艺观察点的图像信号传输到操作界面或记录系统，实现设备状态监控、工艺观察和安全管理。

技术参数（典型方向，具体数据需参考原厂资料）

• 输入/输出：多路视频输入，多路输出，可选择切换

• 信号类型：模拟或数字视频信号

• 控制方式：通过控制系统或手动接口切换视频源

• 接口：与设备监控系统、控制器或操作终端连接

• 安装方式：模块化设计，可集成于控制箱或设备底盘

• 环境适应性：适应洁净室环境及工业温度范围

应用场景

1. 沉积工艺（CVD/PVD/ALD）

   • 监控反应腔体或关键模块状态

   • 实时观察沉积过程，确保工艺精度

2. 刻蚀工艺设备

   • 切换观察刻蚀腔体或气体流量控制点的监控视频

   • 支持工艺参数调整和异常排查

3. 离子注入系统

   • 实时监控离子源、扫描系统及束流路径

   • 提高注入过程的可视化和操作安全

4. 设备维护与操作

   • 切换监控视角，便于现场维护和故障诊断

   • 支持操作人员快速定位设备异常

5. 工厂自动化与安全管理

   • 与互锁系统和操作界面结合，实现远程监控

   • 提高设备运行安全性和工艺可控性

AMAT  0190-27748控制视频开关 英文资料：

AMAT 0190-27748 Control Video Switch

Product Overview

AMAT (Applied Materials) 0190-27748 Control Video Switch is a video signal switching and control module used in semiconductor manufacturing equipment. It is mainly used to monitor the internal processes or mechanical movements of equipment. By switching multiple video signal sources, the image signals of cameras, monitoring probes, or process observation points are transmitted to the operation interface or recording system to achieve equipment status monitoring, process observation, and safety management.

Technical parameters (typical direction, specific data should refer to the original factory information)

Input/Output: Multiple video inputs, multiple outputs, switchable

Signal type: Analog or digital video signal

Control method: Switch the video source through the control system or manual interface

Interface: Connect with device monitoring system, controller or operation terminal

Installation method: Modular design, can be integrated into the control box or equipment chassis

Environmental adaptability: Suitable for clean room environment and industrial temperature range

Application scenarios

Deposition process (CVD/PVD/ALD)

Monitor the status of reaction chambers or critical modules

Real time observation of sedimentation process to ensure process accuracy

Etching process equipment

Switching between monitoring videos for observing etching chambers or gas flow control points

Support process parameter adjustment and abnormal troubleshooting

Ion implantation system

Real time monitoring of ion source, scanning system, and beam path

Improve the visualization and operational safety of the injection process

Equipment maintenance and operation

Switching monitoring perspectives for easy on-site maintenance and fault diagnosis

Support operators to quickly locate equipment abnormalities

Factory Automation and Safety Management

Combined with interlocking system and operation interface, achieve remote monitoring

Improve equipment operation safety and process controllability

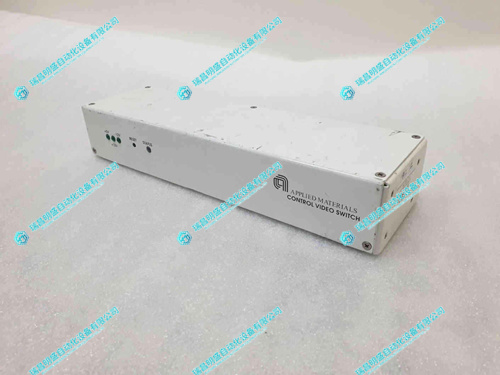

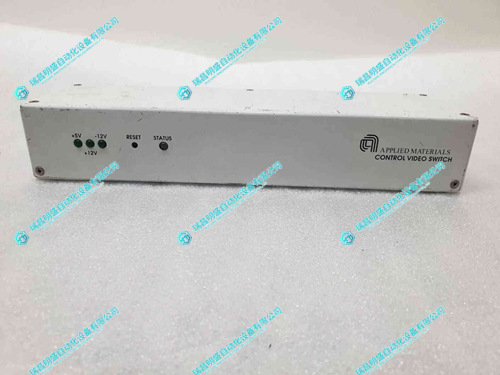

AMAT 0190-27748控制视频开关  产品展示

 产品视频
