AMAT Applied Materials 0100-09126远程配线板
1.产 品 资 料 介 绍：
核心功能
技术参数
典型应用
AMAT Applied Materials 0100-09126远程配线板 英文资料：
AMAT Applied Materials 0100-09126 Remote Distribution Board is a high-density multiplexer board that supports remote centralized distribution and management of digital, analog, and power signals. It is widely used in semiconductor manufacturing equipment and industrial automation control systems.
core functionality
Remote signal distribution: Extend the main controller signal to multiple remote modules to achieve long-distance and multi-point transmission
Isolation protection: using photoelectric/electrical isolation to prevent interference and signal crosstalk
Modular design: Channels can be flexibly configured for easy expansion and maintenance
Status monitoring: equipped with LED indicator lights, real-time display of channel working status
Hot swappable support: Supports live module replacement to reduce downtime
Protective treatment: surface coated with moisture-proof and anti-corrosion coatings, suitable for harsh industrial environments
Technical Specifications
Project specifications
Number of channels 16-32 (customizable)
Working voltage 24VDC (± 10%)
Isolation level: 2.5kVrms between signals, 5kVrms between power supply and signals
Working temperature -10 ℃~60 ℃
6-8 layer structure high-density PCB
Size standard 160 × 100mm (customizable)
Combination of high-density pin sockets and Phoenix terminals for connectors
Typical Applications
Remote signal transmission of sensors/actuators for semiconductor etching machines and deposition equipment
Distribution of control signals for vacuum systems and ion implantation machines
Remote I/O Expansion of Industrial Automation Production Lines
Multi channel signal conversion for testing system

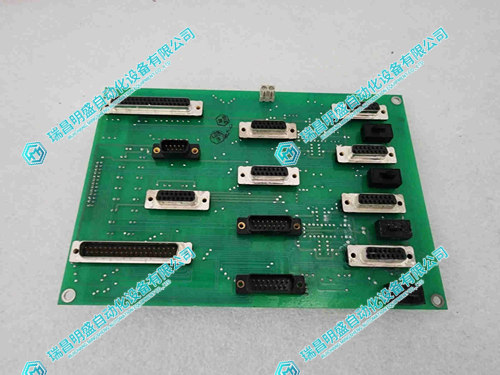

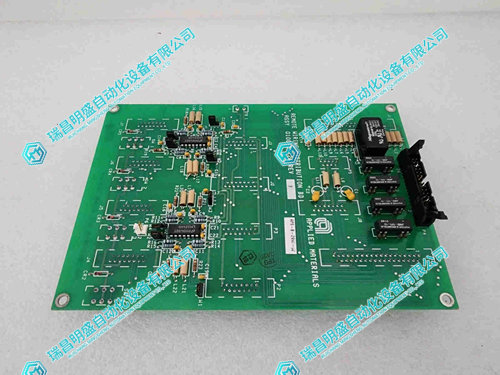

AMAT Applied Materials 0100-09126远程配线板 产品展示
