1.产 品 资 料 介 绍：

核心规格

性能特点

• 高速信号处理：采用受控阻抗设计（差分 100 Ω、单端 50 Ω），支持 SECS/GEM、EtherNet、LVDS 等高速接口，满足晶圆传输与工艺控制的高精度时序要求。
• 抗干扰能力强：多层地平面与电源层隔离，降低噪声耦合，确保信号稳定。
• 模块化设计：支持多块堆叠或扩展模块接入，适应不同工艺配置。
• 长寿命与高可靠性：ENIG 表面处理耐腐蚀、抗氧化，适合长时间连续运行环境。

典型应用

• 刻蚀（Etch）与化学气相沉积（CVD）系统的控制板
• 物理气相沉积（PVD）与原子层沉积（ALD）系统的信号传输板
• 晶圆传输腔室与气体流量控制系统
• 平板显示（LCD/OLED）制造设备的控制电路

AMAT Applied Materials  0100-00035印刷电路板  英文资料：

AMAT Applied Materials 0100-00035 is a high reliability multi-layer printed circuit board (PCB) primarily used for control and signal transmission in semiconductor manufacturing equipment, compatible with platforms such as Centura, Endura, P5000, etc.

Core specifications

Project specification remarks

Suitable for multi chamber semiconductor equipment such as Centura, Endura, P5000, Producer, etc

Layer 8 (signal/power/ground plane) with high-speed differential pair

Substrate FR-4, glass transition temperature Tg ≥ 150 ℃, high reliability

Copper foil thickness: outer layer 1 oz (35 μ m), inner layer 0.5 oz (18 μ m) to optimize signal transmission

Surface treatment: Chemical nickel plating/immersion gold (ENIG) with good weldability

Size standard 1U/2U rack mounted or customized for easy integration

Minimum line width/spacing 5 mil/5 mil (0.127 mm/0.127 mm) high-density wiring

Minimum via 8 mil (0.203 mm) blind/buried hole optional

Working temperature: 0 ℃~50 ℃, naturally air-cooled

Certified CE, UL, SEMI S2 in compliance with industry standards

Performance Characteristics

High speed signal processing: Adopting a controlled impedance design (differential 100 Ω, single ended 50 Ω), supporting high-speed interfaces such as SECS/GEM, EtherNet, LVDS, etc., to meet the high-precision timing requirements of wafer transmission and process control.

Strong anti-interference ability: Multiple layers of ground plane are isolated from the power layer to reduce noise coupling and ensure signal stability.

Modular design: supports the integration of multiple stacked or extended modules to adapt to different process configurations.

Long lifespan and high reliability: ENIG surface treatment is corrosion-resistant and anti-oxidation, suitable for long-term continuous operation environments.

Typical Applications

Control board for Etch and CVD systems

Signal transmission board for physical vapor deposition (PVD) and atomic layer deposition (ALD) systems

Wafer transfer chamber and gas flow control system

Control Circuit for Flat Panel Display (LCD/OLED) Manufacturing Equipment

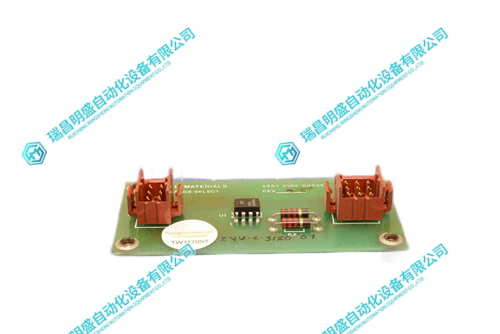

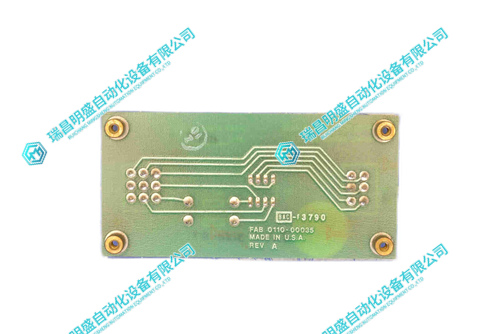

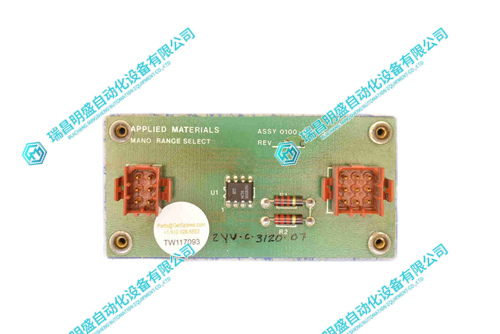

AMAT Applied Materials   0100-00035印刷电路板 产品展示
