AMAT Applied Materials 70512360100变压器组件

AMAT Applied Materials 70512360100变压器组件

1.产 品 资 料 介 绍：

核心规格

功能与价值

• 稳定隔离：多层屏蔽与绕组设计，抑制电磁干扰（EMI）与射频泄漏
• 高效转换：高频磁芯材料（如纳米晶、非晶）降低铁损与铜损
• 定制灵活：可按设备要求调整匝数、抽头、安装方式
• 安全可靠：符合 IEC 61558、UL 5085 等标准，适应严苛工业环境

选型与替代建议

• 采购前需确认设备型号、模块位号及电气规格，避免因引脚定义或安装孔位不符导致无法使用。
• 若原型号停产，可参考 AMAT 替代料号清单，确保匝数比、耐压等级及安装尺寸一致，并进行空载与负载测试。
• 替代时应重点核对：
  • 输入 / 输出电压与功率等级
  • 绕组匝数与抽头位置
  • 绝缘耐压与温升要求
  • 安装孔位与固定方式

AMAT Applied Materials 70512360100变压器组件 英文资料：

AMAT 70512360100 is an industrial grade transformer component customized by Applied Materials for power conversion and isolation in semiconductor equipment. It is commonly used in RF power supplies, bias power supplies, or filament heating circuits on platforms such as P5000, Centura, Endura, etc.

Core specifications

Project specifications/characteristics remarks

Type: High frequency isolation transformer (air-cooled/liquid cooled) supports single/three-phase input

Input voltage 200-480 VAC (± 10%) 50/60 Hz

Multi winding design for output voltage (such as 24 VAC, filament voltage, bias voltage, etc.) with customizable winding turns and taps

Power range of 50-5000 VA depends on the device model

Frequency characteristics of 50 Hz -500 kHz meet the requirements of RF and high-speed circuits

Insulation level B/F/H (optional) withstand voltage ≥ 3000 Vrms

Cooling method: Natural air cooling or forced air cooling, liquid cooling loop can be added

Structural epoxy encapsulation or metal shielding to resist vibration, moisture, and interference

function and value

Stable isolation: multi-layer shielding and winding design to suppress electromagnetic interference (EMI) and radio frequency leakage

Efficient Conversion: High frequency magnetic core materials (such as nanocrystals and amorphous) reduce iron and copper losses

Customization flexibility: the number of turns, taps, and installation methods can be adjusted according to equipment requirements

Safe and reliable: compliant with standards such as IEC 61558 and UL 5085, suitable for harsh industrial environments

Selection and Alternative Suggestions

Before purchasing, it is necessary to confirm the equipment model, module tag number, and electrical specifications to avoid being unable to use due to incorrect pin definitions or installation hole positions.

If the original model is discontinued, reference can be made to the AMAT replacement part number list to ensure consistency in turns ratio, voltage rating, and installation dimensions, and to conduct no-load and load tests.

When replacing, it is important to focus on checking:

Input/output voltage and power level

Winding turns and tap positions

Insulation withstand voltage and temperature rise requirements

Installation hole position and fixing method

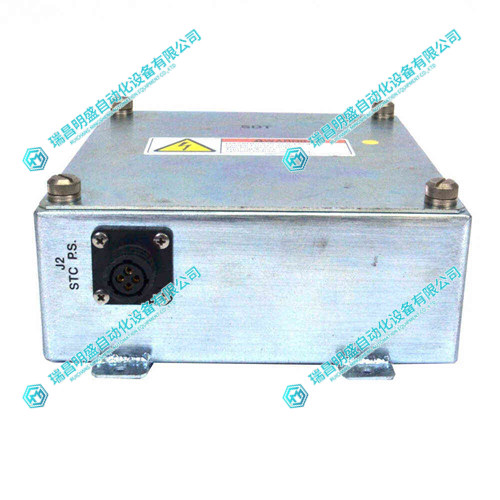

AMAT Applied Materials 70512360100变压器组件 产品展示
