AMAT Applied Materials 0100-00472运动信号调理模块

AMAT Applied Materials 0100-00472运动信号调理模块

1.产 品 资 料 介 绍：

核心规格

功能与价值

• 稳定信号传输：光耦隔离 + 硬件滤波，抑制 EMI/RFI，确保运动反馈信号无失真。
• 接口兼容：可适配不同电平的编码器与驱动器，减少电平转换电路。
• 高精度位置反馈：优化电路设计，保证编码器计数精度，支持微米级定位控制。
• 可维护性强：模块化设计，可在线更换，缩短停机时间。

应用场景

• 晶圆传输机器人位置反馈
• 工作台 / 主轴速度与位置控制
• 精密定位平台的限位保护与零点信号处理

AMAT Applied Materials 0100-00472运动信号调理模块 英文资料：

AMAT 0100-00472 is a signal conditioning module used in semiconductor equipment motion control systems, commonly found on platforms such as Centura, Endura, P5000, etc. It is used to connect position/velocity sensors such as encoders, grating rulers, limit switches, and motion controllers or drivers, ensuring stable signals, low noise, and strong anti-interference capabilities.

Core specifications

Project specifications/characteristics remarks

Type: Motion signal conditioning board (PCB card) Non independent chassis module

Input signal incremental encoder (A/B/Z phase, ± 5 V or 24 V), linear/angular grating ruler, limit switch (dry contact/OC gate) supporting differential or single ended input

Output signal isolation differential/single ended signal, compatible with driver/controller interface signal shaping and amplification

Isolation method: Optocoupler isolation (between channels, input-output power supply), anti-interference ≥ 1500 Vrms

Filter characteristics: Low pass/band-pass hardware filtering suppresses PWM noise from 10 kHz to 100 kHz

Supply voltage 24 VDC ± 10%, power consumption approximately 5 W

Suitable for industrial environments with working temperatures ranging from 0 ℃ to 50 ℃

Installation method: Plug in card (matching with backplane connector) size approximately 100mm x 160mm (subject to actual product)

Version Rev. 004 (common) updates iteratively with the device

function and value

Stable signal transmission: optocoupler isolation+hardware filtering, suppressing EMI/RFI, ensuring that the motion feedback signal is distortion free.

Interface compatibility: It can adapt to encoders and drivers of different levels, reducing the need for level conversion circuits.

High precision position feedback: Optimize circuit design to ensure encoder counting accuracy and support micrometer level positioning control.

Strong maintainability: modular design, online replacement, and reduced downtime.

Application scenarios

Position feedback of wafer transfer robot

Workbench/spindle speed and position control

Limit protection and zero signal processing of precision positioning platform

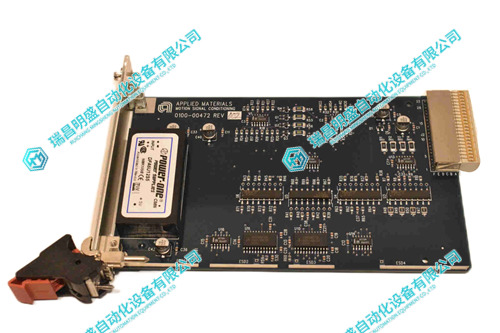

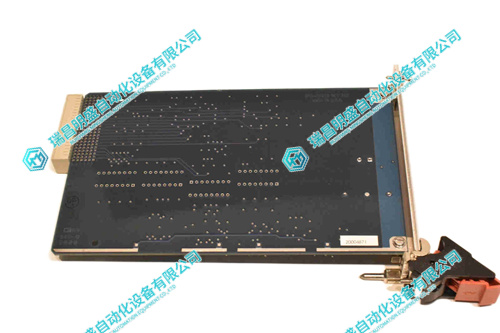

AMAT Applied Materials 0100-00472运动信号调理模块 产品展示

 产品视频

3.其他产品

GJR2365700R1010 控制器模块
GJR2395400R1010模拟输入模块
GJR2390200R1010控制卡

4.其他英文产品

ABB IMDSI15 digital current card
ABB FEN-11 interface fen-11 kit
AMAT 0100-76124 Multiplexer switch card

The content is from Ruichang Mingsheng Automation Equipment Co., LTD

Contact: +86 15270269218
