AMAT Applied Materials 0100-20318隔离放大器

AMAT Applied Materials  0100-20318隔离放大器

1.产 品 资 料 介 绍：

关键规格

功能特点

• 高精度放大：±250 mV 输入直接匹配分流电阻或传感器信号，固定增益 8 V/V，典型精度 ±0.5%。
• 电气隔离：4000 VPEAK 隔离电压，有效切断地环路与高压干扰，确保信号纯净。
• 高抗干扰：108 dB CMRR 和 60 kHz 带宽，可在强电磁干扰环境下稳定工作。
• 模块化设计：独立电源与信号通道，便于更换与维护。
• 安全认证：符合 UL1577、IEC60747‑5‑2 标准，满足工业安全要求。

AMAT Applied Materials 0100-20318隔离放大器  英文资料：

AMAT Applied Materials 0100-20318 is a high-precision isolation amplifier module designed for high noise environments in semiconductor equipment. It can isolate and amplify low-level sensor signals (such as ± 250 mV) to a safe and measurable range (such as 0-10 V), with an isolation voltage of up to 4000 VPEAK. It is suitable for analog data acquisition such as temperature, pressure, and flow rate.

Key specifications

Project Specification Description

Input range ± 250 mV, suitable for shunt resistors or low-level signal sources

Fixed gain 8   V/V, typical ± 0.5% accuracy

Output range 0-10V compatible with device controller

Isolation voltage of 4000 VPEAK complies with UL1577 and IEC60747-5-2

Working voltage 24V DC single power supply

Low power design with power consumption ≤ 8   W

The bandwidth of 60 kHz is sufficient for most industrial data acquisition

CMRR 108 dB strong anti common mode interference capability

Nonlinear degree ≤ 0.075% to ensure linearity

Working temperature 0-50 ℃, industrial grade environment

Size 160mm × 100mm × 40mm standard 2U board type

Features

High precision amplification: ± 250 mV input directly matches shunt resistor or sensor signal, fixed gain of 8 V/V, typical accuracy ± 0.5%.

Electrical isolation: 4000 VPEAK isolation voltage, effectively cutting off ground loop and high voltage interference, ensuring signal purity.

High anti-interference: 108 dB CMRR and 60 kHz bandwidth, capable of stable operation in strong electromagnetic interference environments.

Modular design: independent power and signal channels for easy replacement and maintenance.

Safety certification: Complies with UL1577 and IEC60747-5-2 standards, meeting industrial safety requirements.

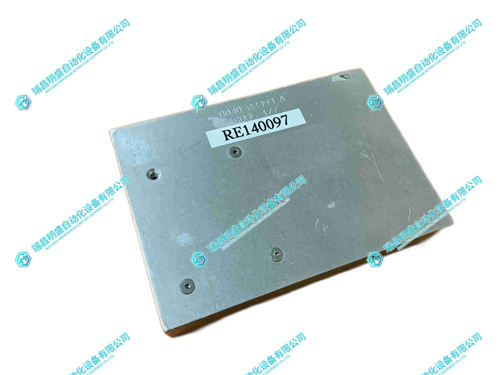

 AMAT Applied Materials 0100-20318隔离放大器 产品展示
