1.产 品 资 料 介 绍：

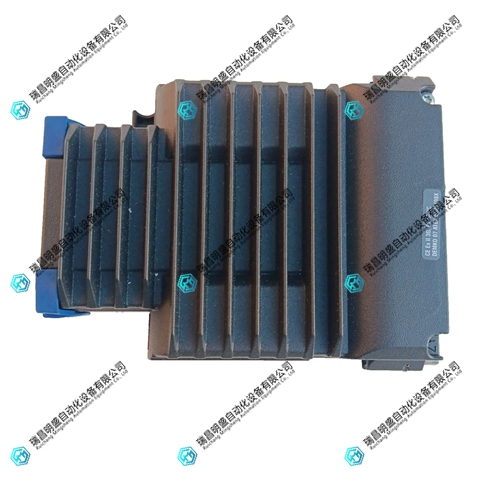

P0972ZA FCM100E 现场总线通信模块 产品特点（15 条）
- 专为 Foxboro I/A Series DCS 设计，实现100Mbps 以太网与现场总线双向高速转换。
- 兼容双速率现场总线：2Mbps（200 系列 FBM）、268Kbps（100 系列 FBM），适配全系列 I/O 模块。
- 支持模块级冗余，双模块同时激活，单模块故障无缝切换，通信不中断。
- 最大挂载能力：32 个 200 系列 FBM或64 个 100 系列 FBM，系统扩展能力强。
- 采用光纤通信，抗电磁干扰强，支持远距离传输，适配强干扰工业环境。
- 支持无工具热插拔，在线维护更换，不影响系统运行。
- 工业级宽温工作：0℃~+70℃，适应化工、电力、冶金等恶劣工况。
- 供电范围21–42VDC，功耗低（最大 5W），适配工业现场电源环境。
- 标准 DIN 导轨安装，结构紧凑，节省柜内空间，布线规整。
- 内置状态 LED 指示灯，实时显示通信与模块运行状态，便于快速诊断。
- 支持双网冗余与光纤环网自愈，保障数据传输高可用性。
- 通道电气隔离设计，提升系统抗干扰与安全运行能力。
- 符合 CE、IEC 工业标准，阻燃环保材料，满足工厂安全规范。
- 兼容 Foxboro 标准背板与底座，通用性强，系统集成便捷。
- 长寿命、抗振动 / 冲击设计，满足流程工业连续生产高可靠要求。
P0972ZA FCM100E 现场总线通信模块 英文资料：
P0972ZA FCM100E fieldbus communication module product features (15 items)
Specially designed for Foxboro I/A Series DCS, achieving bidirectional high-speed conversion between 100Mbps Ethernet and fieldbus.
Compatible with dual rate fieldbus: 2Mbps (200 series FBM), 268Kbps (100 series FBM), compatible with a full range of I/O modules.
Support module level redundancy, dual module activation simultaneously, seamless switching in case of single module failure, and uninterrupted communication.
Maximum mounting capacity: 32 200 series FBMs or 64 100 series FBMs, with strong system scalability.
Adopting fiber optic communication, it has strong resistance to electromagnetic interference, supports long-distance transmission, and is suitable for strong interference industrial environments.
Support tool free hot plugging, online maintenance and replacement, without affecting system operation.
Industrial grade wide temperature operation: 0 ℃~+70 ℃, suitable for harsh working conditions such as chemical, power, metallurgy, etc.
Power supply range of 21-42VDC, low power consumption (maximum 5W), suitable for industrial site power environment.
Standard DIN rail installation, compact structure, saves cabinet space, and neat wiring.
Built in status LED indicator light, real-time display of communication and module operation status, facilitating quick diagnosis.
Support dual network redundancy and fiber ring network self-healing to ensure high availability of data transmission.
Channel electrical isolation design enhances the system's anti-interference and safe operation capabilities.
Compliant with CE and IEC industrial standards, flame retardant and environmentally friendly materials, meeting factory safety regulations.
Compatible with Foxboro standard backplate and base, with strong versatility and convenient system integration.
Long lifespan, anti vibration/impact design, meeting the high reliability requirements of continuous production in process industries.
concluding summary
The P0972ZA FCM100E module integrates high-speed conversion, dual rate compatibility, redundant safety, fiber optic anti-interference, and hot swappable maintenance. It is the core communication hub connecting the control layer and field I/O layer in Foxboro DCS system, providing stable, efficient, and highly reliable fieldbus communication solutions for process industries such as petroleum, chemical, and power.
