HIMA F3324可互换放大器

HIMA F3324可互换放大器

1.产 品 资 料 介 绍：

15 条核心特点

1. 可互换设计：与 HIMATRIX F3 系列同类型放大器模块引脚与功能兼容，支持在线热插拔替换，降低停机换件成本；
2. 8 通道独立配置：每通道可单独设定放大倍数、诊断规则与输出模式，适配不同类型安全负载需求；
3. SIL 3 安全认证：符合 IEC 61508/61511 标准，通过 TÜV 认证，支持 AK6 高安全等级应用；
4. 24VDC 标准供电：适配工业现场常规供电，输入电压范围 18–28VDC，兼容系统冗余电源架构；
5. 全通道电气隔离：通道间、通道与背板总线间独立隔离，有效抑制电磁干扰与浪涌，保障信号精准传输；
6. 全面自诊断：实时监测通道短路、断路、过流、信号超限及模块故障，通过 LED 与总线快速上报；
7. 故障安全设计：失电或异常时，输出自动切换至预设安全状态（如断电关断），杜绝安全风险；
8. 冗余架构兼容：支持系统级冗余配置，配合 F3 系列控制器实现无扰动切换，提升系统容错能力；
9. 宽温稳定运行：工作温度 - 20°C 至 +60°C，存储温度 - 40°C 至 +85°C，适应极端工业环境；
10. 工业 EMC 合规：具备高抗干扰性能，可在高压、高频、多粉尘的复杂现场稳定工作；
11. 标准 DIN 导轨安装：模块化尺寸，插拔式接线端子，便于控制柜集成与现场接线调试；
12. 低功耗优化：工业级元器件与高效电源管理，减少发热，延长模块长期运行寿命；
13. SafeEthernet 高速通信：与 F3 系列控制器无缝对接，数据传输延迟低，保障安全指令响应速度；
14. ATEX 防爆认证：满足危险区域 Zone 2 应用要求，适配油气、化工等防爆场景；
15. 长寿命高可靠：德国原厂制造，严格生产测试流程，平均无故障时间（MTBF）长，适合连续安全运行。

应用场景

HIMA F3324可互换放大器  英文资料：

HIMA F3324 is an interchangeable signal amplification module for the HIMMATRIX F3 series safety control system, used for precise amplification and driving of signals in safety circuits. It supports flexible replacement with output/input modules of the same series and is suitable for harsh industrial safety scenarios such as petrochemicals, power, and pharmaceuticals, meeting high reliability and fast maintenance requirements.

15 core characteristics

Interchangeable design: compatible with pins and functions of amplifier modules of the same type as HIMATIX F3 series, supports online hot swappable replacement, and reduces downtime replacement costs;

8-channel independent configuration: Each channel can be individually configured with amplification factors, diagnostic rules, and output modes to meet different types of safety load requirements;

SIL 3 safety certification: compliant with IEC 61508/61511 standards, certified by T Ü V, supporting AK6 high safety level applications;

24VDC standard power supply: Suitable for conventional power supply in industrial sites, with an input voltage range of 18-28VDC, compatible with system redundant power supply architecture;

Full channel electrical isolation: independent isolation between channels and between channels and backplane buses, effectively suppressing electromagnetic interference and surges, ensuring accurate signal transmission;

Comprehensive self diagnosis: Real time monitoring of channel short circuits, open circuits, overcurrent, signal overload, and module faults, quickly reported through LED and bus;

Fault safety design: In case of power failure or abnormality, the output automatically switches to the preset safety state (such as power-off), eliminating safety risks;

Redundant architecture compatibility: supports system level redundant configuration, works with F3 series controllers to achieve disturbance free switching, and enhances system fault tolerance;

Wide temperature stable operation: working temperature -20 ° C to+60 ° C, storage temperature -40 ° C to+85 ° C, suitable for extreme industrial environments;

Industrial EMC compliance: With high anti-interference performance, it can work stably in complex sites with high voltage, high frequency, and high dust;

Standard DIN rail installation: modular size, plug-in wiring terminals, convenient for control cabinet integration and on-site wiring debugging;

Low power optimization: Industrial grade components and efficient power management reduce heat generation and extend the long-term operating life of modules;

SafeEthernet high-speed communication: seamlessly integrated with F3 series controllers, with low data transmission delay, ensuring fast response speed of safety instructions;

ATEX explosion-proof certification: meets the requirements of Zone 2 applications in hazardous areas and is suitable for explosion-proof scenarios such as oil and gas, chemical, etc;

Long lifespan and high reliability: Made in Germany, with strict production testing processes and a long mean time between failures (MTBF), suitable for continuous safe operation.

Application scenarios

Suitable for signal amplification and driving of safety circuits such as Safety Instrumented Systems (SIS), Emergency Shutdown Systems (ESD), Valve Interlocking, Burner Management Systems (BMS), etc. It can flexibly ｒｅｐｌａｃｅ modules of the same series, quickly restore system functions, and ensure production safety and continuity.

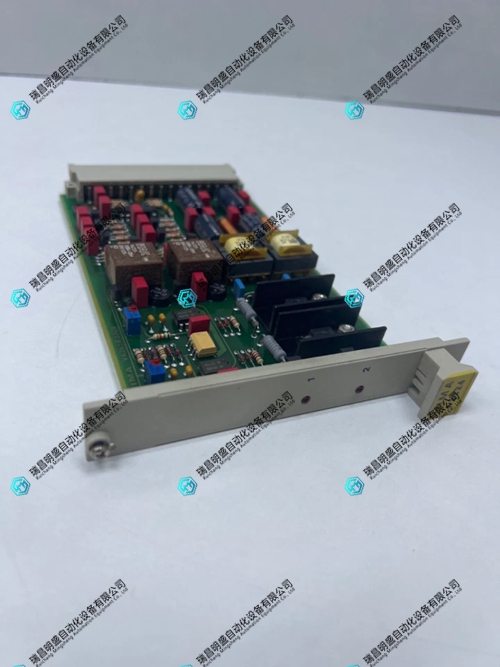

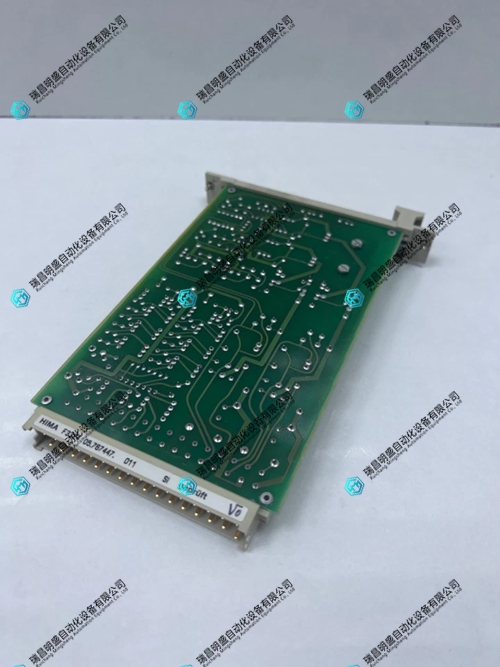

HIMA F3324可互换放大器  产品展示
