1.产 品 资 料 介 绍：

一、离散制造业

1. 汽车整车与零部件生产线：对接条码扫描器、RFID 读写器、喷码机、标签打印机，实现生产数据采集与追溯
2. 电子装配与 SMT 产线：连接测试仪器、AOI 设备、物料计数器，完成数据上传与设备联动
3. 包装与食品加工：对接称重仪表、贴标机、喷码机、输送线传感器，实现配方管理与质量监控
4. 机械加工与机床联网：连接数控系统、刀具管理设备、在线检测仪器，实现加工数据采集与远程监控

二、过程工业（流程行业）

5. 石油天然气：对接井口 RTU、流量计、压力变送器、阀门控制器，实现远程监控与数据采集
6. 电力行业：连接继电保护装置、电能表、环网柜、变电站测控设备，满足电力监控与远动需求
7. 化工与制药：对接 DCS 系统、pH 计、液位计、色谱仪、反应釜控制器，实现工艺参数监控
8. 水处理与环保：连接水质分析仪、加药泵、流量计、泵站控制器，用于水厂 / 污水厂自动化
9. 冶金与建材：对接炉温控制系统、轧机仪表、原料称重设备、窑炉控制器，保障连续生产

三、物流与仓储自动化

10. 智能仓储：连接条码扫描器、电子标签拣选系统、AGV 调度终端、立体仓库堆垛机
11. 港口与码头：对接岸桥、场桥、皮带秤、集装箱识别设备，实现装卸数据实时上传

四、基础设施与楼宇

12. 智能建筑：连接楼宇自控系统、门禁控制器、电梯监控、能耗计量仪表
13. 轨道交通：对接车站设备、信号系统、闸机、乘客信息显示终端

五、通用场景（跨行业）

14. 老旧设备改造：将 RS‑232/422/485 串口仪表、PLC、HMI 接入 ControlLogix，实现系统升级
15. 数据采集与协议转换：作为通用串口网关，对接非标 ASCII 设备、Modbus ASCII、DF1 等设备

MVI56-GSC通信模块  英文资料：

MVI56-GSC is a universal ASCII serial communication module developed by ProSoft for the Rockwell ControlLogix platform. Its core is used to connect various serial devices to the ControlLogix system. The following are its main application areas:

1、 Discrete manufacturing industry

Automobile whole vehicle and component production line: docking barcode scanners, RFID readers, inkjet printers, label printers to achieve production data collection and traceability

Electronic assembly and SMT production line: connect testing instruments, AOI equipment, material counters, complete data upload and equipment linkage

Packaging and food processing: docking weighing instruments, labeling machines, inkjet printers, and conveyor line sensors to achieve formula management and quality monitoring

Mechanical processing and machine tool networking: connecting CNC systems, tool management equipment, and online detection instruments to achieve processing data collection and remote monitoring

2、 Process Industry (Process Industry)

Oil and gas: docking wellhead RTU, flow meter, pressure transmitter, valve controller to achieve remote monitoring and data acquisition

Power industry: Connect relay protection devices, energy meters, ring main units, substation measurement and control equipment to meet the needs of power monitoring and remote control

Chemical and Pharmaceutical: Integrate DCS system, pH meter, liquid level meter, chromatograph, and reactor controller to achieve process parameter monitoring

Water treatment and environmental protection: connecting water quality analyzers, dosing pumps, flow meters, and pump station controllers for automation in water plants/sewage treatment plants

Metallurgy and Building Materials: Integrate furnace temperature control systems, rolling mill instruments, raw material weighing equipment, kiln controllers to ensure continuous production

3、 Logistics and Warehouse Automation

Intelligent warehousing: connecting barcode scanners, electronic label picking systems, AGV scheduling terminals, and three-dimensional warehouse stackers

Port and Terminal: Docking with quay cranes, yard bridges, belt scales, and container recognition equipment to achieve real-time uploading of loading and unloading data

4、 Infrastructure and Buildings

Intelligent building: connecting building automation systems, access control controllers, elevator monitoring, energy consumption meters

Rail transit: docking station equipment, signal system, turnstiles, passenger information display terminals

5、 General scenario (cross industry)

Old equipment renovation: Connect RS-232/422/485 serial port instruments, PLC, HMI to ControlLogix to achieve system upgrade

Data collection and protocol conversion: As a universal serial port gateway, it interfaces with non-standard ASCII devices, Modbus ASCII, DF1 and other devices

This module, with its dual independent configurable serial ports, universal ASCII transparent transmission, and asynchronous communication with PLC, has become the core solution for connecting various serial devices to the ControlLogix system, covering almost all industrial automation scenarios.

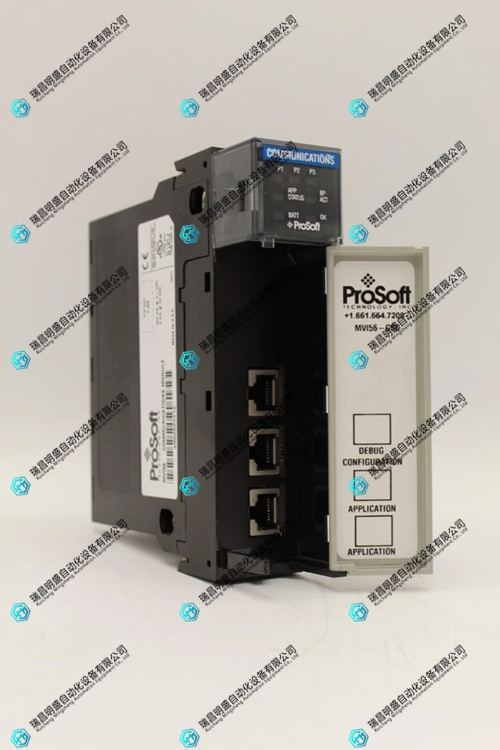

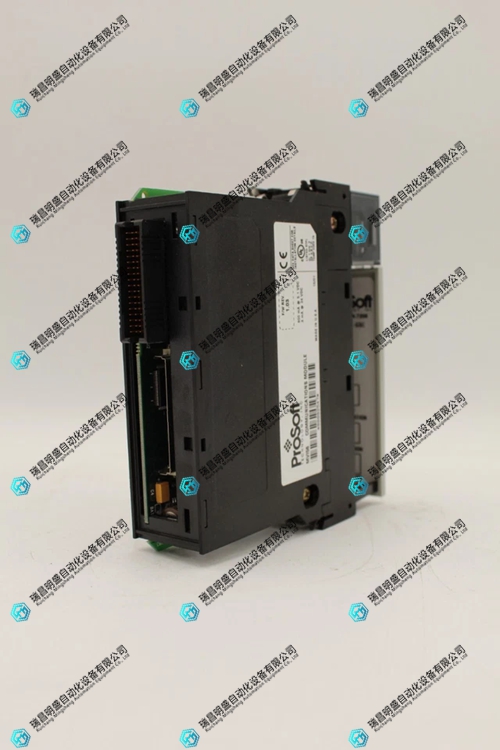

MVI56-GSC通信模块   产品展示

产品视频
