TRICONEX DI2301 7400208-020 连接模块
1.产 品 资 料 介 绍：
中文资料：
TRICONEX DI2301 数字输入连接模块
部件号：7400208-020
产品类型
数字输入模块，通常用于 Triconex 系统中，负责接收来自现场设备的数字输入信号，并将其传输到控制系统。
主要功能
接收来自现场设备（如限位开关、按钮、接近开关等）的数字信号。
将这些信号传送给 Triconex 控制系统用于进一步的处理。
具备强大的信号隔离功能，保证信号的准确性和稳定性。
技术参数
输入点数：32 个单端输入或 16 个差分输入
输入电压：24 VDC（常见配置）
输入类型：支持湿接点和干接点输入
响应时间：满足大多数工业控制应用的需求
电气隔离：输入通道与系统侧有电气隔离，增强抗干扰能力
工作温度范围：-40℃ 至 70℃
存储温度范围：-40℃ 至 85℃
湿度范围：5% 至 95%（无冷凝）
模块特点
高可靠性：能够支持冗余系统架构，确保在故障情况下仍能提供可靠输入。
多种输入模式：支持单端输入和差分输入，兼容各种现场设备。
电气隔离：输入端与控制系统之间有隔离，确保系统的稳定性。
滤波功能：内置信号滤波，减少噪声干扰，提高信号的准确性。
易于维护：模块上有状态指示灯，便于进行故障排除和诊断。
英文资料：
TRICONEX DI2301 Digital Input Connection Module
Part number: 7400208-020
product type
Digital input module, commonly used in Triconex systems, is responsible for receiving digital input signals from field devices and transmitting them to the control system.
major function
Receive digital signals from on-site devices such as limit switches, buttons, proximity switches, etc.
Send these signals to the Triconex control system for further processing.
Equipped with powerful signal isolation function, ensuring the accuracy and stability of signals.
Technical Parameter
Input points: 32 single ended inputs or 16 differential inputs
Input voltage: 24 VDC (common configuration)
Input type: Supports wet contact and dry contact input
Response time: Meet the needs of most industrial control applications
Electrical isolation: The input channel is electrically isolated from the system side to enhance anti-interference capability
Working temperature range: -40 ℃ to 70 ℃
Storage temperature range: -40 ℃ to 85 ℃
Humidity range: 5% to 95% (without condensation)
Module Features
High reliability: capable of supporting redundant system architecture, ensuring reliable input in case of failure.
Multiple input modes: Supports single ended input and differential input, compatible with various field devices.
Electrical isolation: There is isolation between the input terminal and the control system to ensure system stability.
Filtering function: Built in signal filtering reduces noise interference and improves signal accuracy.
Easy to maintain: The module has status indicator lights for easy troubleshooting and diagnosis.

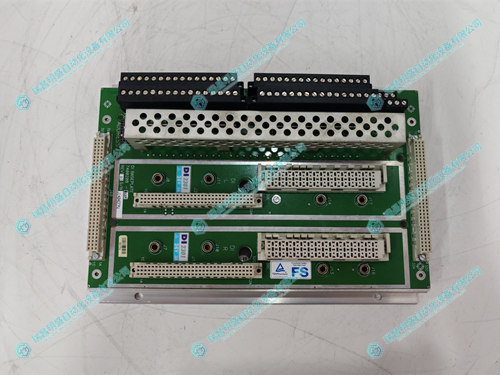

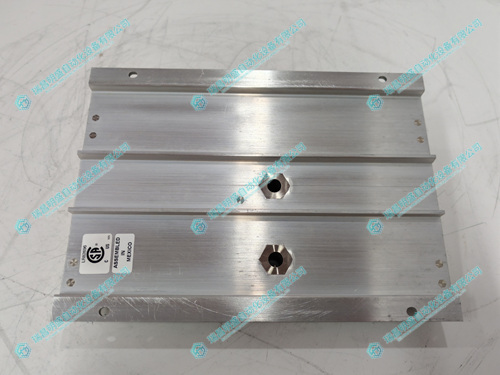

2.产 品 展 示
