ECPNC3-1 11150168481接口模块

ECPNC3-1 11150168481接口模块

1.产 品 资 料 介 绍：

1. 型号：ECPNC3-1（物料号：11150168481）
2. 品牌：B&R（贝加莱）
3. 类型：高速计数器与位置控制接口模块
4. 核心输入：1 路增量编码器输入，24 位高分辨率，输入频率可达50 kHz
5. 模拟输出：1 路 **±10 V** 模拟量输出，11 位分辨率
6. 编码器供电：支持 5–15 VDC 可调输出
7. 通信接口：双以太网口（10/100 Mbps），支持 Ethernet/IP、PROFINET、Modbus TCP 等工业协议
8. 处理器：工业级 ARM9 处理器，主频 400 MHz，保障高速运算
9. 存储配置：64 MB SDRAM、8 MB Data Flash、64 MB NAND Flash（可选扩展至 512 MB）
10. 扩展能力：100×2 针扩展接口，支持 JTAG 调试、UART（RS232/485/422）、GPIO 等
11. 物理规格：约 140 × 90 × 65 mm，重量 0.5 kg
12. 工作环境：宽温设计 -40°C 至 +85°C，抗震动，适应恶劣工业现场
13. 系统兼容：无缝适配贝加莱全系列 PLC 与控制系统，支持 Automation Studio 编程

ECPNC3-1 11150168481接口模块   英文资料：

ECPNC3-1 11150168481 is an industrial grade counter/position control interface module produced by B&R, a subsidiary of ABB Group. It integrates high-speed pulse acquisition, analog output, and multi protocol communication, and is a key component for position and speed control in automation systems.

Model: ECPNC3-1 (Material Number: 11150168481)

Brand: B&R (B&R)

Type: High speed counter and position control interface module

Core input: 1-channel incremental encoder input, 24 bit high-resolution, input frequency up to 50 kHz

Analog output: 1 channel * * ± 10 V * * analog output, 11 bit resolution

Encoder power supply: supports adjustable output of 5-15 VDC

Communication interface: Dual Ethernet ports (10/100 Mbps), supporting industrial protocols such as Ethernet/IP, PROFINET, Modbus TCP, etc

Processor: Industrial grade ARM9 processor, with a main frequency of 400 MHz, ensuring high-speed computing

Storage configuration: 64 MB SDRAM, 8 MB Data Flash, 64 MB NAND Flash (optional expansion to 512 MB)

Expansion capability: 100 × 2-pin expansion interface, supporting JTAG debugging, UART (RS232/485/422), GPIO, etc

Physical specifications: approximately 140 × 90 × 65 mm, weight 0.5 kg

Working environment: Wide temperature design -40 ° C to+85 ° C, anti vibration, suitable for harsh industrial sites

System compatibility: Seamless adaptation to the full range of Begale PLCs and control systems, supporting Automation Studio programming

In summary, ECPNC3-1 11150168481 relies on 50 kHz high-speed pulse acquisition, 24 bit high-precision counting, and ± 10 V simulation

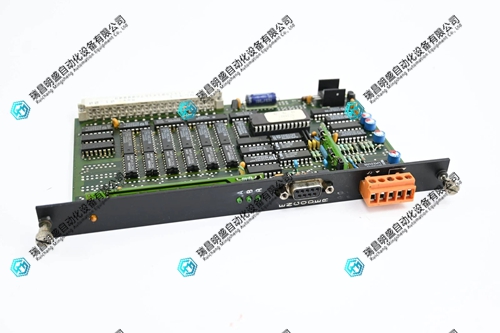

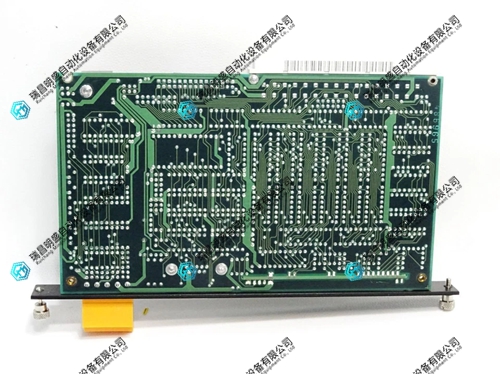

ECPNC3-1 11150168481接口模块  产品展示

产品视频
