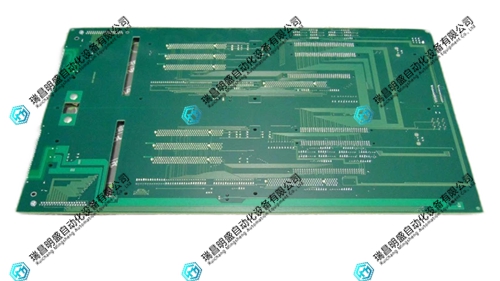

Westinghouse  3A99200G01控制器插槽机架背板

1.产 品 资 料 介 绍：

Westinghouse 3A99200G01 控制器插槽机架背板

1. 专为 Ovation 控制器机架设计，与 3A99199G01 电源背板配套使用。
2. 采用32 位 / 33MHz 工业 PCI 总线，保障卡件间高速数据传输。
3. 提供7–10 个标准 PCI 插槽（含控制器专用槽），兼容 Ovation 全系列 PCI 卡件。
4. 由 3A99199G01 供电，支持冗余电源输入，提升供电可靠性。
5. 背板阻抗匹配与信号完整性优化，强抗电磁干扰（EMI）。
6. 标准 Ovation 机架安装，金属结构，适配系统机柜。
7. 兼容 3A99200G02 等同系列背板，无缝适配 Ovation 系统软件。
8. 支持热插拔（需卡件与系统配合），在线维护不影响运行。
9. 工业级 PCB 与镀金触点，保障长期稳定运行。
10. 工作温度 **-20℃~+60℃**，适应严苛工业环境。
11. 尺寸约30×20×20cm，重量约 2kg，标准卡式安装。
12. 内置电源分配与总线仲裁，简化系统布线与扩展。
13. 通道间电气隔离，提升信号抗干扰与系统安全性。
14. 符合CE、UL等国际安全认证。
15. 已停产，市场以翻新 / 二手备件为主。

Westinghouse  3A99200G01控制器插槽机架背板 产品英文

Westinghouse 3A99200G01 Controller Slot Rack Backboard

Westinghouse 3A99200G01 is the PCI bus controller rack backplane of Emerson Ovation DCS system, providing physical slots, high-speed interconnection and power distribution for controllers, I/O and communication cards, and serving as the core hardware carrier of the system.

Specially designed for Ovation controller rack, used in conjunction with 3A99199G01 power backplane.

Adopting 32-bit/33MHz industrial PCI bus to ensure high-speed data transmission between cards.

Provide 7-10 standard PCI slots (including controller specific slots), compatible with Ovation's full range of PCI cards.

Powered by 3A99199G01, supporting redundant power input to enhance power supply reliability.

Backplane impedance matching and signal integrity optimization, strong resistance to electromagnetic interference (EMI).

Standard Ovation rack installation, metal structure, compatible with system cabinets.

Compatible with 3A99200G02 equivalent series backboards, seamlessly compatible with Ovation system software.

Support hot plugging (requires card and system coordination), online maintenance does not affect operation.

Industrial grade PCB and gold-plated contacts ensure long-term stable operation.

Working temperature range of * * -20 ℃~+60 ℃ * *, suitable for harsh industrial environments.

The size is about 30 × 20 × 20cm, the weight is about 2kg, and it is installed in a standard card style.

Built in power distribution and bus arbitration simplify system wiring and expansion.

Electrical isolation between channels enhances signal anti-interference and system safety.

Compliant with international safety certifications such as CE and UL.

Discontinued production, the market is dominated by refurbished/second-hand spare parts.

The Westinghouse 3A99200G01 backplane, with its highly reliable bus architecture, strong compatibility, and industrial grade design, has become the core interconnect unit of the Ovation system controller rack, ensuring stable expansion and efficient operation of the system.
