1.产 品 资 料 介 绍：
一、核心规格与结构
- 插槽数量：5 个标准 90-70 模块插槽，兼容全系列 IC697 模块。
- 安装方式：后置式（Rear Mount），面板 / 法兰安装，节省柜前空间。
- 供电：5V DC，最大 20A 背板供电；支持左侧独立电源模块，灵活扩容。
- 尺寸 / 重量：11.15×12.60×7.5 英寸（H×W×D），约 2kg。
- 外壳：开放式工业机箱，NEMA/UL 1/12/3R/4 防护，室内使用。
二、布线与散热设计
- 底部进线：底部布线腔，可容纳 40 根 #14 AWG 线缆，适配高密度 I/O。
- 对流散热：开放式风道设计，强制 / 自然风冷，0–60℃稳定运行。
- 背板兼容：标准 VME J2 背板，可选扩展套件，兼容冗余与远程 I/O 架构。
三、兼容性与扩展性
- 系列兼容：与 IC697CHS790/791 等机架通用模块、电源、通信卡。
- 扩展能力：可通过 Genius 总线 / 远程 I/O 模块级联，构建大型分布式系统。
- 应用场景：化工、电力、冶金、造纸等需要后置布线与高可靠 I/O 的场合。
四、产品优势
- 节省空间：后置安装 + 紧凑 5 槽，优化控制柜布局。
- 灵活供电：独立电源位，支持多机架冗余供电。
- 布线友好：底部进线，减少柜内干扰，便于维护。
- 工业可靠：宽温、强散热、高防护，适应恶劣工况。
IC697CHS750插槽机箱模块 英文资料：
IC697CHS750 is a 5-slot rear mounted I/O chassis from GE Fanuc 90-70 series, designed specifically for high-density, rear mounted distributed I/O expansion. It features compact installation, independent power supply, strong heat dissipation, and high compatibility.
1、 Core specifications and structure
Number of slots: 5 standard 90-70 module slots, compatible with the full range of IC697 modules.
Installation method: Rear Mount, panel/flange installation, saving space in front of the cabinet.
Power supply: 5V DC, maximum 20A backplane power supply; Support left independent power module, flexible expansion.
Size/Weight: 11.15 x 12.60 x 7.5 inches (H x W x D), approximately 2kg.
Shell: Open industrial chassis, NEMA/UL 1/12/3R/4 protection, indoor use.
2、 Wiring and heat dissipation design
Bottom inlet: Bottom wiring cavity, capable of accommodating 40 # 14 AWG cables, suitable for high-density I/O.
Convection heat dissipation: Open air duct design, forced/natural air cooling, stable operation from 0-60 ℃.
Backplane compatibility: Standard VME J2 backplane, optional expansion kit, compatible with redundant and remote I/O architectures.
3、 Compatibility and Scalability
Series compatibility: compatible with rack universal modules, power supplies, and communication cards such as IC697CHS790/791.
Scalability: Large distributed systems can be built through cascading Genius bus/remote I/O modules.
Application scenarios: chemical, power, metallurgical, papermaking and other applications that require post wiring and high reliability I/O.
4、 Product advantages
Space saving: rear installation+compact 5 slots, optimized control cabinet layout.
Flexible power supply: independent power supply position, supporting redundant power supply for multiple racks.
Wiring friendly: Bottom entry reduces interference inside the cabinet and is easy to maintain.
Industrial reliability: wide temperature range, strong heat dissipation, high protection, suitable for harsh working conditions.

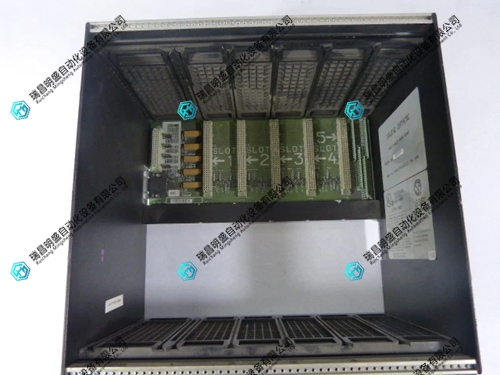

IC697CHS750插槽机箱模块 产品展示
产品视频
