1.产 品 资 料 介 绍：
核心参数
- 通道与信号：16 点单组输入，支持 120VAC（47–63Hz），输入范围 0–132VAC。
- 电气性能：每通道最大输入电流 15mA；通道与逻辑侧连续隔离 250VAC、1 分钟耐压 1500VAC。
- 阈值与响应：导通 70–120VAC、关断 0–20VAC；导通典型 12ms / 最大 20ms，关断典型 25ms / 最大 40ms。
- 供电与功耗：由 BIU 提供 24VDC，取电最大 77mA。
- 状态与诊断：每通道 1 个 LED + 1 个 PWR 电源灯，便于快速状态判断。
- 环境与安装：工作温度 -40℃ 至 70℃，IP20 防护；标准 DIN 导轨安装，适配 Genius 总线背板。
- 安全认证：UL、CE、CSA 认证，满足工业控制安全标准。
关键特性
- 高隔离抗干扰，适配复杂电磁环境。
- 每通道独立 LED 诊断，快速定位故障。
- 宽温设计，耐恶劣工况，长期稳定运行。
- 与 IC670GBI002 等 BIU 无缝兼容，扩展灵活。
典型应用
与 IC670MDL240J 差异
- 隔离耐压：240K 为 250VAC 连续 / 1500VAC 1 分钟，240J 为 1500VAC 隔离。
- 工作温度：240K 覆盖 -20℃ 至 60℃，240J 为 -40℃ 至 70℃，240J 宽温适应性更强。
IC670MDL240K输入模块 产品英文
IC670MDL240K is a 16 channel 120VAC isolated discrete input module from GE Fanuc Field Control series, designed specifically for industrial field AC switch signal acquisition and compatible with Genius bus systems.
Core parameters
Channel and signal: 16 point single group input, supporting 120VAC (47-63Hz), input range 0-132VAC.
Electrical performance: The maximum input current per channel is 15mA; the channel is continuously isolated from the logic side at 250VAC and can withstand 1500VAC for 1 minute.
Threshold and response: turn on 70-120VAC, turn off 0-20VAC; Typical conduction time is 12ms/maximum 20ms, and typical shutdown time is 25ms/maximum 40ms.
Power supply and power consumption: 24VDC is provided by BIU, with a maximum power consumption of 77mA.
Status and diagnosis: 1 LED+1 PWR power light per channel for quick status assessment.
Environment and Installation: Operating Temperature -40 ℃ to 70 ℃, IP20 Protection; Standard DIN rail installation, compatible with Genius bus backplane.
Safety certification: UL, CE, CSA certification, meeting industrial control safety standards.
Key Features
Highly isolated and anti-interference, suitable for complex electromagnetic environments.
Each channel has independent LED diagnosis to quickly locate faults.
Wide temperature design, resistant to harsh working conditions, and long-term stable operation.
Seamless compatibility with BIUs such as IC670GBI002, flexible expansion.
Typical Applications
Button, travel switch, relay contact, AC sensor signal acquisition; Motor start stop, valve position, safety door, alarm status monitoring; Automation systems for manufacturing, power, chemical, water treatment, and other industries.
Differences from IC670MDL240J
Isolation withstand voltage: 240K is 250VAC continuous/1500VAC for 1 minute, 240J is 1500VAC isolated.
Working temperature: 240K covers -20 ℃ to 60 ℃, 240J covers -40 ℃ to 70 ℃, and 240J has stronger temperature adaptability.

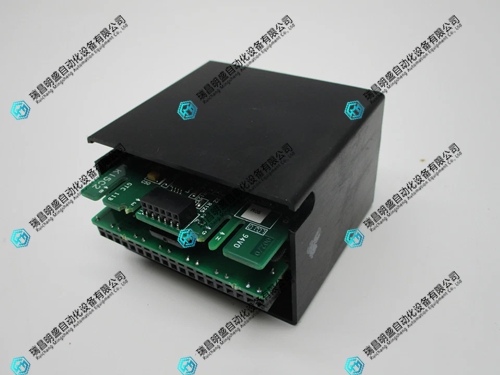

IC670MDL240K输入模块 产品展示
产品视频
