193X725ABG01脉冲发生器

GE  193X725ABG01脉冲发生器

1.产 品 资 料 介 绍：

中文资料：

一、产品简介
GE 193X725ABG01 脉冲发生器是 GE（通用电气）193X 系列中的一款重要模块，专为工业自动化、控制系统以及信号处理应用设计。该模块用于生成精确的脉冲信号，广泛应用于电机控制、传感器采集、信号调节等领域。

二、核心功能

1. 精确脉冲生成：能够产生高精度的脉冲信号，支持多种脉冲频率和宽度设置，确保信号稳定输出。

2. 脉冲输出控制：根据输入条件或外部信号，调节脉冲输出的频率、幅度或脉冲宽度。

3. 信号同步：支持与其他模块或设备的同步操作，确保各部分协同工作，特别适用于复杂的控制系统中。

4. 高频脉冲输出：适合高速控制与检测应用，脉冲频率可以达到数百 kHz。

5. 外部触发功能：支持外部触发信号输入，用于控制脉冲发生的时机。

6. 信号处理与调节：内置信号调节电路，能够对输出的脉冲信号进行放大、衰减或滤波，满足不同应用需求。

三、技术参数（典型值）

• 输入电压：AC 220V 或 DC 24V（可根据系统需求配置）

• 输出信号类型：脉冲信号（可调频率、可调宽度）

• 输出频率：从几 Hz 到几百 kHz（具体范围取决于型号配置）

• 输出波形：方波、脉冲波

• 精度：脉冲频率误差 ≤ 0.1%，脉冲宽度误差 ≤ 0.5%

• 过载保护：内置短路、过电流、过电压保护电路

• 工作温度范围：-10°C ～ +60°C

• 尺寸：符合 193X 系列标准插卡式结构（大约 25 × 15 cm）

四、应用领域

• 电机控制：用于电机驱动系统中的脉冲信号生成，确保电机精确控制。

• 信号处理与调节：为各种工业自动化系统提供精准的时序控制信号。

• 传感器应用：用于精密传感器数据采集和信号传递。

• 测量与测试设备：在测试和测量系统中提供稳定的信号源，进行设备校准或数据分析。

• 通信系统：可用于调制解调、时序控制等通信系统中的脉冲信号生成。

英文资料：

Brief introduction

The GE 193X725ABG01 pulse generator is an important module in the GE 193X series, designed specifically for industrial automation, control systems, and signal processing applications. This module is used to generate accurate pulse signals and is widely used in fields such as motor control, sensor acquisition, and signal conditioning.

2、 Core functions

Accurate pulse generation: capable of generating high-precision pulse signals, supporting multiple pulse frequency and width settings to ensure stable signal output.

Pulse output control: Adjust the frequency, amplitude, or pulse width of the pulse output based on input conditions or external signals.

Signal synchronization: supports synchronous operation with other modules or devices, ensuring that all parts work together, especially suitable for complex control systems.

High frequency pulse output: suitable for high-speed control and detection applications, with pulse frequencies up to several hundred kHz.

External triggering function: supports external triggering signal input, used to control the timing of pulse occurrence.

Signal processing and adjustment: Equipped with a built-in signal adjustment circuit, it can amplify, attenuate, or filter the output pulse signal to meet different application requirements.

3、 Technical parameters (typical values)

Input voltage: AC 220V or DC 24V (can be configured according to system requirements)

Output signal type: pulse signal (adjustable frequency, adjustable width)

Output frequency: from a few Hz to several hundred kHz (specific range depends on model configuration)

Output waveform: square wave, pulse wave

Accuracy: Pulse frequency error ≤ 0.1%, pulse width error ≤ 0.5%

Overload protection: built-in short circuit, overcurrent, and overvoltage protection circuits

Working temperature range: -10 ° C to+60 ° C

Size: Compliant with the 193X series standard plug-in card structure (approximately 25 × 15 cm)

4、 Application Fields

Motor control: used for generating pulse signals in motor drive systems to ensure precise control of the motor.

Signal processing and regulation: providing precise timing control signals for various industrial automation systems.

Sensor application: Used for precision sensor data acquisition and signal transmission.

Measurement and testing equipment: Provide a stable signal source in testing and measurement systems for equipment calibration or data analysis.

Communication system: can be used for pulse signal generation in communication systems such as modulation and demodulation, timing control, etc.

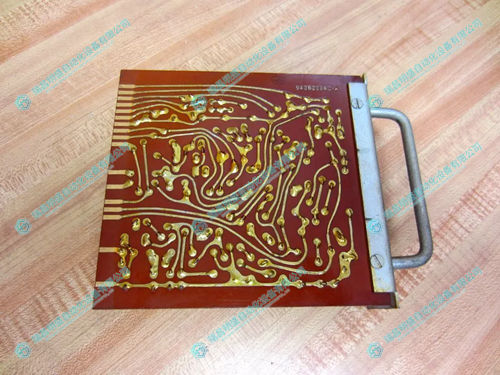

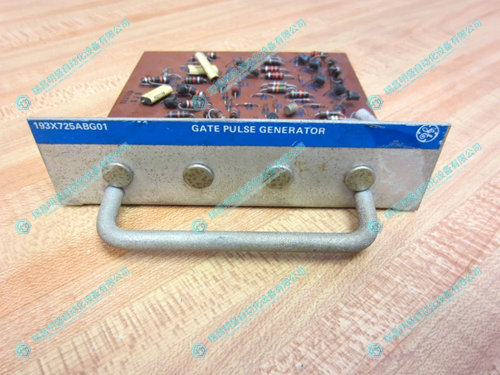

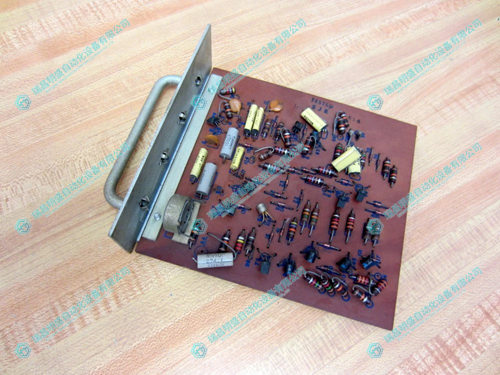

2.产      品      展      示
