193X725AAG01发电机卡

GE  193X725AAG01发电机卡

1.产 品 资 料 介 绍：

中文资料：

一、产品简介
GE 193X725AAG01 发电机卡是 GE（通用电气）193X 系列中的一款重要模块，专门用于发电机控制系统。该模块用于采集发电机的工作状态和性能参数，并将其转换为系统所需的控制信号。它通常用于电厂、风电、船舶以及其他需要发电机监控和控制的应用环境中。

二、核心功能

1. 发电机参数采集：实时采集发电机的工作参数，如输出电压、电流、频率、转速等。

2. 状态监测：监测发电机的状态，包括负载、电流波动、温度等，确保发电机的安全运行。

3. 信号处理与转换：将采集到的模拟信号转换为数字信号，或将数字信号转换为可操作的控制信号。

4. 保护功能：具备短路保护、过载保护、过压保护等功能，防止发电机出现异常时损坏。

5. 通信功能：支持与控制系统的其他模块进行通信，提供实时反馈，确保发电机的协调运行。

6. 数据记录与诊断：可记录关键操作数据，支持故障诊断、报警和维护指示，帮助工作人员及时发现潜在问题。

三、技术参数（典型值）

• 输入电压范围：AC 220V 或 DC 24V（根据应用要求配置）

• 输入信号类型：模拟信号（电压、电流、频率等），数字信号（开关量输入）

• 输出信号类型：标准化模拟信号（如 0-10V、4-20mA）、数字信号输出

• 工作频率：50Hz/60Hz（自动适应）

• 精度：模拟信号精度 ±0.1%，数字信号误差 ≤ 0.5%

• 过载保护：支持短路保护、过电流保护、过压保护

• 工作温度范围：-10°C ～ +60°C

• 尺寸：符合 193X 系列标准插卡式结构（大约 25 × 15 cm）

四、应用领域

• 发电厂：用于发电机的监控和控制，确保发电机系统的安全与稳定运行。

• 风力发电：对风电机组的发电机进行监控和保护，确保发电效率和设备安全。

• 船舶控制系统：用于船舶发电机的运行监控，优化电力系统的管理。

• 工业自动化：在工业生产中为各类发电机提供实时监测和控制。

• 军事与应急备用电源：在应急发电机系统中，确保电力供应的可靠性和持续性。

英文资料：

Brief introduction

The GE 193X725AAG01 generator card is an important module in the GE 193X series, specifically designed for generator control systems. This module is used to collect the working status and performance parameters of the generator, and convert them into the control signals required by the system. It is commonly used in power plants, wind power, ships, and other application environments that require generator monitoring and control.

2、 Core functions

Generator parameter collection: Real time collection of working parameters of the generator, such as output voltage, current, frequency, speed, etc.

Status monitoring: Monitor the status of the generator, including load, current fluctuations, temperature, etc., to ensure the safe operation of the generator.

Signal processing and conversion: Convert the collected analog signals into digital signals, or convert digital signals into operable control signals.

Protection function: It has short-circuit protection, overload protection, overvoltage protection and other functions to prevent damage to the generator in case of abnormalities.

Communication function: Supports communication with other modules of the control system, provides real-time feedback, and ensures the coordinated operation of the generator.

Data recording and diagnosis: It can record key operational data, support fault diagnosis, alarm and maintenance instructions, and help staff discover potential problems in a timely manner.

3、 Technical parameters (typical values)

Input voltage range: AC 220V or DC 24V (configured according to application requirements)

Input signal type: analog signal (voltage, current, frequency, etc.), digital signal (switch input)

Output signal type: standardized analog signal (such as 0-10V, 4-20mA), digital signal output

Operating frequency: 50Hz/60Hz (automatic adaptation)

Accuracy: Analog signal accuracy ± 0.1%, digital signal error ≤ 0.5%

Overload protection: supports short circuit protection, overcurrent protection, and overvoltage protection

Working temperature range: -10 ° C to+60 ° C

Size: Compliant with the 193X series standard plug-in card structure (approximately 25 × 15 cm)

4、 Application Fields

Power plant: used for monitoring and controlling generators to ensure the safe and stable operation of the generator system.

Wind power generation: Monitor and protect the generators of wind turbines to ensure power generation efficiency and equipment safety.

Ship control system: used for monitoring the operation of ship generators and optimizing the management of power systems.

Industrial automation: providing real-time monitoring and control for various generators in industrial production.

Military and emergency backup power supply: Ensure the reliability and continuity of power supply in emergency generator systems.

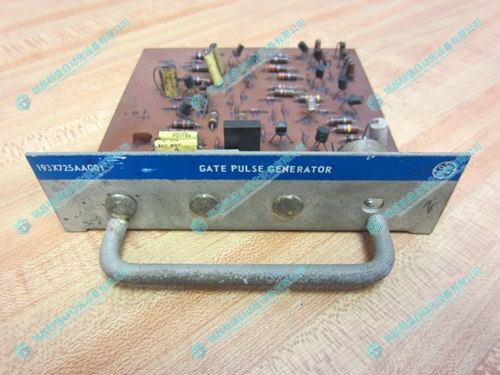

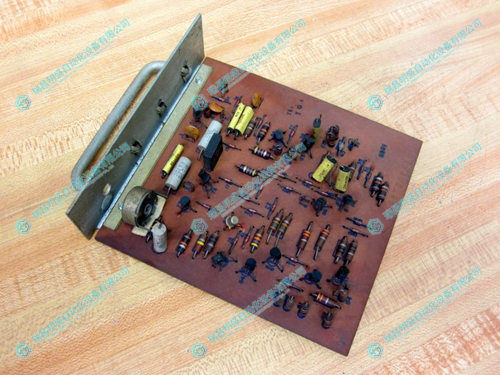

2.产      品      展      示
