1.产 品 资 料 介 绍：
产品特点（15 条）
- 系统适配：独家适配 KUKA KRC2 ED05 控制柜，与 MFC3 主板、CI3 总线模块完全兼容，无兼容性冗余。
- 核心定位：集编程、示教、调试、监控、安全控制于一体，是 KRC2 ED05 系统的唯一标配手持操作单元。
- 显示规格：搭载8 英寸彩色 TFT LCD 屏，分辨率 640×480（VGA），图形化界面清晰呈现程序、坐标、报警与 I/O 状态。
- 操作布局：采用薄膜键盘 + 6D 鼠标组合，搭配模式选择、伺服启停、急停等物理按键，兼顾精准操控与盲操作效率。
- 通信架构：主通信为CAN 总线（传输按键与安全状态），显示数据通过独立高速串口传输，双重通道保障通信稳定。
- 安全体系：集成双通道急停按钮、三位置使能开关（Deadman），符合 EN ISO 10218 工业机器人安全标准，强制保障人机安全。
- 模式切换：支持 **T1（手动低速）、T2（手动高速）、AUT（自动）** 三模式，旋钮式切换，适配从调试到量产的全场景需求。
- 接口配置：配备RJ45 以太网、9 针 D-Sub、DIN 插座，支持程序备份归档、外接 MF II 键盘与外设扩展。
- 供电设计：由控制柜通过专用连接线缆24V DC 直供，功耗≤10W，无需独立电源，简化现场布线。
- 程序管理：支持程序的创建、编辑、复制、删除、备份与恢复，支持在线修改运动参数与逻辑，大幅提升调试效率。
- 诊断能力：实时显示机器人坐标、速度、负载、跟踪误差、报警代码，内置故障定位指引，缩短维修停机时间。
- 防护性能：前面板IP65防护，防油、防尘、防冷却液溅洒；外壳为高强度工程塑料，抗跌落、抗冲击。
- 人机工程：人体工学曲面设计，重心贴合手持姿势，重量优化至约 3.8kg，长时间操作不易疲劳。
- 环境适应：工作温度0–50℃，存储温度 **-20–60℃**，宽温运行，适配汽车制造、焊接等恶劣工业场景。
- 认证合规：通过CE、UL、cUL认证，符合 RoHS 环保要求，满足全球工业现场准入标准。
KCP2 00-131-239控制面板 英文资料：
KCP2 00-131-239 is a standard handheld teaching pendant tailored by KUKA for the KRC2 ED05 control cabinet. It belongs to the core model of KCP2 series and is used for robot programming teaching, manual control, status monitoring and safety intervention. It achieves high reliability communication with the controller through CAN bus and is the core human-machine interaction terminal for KRC2 ED05 workstation debugging and production operation.
Product features (15 items)
System adaptation: Exclusive adaptation to KUKA KRC2 ED05 control cabinet, fully compatible with MFC3 motherboard and CI3 bus module, with no compatibility redundancy.
Core positioning: Integrating programming, teaching, debugging, monitoring, and safety control, it is the only standard handheld operating unit for the KRC2 ED05 system.
Display specifications: Equipped with an 8-inch color TFT LCD screen with a resolution of 640 × 480 (VGA), the graphical interface clearly presents programs, coordinates, alarms, and I/O status.
Operation layout: Using a combination of film keyboard and 6D mouse, combined with physical buttons such as mode selection, servo start stop, emergency stop, etc., to balance precise control and blind operation efficiency.
Communication architecture: The main communication is the CAN bus (transmitting keys and security status), and display data is transmitted through an independent high-speed serial port, with dual channels ensuring stable communication.
Safety system: Integrated dual channel emergency stop button and three position enable switch (Deadman), in compliance with EN ISO 10218 industrial robot safety standards, ensuring mandatory human-machine safety.
Mode switching: support * * T1 (manual low speed), T2 (manual high speed), AUT (automatic) * * three modes, knob switching, adapt to the full scene requirements from debugging to mass production.
Interface configuration: Equipped with RJ45 Ethernet, 9-pin D-Sub, DIN socket, supporting program backup and archiving, external MF II keyboard and peripheral expansion.
Power supply design: 24V DC direct power supply is provided by the control cabinet through a dedicated connection cable, with a power consumption of ≤ 10W, without the need for an independent power supply, simplifying on-site wiring.
Program management: supports program creation, editing, copying, deletion, backup, and recovery, supports online modification of motion parameters and logic, greatly improving debugging efficiency.
Diagnostic capability: Real time display of robot coordinates, speed, load, tracking error, alarm codes, built-in fault location guidance, and reduced maintenance downtime.
Protection performance: IP65 protection for the front panel, preventing oil, dust, and coolant splashing; The shell is made of high-strength engineering plastic, which is resistant to falling and impact.
Human engineering: Ergonomic curved design, center of gravity fits handheld posture, weight optimized to about 3.8kg, and not easily fatigued during long-term operation.
Environmental adaptation: Operating temperature of 0-50 ℃, storage temperature of * * -20-60 ℃ * *, wide temperature operation, suitable for harsh industrial scenarios such as automotive manufacturing and welding.
Certification compliance: Passed CE, UL, cUL certifications, meets RoHS environmental requirements, and meets global industrial site access standards.

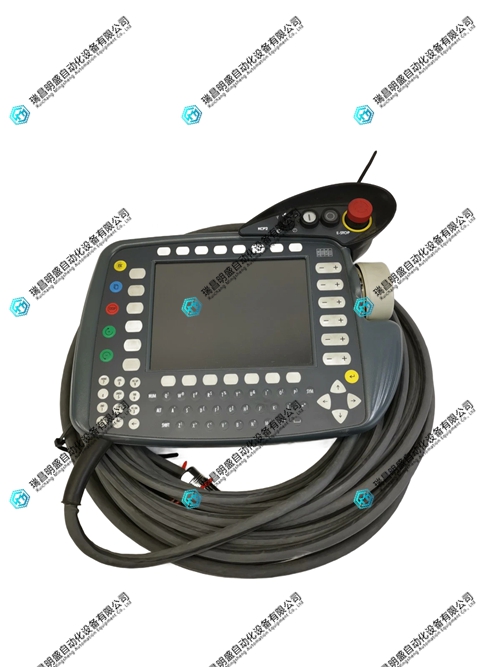

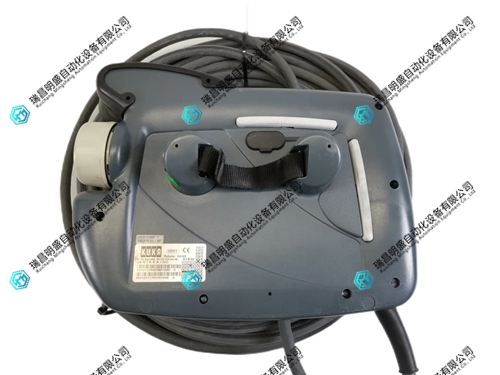

KCP2 00-131-239控制面板 产品展示
