MOOG G631伺服阀
1.产 品 资 料 介 绍：
- 两级电液放大架构：Moog G631 采用先导级与输出级组合的两级设计，先导级由干式力矩马达驱动双喷嘴挡板阀，通过低摩擦结构提升响应灵敏度；输出级为四通滑阀，借助悬臂弹簧杆实现阀芯位置机械反馈，相比直动式设计在大流量场景下更具控制稳定性。
- 标准化集成设计：安装底面符合 ISO 4401 标准，可直接适配工业设备的标准化阀块接口，部分型号提供第五油口选项，支持独立先导油源控制，灵活满足不同液压系统的集成需求，降低改装成本。
- 维护友好型结构：先导阀配备可现场更换的圆盘过滤器，无需拆解阀体即可完成滤芯维护，减少液压油污染导致的故障风险；阀芯与阀套采用精密配合工艺，组件互换性强，缩短停机维修时间。
- 宽量程压力流量适配：供油口最大工作压力可达 31.5MPa（部分型号支持 35MPa），在 7MPa 压降下额定流量覆盖 3.8-76L/min，最大流量可至 150L/min，能匹配从精密测试设备到重型液压执行机构的多功率需求。
- 高动态响应特性：100% 阶跃响应时间仅 10-15ms（210bar 工况下），频率响应达 40-60Hz，干式力矩马达的低摩擦设计大幅降低信号滞后，可快速跟随指令调整流量，适配高速运动控制场景。
- 高精度控制指标：滞环误差低于 0.5%，分辨率优于 0.1%，通过机械反馈闭环确保阀芯位移与输入电流精准对应，在压力、速度闭环控制系统中可实现微米级调节精度。
- 伺服放大器精准匹配：需搭配外部伺服放大器使用，适配 ±15mA 或 ±50mA 额定控制信号，与 Moog 0062 系列等放大器的电流输出特性高度兼容，通过放大器的 PWM 驱动与双闭环控制，进一步提升系统整体精度。
- 恶劣环境耐受能力：油液与环境温度适应范围宽达 - 29℃至 135℃，阀体采用高强度合金材料，可抵御振动、冲击及液压油污染影响，适配航空航天测试台、汽车制造等严苛工况。
MOOG G631伺服阀 英文资料：
1、 Infrastructure and Design Characteristics
Two stage electro-hydraulic amplification architecture: Moog G631 adopts a two-stage design combining a pilot stage and an output stage. The pilot stage is driven by a dry torque motor to form a dual nozzle baffle valve, which enhances response sensitivity through a low friction structure; The output stage is a four-way slide valve, which uses a cantilever spring rod to achieve mechanical feedback of the valve core position. Compared with the direct acting design, it has more control stability in high flow scenarios.
Standardized integrated design: The installation bottom meets the ISO 4401 standard and can directly adapt to the standardized valve block interface of industrial equipment. Some models offer a fifth oil port option and support independent pilot oil source control, flexibly meeting the integration needs of different hydraulic systems and reducing modification costs.
Maintenance friendly structure: The pilot valve is equipped with a disc filter that can be replaced on site, and the filter element maintenance can be completed without disassembling the valve body, reducing the risk of failure caused by hydraulic oil pollution; The valve core and valve sleeve adopt precision matching technology, with strong component interchangeability, which shortens the downtime for maintenance.
2、 Core performance and control accuracy
Wide range pressure and flow adaptation: The maximum working pressure of the oil supply port can reach 31.5MPa (some models support 35MPa), and the rated flow rate covers 3.8-76L/min under a pressure ｄｒｏｐ of 7MPa. The maximum flow rate can reach 150L/min, which can match the multi power requirements from precision testing equipment to heavy-duty hydraulic actuators.
High dynamic response characteristics: The 100% step response time is only 10-15ms (under 210bar operating conditions), and the frequency response reaches 40-60Hz. The low friction design of the dry torque motor greatly reduces signal lag and can quickly adjust the flow rate according to instructions, adapting to high-speed motion control scenarios.
High precision control indicators: hysteresis error less than 0.5%, resolution better than 0.1%, mechanical feedback closed-loop ensures accurate correspondence between valve core displacement and input current, and micrometer level adjustment accuracy can be achieved in pressure and speed closed-loop control systems.
3、 Adaptability and System Collaboration
Precise matching of servo amplifier: It needs to be used in conjunction with an external servo amplifier to adapt to ± 15mA or ± 50mA rated control signals. It is highly compatible with the current output characteristics of amplifiers such as Moog 0062 series, and further improves the overall accuracy of the system through PWM drive and dual closed-loop control of the amplifier.
Endurance to harsh environments: The oil and environmental temperature can adapt to a wide range of -29 ℃ to 135 ℃. The valve body is made of high-strength alloy material, which can resist vibration, impact, and hydraulic oil pollution, and is suitable for harsh working conditions such as aerospace test benches and automotive manufacturing.

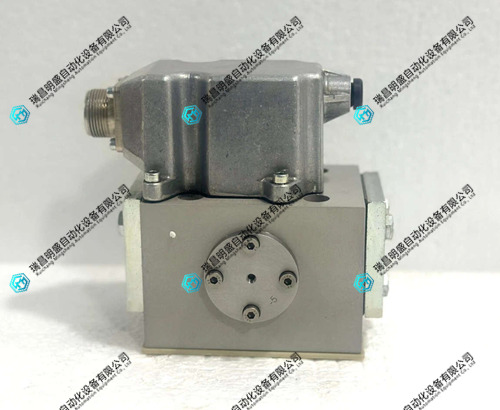

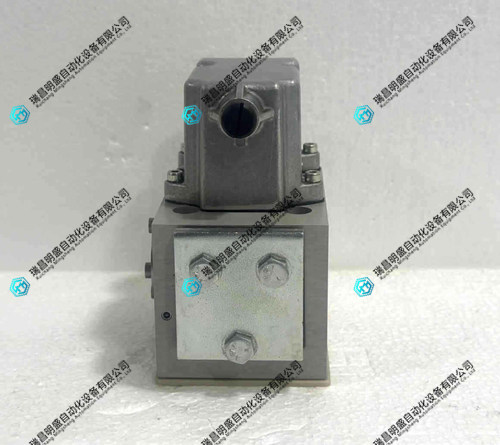

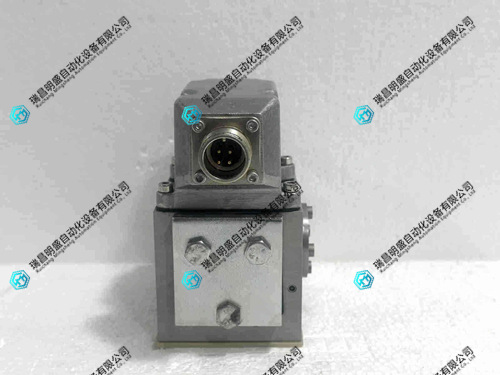

MOOG 0G631伺服阀 产品展示
