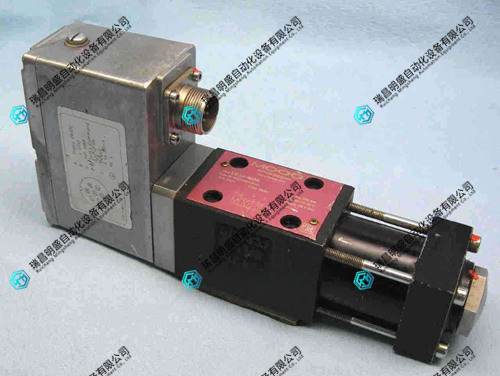

MOOG D633-322B伺服阀
1.产 品 资 料 介 绍：
- 直动式 DDV 驱动架构：MOOG D633-322B 采用直动式（DDV）设计，由永磁线性力马达直接驱动阀芯，取消传统伺服阀的喷嘴挡板先导级，无需外部先导油源即可实现双向位移控制。这种结构减少 30% 以上的传动环节，不仅使阀体更紧凑，还大幅降低信号滞后，适配对响应速度要求严苛的闭环控制系统。
- 集成化电子控制模块：内置阀芯位置控制电路板与脉宽调制（PWM）驱动电路，将信号处理、功率放大与阀芯反馈功能集成于一体。电路板采用 SMD 贴片技术，支持 24V DC 宽压输入（18-32V DC），可直接接收外部控制指令，简化系统布线与集成流程。
- 抗污染精密结构：阀芯与阀套采用 AISI 440C 马氏体不锈钢材质，经精密研磨后配合间隙小于 1μm，表面硬化处理使耐磨性提升 3 倍。内置 10μm 过滤级滤芯，可耐受 NAS 6 级污染度液压油，配合可更换防尘密封圈，显著降低恶劣环境下的故障风险。
- 高压大流量输出能力：最大工作压力可达 35MPa，在 7MPa 阀压降条件下额定流量覆盖 3.8-100L/min，能为冶金设备油缸、液压试验台作动器等提供充足动力。即便在 1-5bar 低压差工况下，仍可保持稳定流量输出，适配多压力等级场景。
- 高频响动态响应：频率响应宽达 40-60Hz（±100% 输入信号），100% 阶跃响应时间≤15ms，部分工况下可低至 5ms。线性力马达的低摩擦特性与闭环控制结合，能快速跟随指令变化，有效抑制液压系统的动态滞后。
- 微米级控制精度：分辨率≤0.1%，滞环误差低于 0.2%，通过线性位置传感器（LVDT）实现阀芯位置实时反馈，形成电闭环控制。最小可控流量低至 0.1L/min，可满足半导体设备微进给、精密压力调节等精细化需求。
MOOG D633-322B伺服阀 英文资料：
1、 Infrastructure and Design Characteristics
Direct acting DDV drive architecture: MOOG D633-322B adopts a direct acting (DDV) design, with a permanent magnet linear force motor directly driving the valve core, eliminating the traditional servo valve nozzle baffle pilot stage, and achieving bidirectional displacement control without the need for an external pilot oil source. This structure reduces transmission links by more than 30%, making the valve body more compact and significantly reducing signal lag, making it suitable for closed-loop control systems with strict response speed requirements.
Integrated electronic control module: Built in valve core position control circuit board and pulse width modulation (PWM) drive circuit, integrating signal processing, power amplification, and valve core feedback functions. The circuit board adopts SMD chip technology and supports 24V DC wide voltage input (18-32V DC), which can directly receive external control instructions, simplifying system wiring and integration processes.
Anti pollution precision structure: The valve core and valve sleeve are made of AISI 440C martensitic stainless steel material. After precision grinding, the fit clearance is less than 1 μ m, and surface hardening treatment increases wear resistance by three times. Built in 10 μ m filter element, capable of withstanding NAS level 6 pollution hydraulic oil, and equipped with replaceable dust seals, significantly reducing the risk of failure in harsh environments.
2、 Core performance and control accuracy
High pressure and high flow output capability: The maximum working pressure can reach 35MPa, and the rated flow covers 3.8-100L/min under 7MPa valve pressure ｄｒｏｐ conditions. It can provide sufficient power for metallurgical equipment oil cylinders, hydraulic test bench actuators, etc. Even under low pressure differential conditions of 1-5 bar, stable flow output can still be maintained, suitable for multiple pressure level scenarios.
High frequency dynamic response: The frequency response is as wide as 40-60Hz (± 100% input signal), with a 100% step response time of ≤ 15ms, and can be as low as 5ms under some operating conditions. The low friction characteristics of linear force motors combined with closed-loop control can quickly follow command changes and effectively suppress dynamic hysteresis in hydraulic systems.
Micron level control accuracy: resolution ≤ 0.1%, hysteresis error below 0.2%, real-time feedback of valve core position is achieved through linear position sensor (LVDT), forming an electric closed-loop control. The minimum controllable flow rate is as low as 0.1L/min, which can meet the refined needs of semiconductor equipment such as micro feed and precision pressure regulation.
