ATLAS COPCO TC52P-N-DECTLM控制器驱动单元

Atlas Copco TC52P-N-DECTLM控制器驱动单元

1.产 品 资 料 介 绍：

一、产品简介

TC52P-N-DECTLM 是 Atlas Copco TC5000 系列中的一款高性能 控制器驱动单元，主要用于控制和驱动多轴伺服紧固工具。该型号结合了电源管理、控制逻辑和通信接口于一体，具备高度模块化和可扩展性，是工业级多通道拧紧系统的核心控制模块。

其型号解读如下：

• TC52P：属于 TC5000 系列，支持 PROFIBUS 通信

• N：可能代表 单通道或无附加模块（具体依应用版本）

• DECTLM：内部模块编号，表示该驱动单元具备专用伺服控制逻辑模块（DECT = Drive & Electronic Control Terminal Module）

二、功能与特性

• 控制器类型：电动紧固工具伺服控制与驱动单元

• 支持工具类型：Atlas Copco 多轴拧紧系统、伺服螺丝刀、内嵌式电机工具

• 通信接口：PROFIBUS（兼容西门子等主流PLC）

• 主要功能：

  • 实时扭矩与角度控制

  • 支持动态紧固流程、多步工艺

  • 拧紧曲线分析、数据记录与追溯

  • 支持工具身份识别、程序切换

• 系统结构：

  • 集成电源控制、逻辑处理、伺服信号输出

  • 可配置多通道模块，便于系统扩展

• 保护功能：过热保护、短路保护、通信故障报警、冗余电源接口

• 安装方式：标准19英寸机柜安装或控制柜嵌入式

英文资料：

Brief introduction

TC52P-N-DECTLM is a high-performance controller driver unit in the Atlas Copco TC5000 series, mainly used to control and drive multi axis servo fastening tools. This model combines power management, control logic, and communication interfaces, with high modularity and scalability, and is the core control module of industrial grade multi-channel tightening systems.

The model interpretation is as follows:

TC52P: belongs to the TC5000 series and supports PROFIBUS communication

N: May represent a single channel or no additional modules (depending on the application version)

DECTLM: Internal module number, indicating that the drive unit has a dedicated servo control logic module (DECT=Drive&Electronic Control Terminal Module)

2、 Function and Features

Controller type: Electric fastening tool servo control and drive unit

Supported tool types: Atlas Copco multi axis tightening system, servo screwdriver, embedded motor tool

Communication interface: PROFIBUS (compatible with mainstream PLCs such as Siemens)

Main functions:

Real time torque and angle control

Support dynamic fastening process and multi-step technology

Tightening curve analysis, data recording, and traceability

Support tool identity recognition and program switching

System structure:

Integrated power control, logic processing, servo signal output

Configurable multi-channel module for easy system expansion

Protection functions: overheating protection, short circuit protection, communication fault alarm, redundant power interface

Installation method: Standard 19 inch cabinet installation or embedded control cabinet

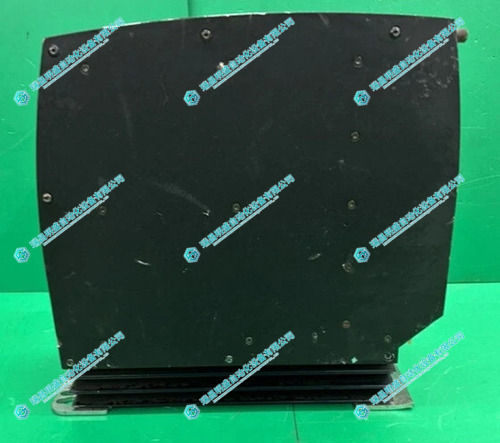

2.产      品      展      示
