Gasonics 943-0046-02 LCD 组件
1.产 品 资 料 介 绍：
产品名称
Gasonics 943-0046-02 LCD 显示组件
（英文：LCD Display Assembly）
一、产品概述
Gasonics 943-0046-02 是应用于 Gasonics 系列等离子体设备上的 液晶显示组件，通常作为人机界面（HMI）的一部分，安装于设备前面板或控制台，用于显示工艺参数、报警信息、菜单操作界面等关键内容。该模块通过系统控制板接收数据并实时显示，为操作员提供直观的设备状态反馈。
二、技术参数
显示类型：液晶显示器（LCD）
屏幕规格：
通常为单色或灰阶字符型 LCD（具体型号可能为图形点阵或字符型）
典型字符行列配置如 4x20 或 2x40（依版本不同）
接口方式：
平面排线连接至主控板或显示控制卡
通讯方式可能为并口或串口（如 RS232、SPI）
供电电压：+5V DC 或 +12V DC（取决于背光与控制电路）
控制电路：可能集成显示驱动芯片（如 HD44780 或兼容器件）
面板安装：
带有固定螺孔，可安装于机壳前面板
面板可能配有透明防护窗口
背光选项：
带 LED 背光（绿色、蓝色或琥珀色）便于暗光环境下读取
使用寿命：工业等级 LCD，典型工作寿命 > 20,000 小时
英文资料：
product name
Gasonics 943-0046-02 LCD Display Component
(English: LCD Display Assembly)
1、 Product Overview
Gasonics 943-0046-02 is a liquid crystal display component applied to Gasonics series plasma equipment, usually installed as part of the human-machine interface (HMI) on the front panel or console of the equipment, used to display key content such as process parameters, alarm information, menu operation interface, etc. This module receives data through the system control board and displays it in real-time, providing operators with intuitive feedback on equipment status.
2、 Technical parameters
Display type: Liquid Crystal Display (LCD)
Screen specifications:
Usually monochrome or grayscale character LCD (specific models may be graphic dot matrix or character type)
Typical character row and column configurations such as 4x20 or 2x40 (depending on version)
Interface method:
Connect the flat cable to the main control board or display control card
The communication method may be parallel port or serial port (such as RS232, SPI)
Supply voltage:+5V DC or+12V DC (depending on backlight and control circuit)
Control circuit: may integrate display driver chips (such as HD44780 or compatible devices)
Panel installation:
With fixed screw holes, it can be installed on the front panel of the chassis
The panel may be equipped with a transparent protective window
Backlight options:
Equipped with LED backlight (green, blue, or amber) for easy reading in low light environments
Service life: Industrial grade LCD, typical working life>20000 hours

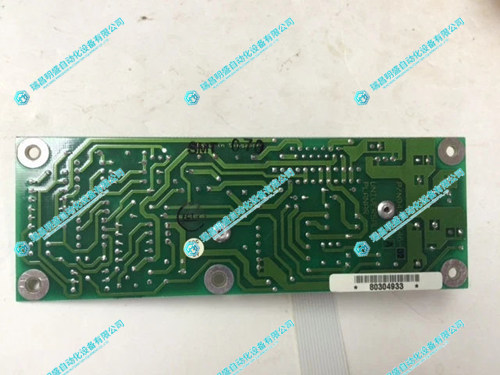

2.产 品 展 示
