Magnetek GPD506V-A054交流电驱动器
1.产 品 资 料 介 绍：
安装方式灵活多样
该驱动器采用标准控制柜内嵌安装的形式，在实际应用中，常被安装于电控柜内部，与断路器、接触器、PLC 等设备相互配合，共同构成一套完整的控制系统。不仅如此，它还支持壁挂式或法兰式安装，这种设计能够很好地适应工业现场有限的空间环境，让部署过程更加便捷高效。
变频调速模式适配广泛
作为三相异步电机调速的核心设备，它具备稳压 / 稳频控制以及变频控制功能，无论是用于连续运行的设备，还是工况波动较大的设备，都能胜任。在控制方式上，提供了 V/f 控制和开环矢量控制两种选择，可根据不同的精度要求和成本预算进行灵活搭配，满足多样化的使用需求。
本地与远程操作双重保障
驱动器面板支持本地操作，工作人员可以通过面板实现启动、频率设定以及故障诊断等功能，操作直观便捷。同时，它也支持远程控制，通过将外部端子与按钮开关或 PLC 逻辑相连接，能够实现远程的启停控制、速度调整等操作，提升了控制的灵活性和便利性。
信号接入方式丰富多元
在模拟信号接入方面，支持 0–10V 或 4–20mA 的模拟输入，可实现电机的连续调速控制，满足对速度进行精细调节的场景。而通过数字量输入端子，则能够实现多段速设定、启停控制、正反转切换等固定逻辑控制，适配不同的控制逻辑需求。
搭配制动单元增强制动性能
针对需要快速减速或者负载惯量大的应用场景，如提升设备、升降设备等，该驱动器可以外接制动电阻或制动单元，有效增强制动能力，避免因快速停机而导致的过压跳闸问题，保障设备的稳定运行。
通讯接口助力集成运行
借助 Modbus RTU 通讯协议，驱动器能够与上位机、PLC 或远程监控系统实现联动，支持参数的读取和远程控制操作。这一功能有利于实现设备的集中监控、多驱动协同控制以及与 SCADA 系统的集成，提升了整个控制系统的智能化水平。
多驱动联动控制协同高效
在实际的工程应用中，多个 GPD506V 型驱动器可以进行并列运行，实现多个电机的协同工作。例如在输送带联动、风机群控等场景中，能够确保各电机之间配合默契，提高整体设备的运行效率。
故障自检与日志记录便于维护
驱动器具备启动自检功能，在设备运行之前，会对输入电压、接地情况、设备温度等进行全面检查，及时发现潜在问题。同时，内置的故障记忆功能能够记录设备发生的故障信息，为维护人员定位问题根源、调整设备参数提供了有力依据，大大缩短了故障排查和维修的时间。
英文资料：
Flexible and diverse installation methods
The driver adopts the form of embedded installation in the standard control cabinet. In practical applications, it is often installed inside the electrical control cabinet and works together with circuit breakers, contactors, PLCs and other equipment to form a complete control system. Not only that, it also supports wall mounted or flange mounted installation, which can adapt well to the limited space environment of industrial sites and make the deployment process more convenient and efficient.
The frequency conversion speed regulation mode is widely adaptable
As the core equipment for regulating the speed of three-phase asynchronous motors, it has the functions of voltage/frequency stabilization control and frequency conversion control. Whether it is used for continuous operation equipment or equipment with large fluctuations in working conditions, it can be competent. In terms of control methods, two options are provided: V/f control and open-loop vector control, which can be flexibly combined according to different accuracy requirements and cost budgets to meet diverse usage needs.
Dual protection for local and remote operations
The drive panel supports local operation, and staff can achieve functions such as startup, frequency setting, and fault diagnosis through the panel, making the operation intuitive and convenient. At the same time, it also supports remote control, which can achieve remote start stop control, speed adjustment and other operations by connecting external terminals with button switches or PLC logic, improving the flexibility and convenience of control.
Rich and diverse signal access methods
In terms of analog signal access, it supports analog inputs of 0-10V or 4-20mA, which can achieve continuous speed control of the motor and meet the scenario of fine speed adjustment. By using digital input terminals, fixed logic control such as multi-stage speed setting, start stop control, and forward/reverse switching can be achieved, adapting to different control logic requirements.
Paired with a braking unit to enhance braking performance
For application scenarios that require rapid deceleration or high load inertia, such as lifting equipment, hoisting equipment, etc., this driver can be equipped with external braking resistors or braking units to effectively enhance braking capabilities, avoid overvoltage tripping problems caused by rapid shutdown, and ensure stable operation of the equipment.
Communication interface facilitates integrated operation
With the help of Modbus RTU communication protocol, the driver can be linked with the upper computer, PLC or remote monitoring system, supporting parameter reading and remote control operations. This function is conducive to achieving centralized monitoring of equipment, multi driver collaborative control, and integration with SCADA systems, improving the intelligence level of the entire control system.

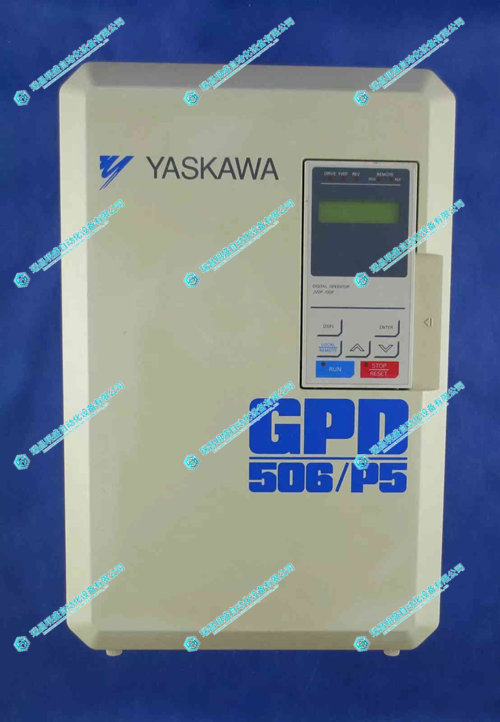

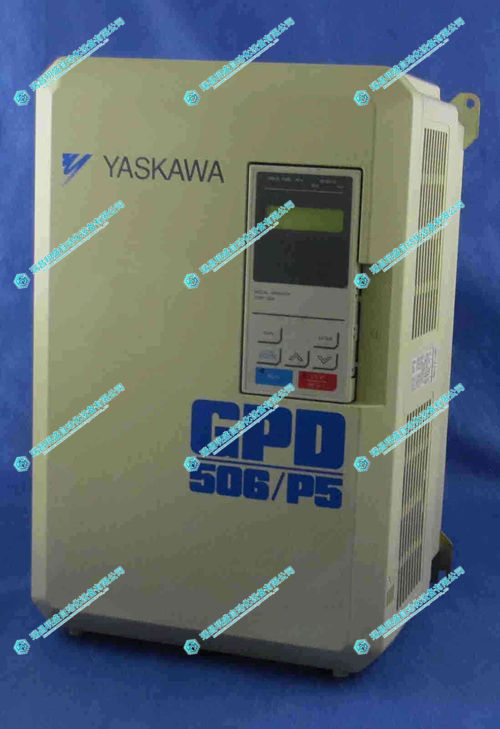

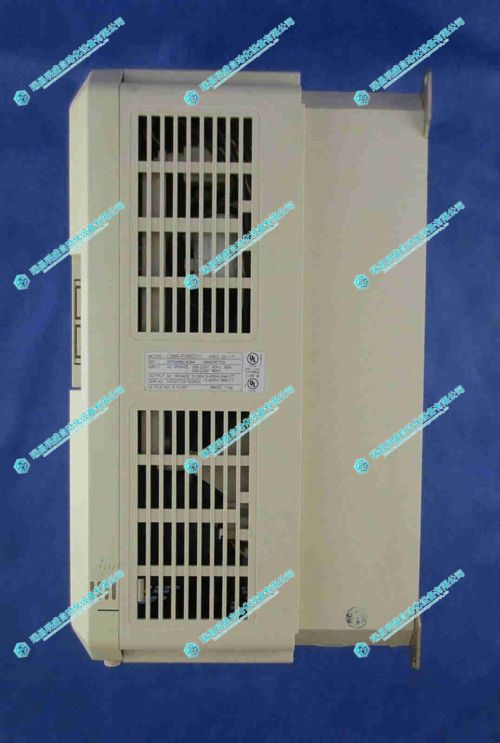

2.产 品 展 示
