Magnetek MG3-1C-1F-1J 电源模块
1.产 品 资 料 介 绍：
- 输入电压范围：90–264V AC，50/60 Hz，采用通用宽压输入设计，能适应不同地区的电压标准。
- 输入电流：最大约 1.8 A。
- 输出电压：24V DC，可为设备提供稳定的直流电压。
- 输出电流：最大 3A，满足多数中小功率设备的电流需求。
- 输出功率：约 72W。
- 工作温度范围：–40°C 至 + 70°C，能在较宽的温度区间内正常工作。
- 冷却方式：自然风冷，无需额外的冷却设备，节省安装空间和成本。
- 保护功能：具备过压保护、过流保护、短路保护以及自恢复功能，保障设备安全运行。
- 外形尺寸：约 105mm×56mm×28mm（依实际封装略有不同），体积小巧。
- 重量：约 200 克，轻便易安装。
英文资料：
1、 Product Overview
The product model is MG3-1C-1F-1J, which belongs to the AC/DC switching power module and is manufactured by MAGNETEK. It has a wide range of typical applications and can be used in various fields such as industrial control system power supply, OEM system power supply, communication power supply subsystems, etc., providing stable and reliable power support for related equipment.
2、 Technical parameters (typical configuration)
Input voltage range: 90-264V AC, 50/60 Hz, using a universal wide voltage input design that can adapt to voltage standards in different regions.
Input current: maximum approximately 1.8 A
Output voltage: 24V DC, can provide stable DC voltage for equipment.
Output current: up to 3A, meeting the current requirements of most small and medium power devices.
Output power: approximately 72W
Working temperature range: -40 ° C to+70 ° C, capable of working normally within a wide temperature range.
Cooling method: Natural air cooling, no additional cooling equipment required, saving installation space and costs.
Protection function: It has overvoltage protection, overcurrent protection, short circuit protection, and self recovery function to ensure the safe operation of the equipment.
Dimensions: Approximately 105mm × 56mm × 28mm (slightly different depending on the actual packaging), compact in size.
Weight: Approximately 200 grams, lightweight and easy to install.
3、 Product Features
1. Wide input range
Supporting global voltage standards (90-264VAC), this feature enables it to operate stably in industrial or remote areas with large power grid fluctuations, without the need to ｒｅｐｌａｃｅ power modules due to voltage differences, improving the versatility and applicability of the equipment.
2. Stable output
The output voltage is 24VDC, with low voltage fluctuation and small ripple, which can provide stable power for various 24V control logic or sensor modules, ensuring the precise operation of these devices and reducing faults caused by unstable voltage.
3. Efficient and energy-saving
The overall efficiency can reach over 90%, effectively reducing energy loss during operation, suitable for energy-saving equipment, meeting the requirements of modern industry for energy conservation and consumption reduction, and helping to reduce equipment operating costs.

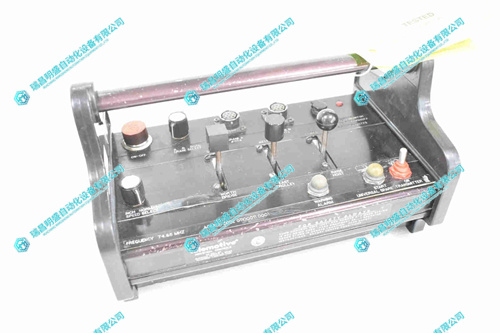

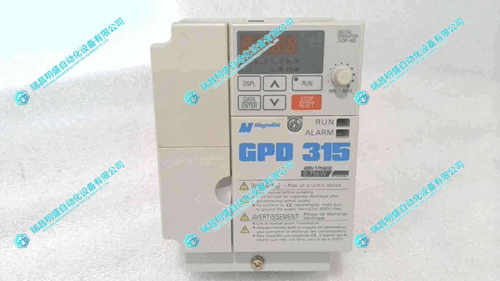

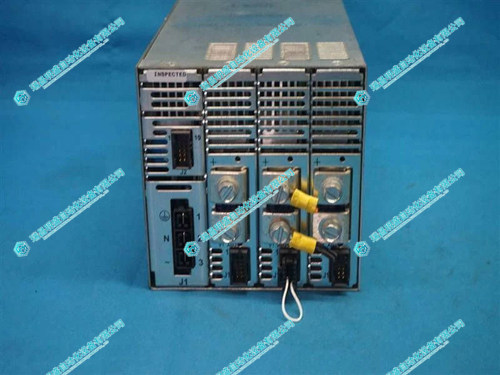

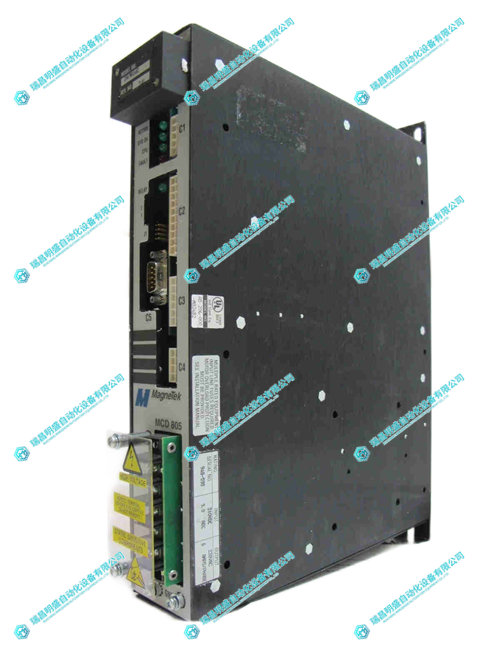

2.产 品 展 示
