GIDDINGS & LEWIS  502-03419-00伺服控制板

1.产 品 资 料 介 绍：

GIDDINGS & LEWIS 502-03419-00 伺服控制板概述

英文资料：

GIDINGS&LEWIS 502-03419-00 Servo Control Board Overview

GIDINGS&LEWIS 502-03419-00 servo control board is an industrial grade motion control module designed specifically for servo motor drives and multi axis mechanical systems. It precisely processes instructions from the upper controller to regulate the speed, position, and torque of servo motors, achieving high-precision motion control of mechanical equipment. It is the core unit of motion control in G&L systems and is often used in conjunction with CNC machine tools, automated production lines, and industrial robots.

In terms of technical parameters, the control board adopts closed-loop servo control and supports three control modes: position, speed, and torque, which can meet different motion control requirements. Rich input/output interfaces, providing multiple digital input and output interfaces, capable of receiving encoder feedback signals, forming a complete control loop. Strong motor compatibility, not only suitable for GIDINGS&LEWIS brushless AC servo motors, but also adaptable to other industrial servo motors. Excellent response characteristics, with high-speed signal processing capabilities, ensure precise and timely motor actions. The protection function is complete, with overcurrent, overload, over temperature and short circuit protection, effectively improving system reliability. Modular design makes it easy to install, expand, and can be combined with other control modules. At the same time, it has industrial adaptability against vibration, high temperature, and electromagnetic interference, making it suitable for stable operation in harsh industrial environments.

In the application scenario, in the field of CNC machine tools, it can accurately control the spindle, tool holder, and feed axis, achieve multi axis linkage machining, and ensure the machining accuracy of parts; In automated production lines, servo drives can be used to manage conveying, assembly, and sorting equipment, achieving efficient motion control and improving production efficiency; In industrial robot systems, controlling the joints of robotic arms and end effectors to complete complex action sequences enhances the flexibility of robot operations; In terms of packaging and printing equipment, drive feeding, positioning, and cutting mechanisms to ensure synchronous and accurate actions and improve product quality; In experimental and automated testing equipment, precise control and data acquisition of motor drives and precision motion devices are carried out to meet experimental testing requirements.

The product has significant advantages, high precision, and closed-loop control ensures high precision and repeatability of servo motion; Fast dynamic response, high-speed processing capability improves action response speed and control stability; Strong system compatibility, seamless matching with G&L controllers and I/O modules, and also compatible with other industrial platforms; Safe and reliable, with built-in multiple protection functions, suitable for high load operating environments; Easy maintenance, clear status indication, support for fault diagnosis, and convenient system maintenance and debugging.

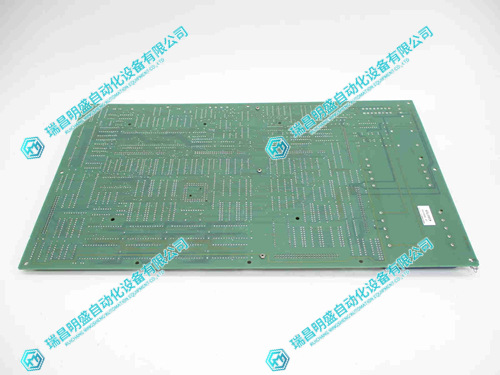

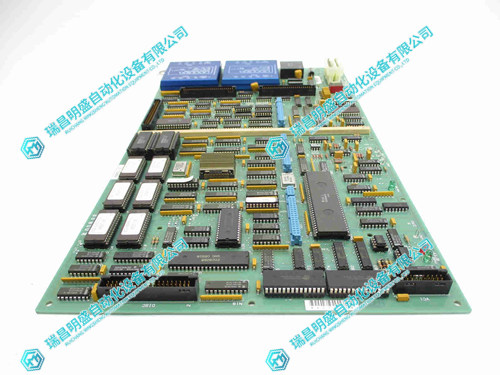

2.产      品      展      示
