GIDINGS&LEWIS M.1016.9125交流输出模块

 GIDINGS&LEWIS  M.1016.9125交流输出模块

1.产 品 资 料 介 绍：

一、产品核心价值

二、产品特点

1. 多通道交流输出，适配多元负载：提供多路独立交流输出通道，可同时驱动不同类型的交流负载 —— 例如在自动化生产线中，一路驱动输送带的交流电机，另一路控制分拣机构的继电器，还有一路连接气动装置的电磁阀，无需额外模块即可实现多设备集中控制，简化系统架构。
2. 快速响应能力，满足高速需求：输出信号响应速度快，能迅速执行控制指令。在高速包装机中，可快速切换交流电机转速或控制电磁阀启停，确保包装膜裁切、产品封口等动作精准同步，适配高速工业动作与精密自动化应用的低延迟要求。
3. 过载及短路保护，筑牢安全防线：内置完善的保护机制，当负载出现过载（如电机堵转导致电流过大）或短路故障时，模块能立即切断输出，避免交流电机、继电器等设备因异常损坏，同时保护控制系统免受冲击，大幅提升工业系统的运行安全性。
4. 模块化设计，便利系统运维：采用标准化模块化结构，可直接插装于 PiC900 系统机架。后期若需扩展负载控制路数，只需新增模块即可，无需重构系统；模块故障时能快速插拔更换，减少设备停机维护时间，降低工业生产的中断成本。
5. 工业环境适应性，稳定应对严苛工况：针对工业现场特性优化设计，具备出色的抗电磁干扰能力（可抵御车间变频器、大型电机产生的电磁干扰）和抗振动性能（适应机床、生产线运行时的机械振动），即便在高温、粉尘环境下也能长期连续运行，保障输出信号稳定不中断。
6. 接口兼容性强，实现无缝集成：可与 G&L 系列的 CPU 模块、I/O 模块、伺服控制板及驱动器等无缝连接。例如与 CPU 模块配合接收控制指令，与 I/O 模块协同反馈负载状态，与伺服控制板联动实现闭环控制，或直接驱动伺服驱动器，灵活适配不同控制逻辑，简化系统集成流程。

英文资料：

1、 Product Core Value

M. 1016.9125 is an AC output module designed by Giddings&Lewis specifically for industrial automation. Its core function is to convert control system instructions into AC signals, accurately drive various AC loads, and serve as a key link between the control center and on-site execution equipment. It is compatible with the PiC900 system and provides reliable output guarantees for stable operation in industrial scenarios.

2、 Product Features

Multi channel AC output, suitable for multiple loads: Provides multiple independent AC output channels, which can simultaneously drive different types of AC loads - for example, in an automated production line, one channel drives the AC motor of the conveyor belt, the other controls the relay of the sorting mechanism, and the other connects the solenoid valve of the pneumatic device, which can achieve centralized control of multiple devices without the need for additional modules, simplifying the system architecture.

Fast response capability, meeting high-speed requirements: fast output signal response speed, able to quickly execute control instructions. In high-speed packaging machines, the AC motor speed can be quickly switched or the solenoid valve can be controlled to start and stop, ensuring precise synchronization of packaging film cutting, product sealing and other actions, and adapting to the low latency requirements of high-speed industrial actions and precision automation applications.

Overload and short circuit protection, building a strong safety line: Equipped with a comprehensive protection mechanism, when the load experiences overload (such as motor stalling causing excessive current) or short circuit faults, the module can immediately cut off the output, avoiding abnormal damage to AC motors, relays and other equipment, while protecting the control system from impact, greatly improving the operational safety of industrial systems.

Modular design for convenient system operation and maintenance: Adopting a standardized modular structure, it can be directly plugged into the PiC900 system rack. If there is a need to expand the number of load control channels in the later stage, only new modules need to be added, and there is no need to reconstruct the system; When the module fails, it can be quickly plugged in and replaced, reducing equipment downtime and maintenance time, and lowering the interruption cost of industrial production.

Adaptability to industrial environments and stable response to harsh working conditions: Optimized for the characteristics of industrial sites, it has excellent anti electromagnetic interference capabilities (able to resist electromagnetic interference generated by workshop frequency converters and large motors) and anti vibration performance (suitable for mechanical vibration during machine tool and production line operation), and can operate continuously for a long time even in high temperature and dust environments, ensuring stable and uninterrupted output signals.

Strong interface compatibility, achieving seamless integration: can seamlessly connect with G&L series CPU modules, I/O modules, servo control boards, and drivers. For example, cooperating with the CPU module to receive control instructions, cooperating with the I/O module to feedback load status, linking with the servo control board to achieve closed-loop control, or directly driving the servo driver, flexibly adapting to different control logics, and simplifying the system integration process.

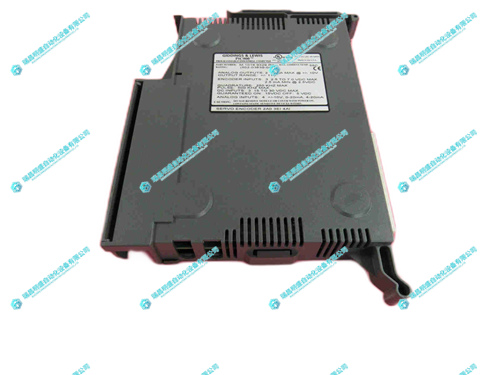

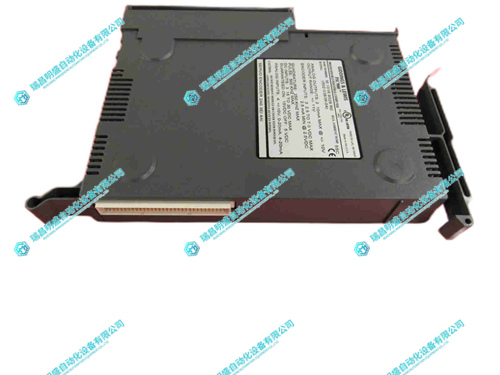

  2.产      品      展      示
