GIDINGS&LEWIS 502-03552-02输入输出模块
1.产 品 资 料 介 绍：
1. 核心功能表现
2. 电气性能优势
3. 结构与安装设计
4. 系统兼容能力
5. 实际应用特点
英文资料：
1. Performance of core functions
As a key I/O expansion component in the control system, this module is equipped with digital input and output channels, which can efficiently build a signal communication bridge between external devices and the main controller. Among them, the input port can collect multiple industrial standard signals, while the output port can drive actuators, relays, or signal indicating devices to operate. At the same time, the module has stable data sampling and response performance, providing strong support for the reliable operation of the system in real-time control scenarios.
2. Electrical performance advantages
In terms of electrical design, modules are adapted to commonly used voltage specifications in industrial sites (usually 24V DC input/output) and can be flexibly integrated into various industrial control environments. The input channel adopts an isolated design, which can effectively reduce the interference of electrical noise on the control system and ensure the accuracy of signal transmission; The output channel has moderate load driving capability and can directly drive small solenoid valves, relay coils, and other components without the need for additional driving components.
3. Structure and installation design
The module adopts standardized external dimensions and can be directly plugged into Giddings&Lewis control racks or compatible control systems, simplifying the equipment integration process. In addition, the module is equipped with highly reliable wiring terminals, which not only facilitate the quick completion of wiring operations by staff, but also enable convenient line inspection and adjustment during subsequent maintenance. At the same time, the module has industrial grade durability and can adapt to automated work environments that operate continuously for long periods of time, reducing the occurrence rate of failures.
4. System compatibility capability
This module has good compatibility with multiple motion controllers and host systems under Giddings&Lewis, supporting the expansion of multiple I/O modules under the same bus architecture to meet the needs of different control scales. The module is equipped with a standardized signal interface protocol, which enables high-speed data transmission through the system bus and facilitates unified management and control of all expansion modules, thereby improving the overall operational efficiency of the system.
5. Practical application characteristics
Modules are widely used in fields such as CNC machine tools, automated production lines, industrial robots, and packaging equipment, mainly responsible for sensor signal acquisition and component control. In complex industrial processes, core functions such as logic control, equipment status detection, and action driving can be achieved. With the help of modular expansion mode, users can flexibly configure the number of I/O ports according to their actual needs, easily adapting to different application scenarios from small and simple systems to large and complex systems.

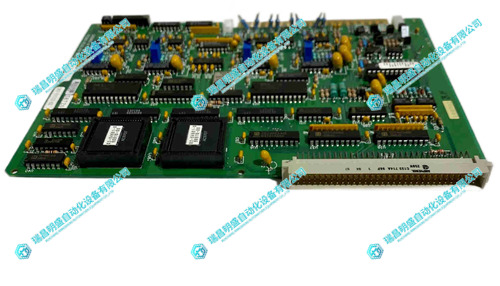

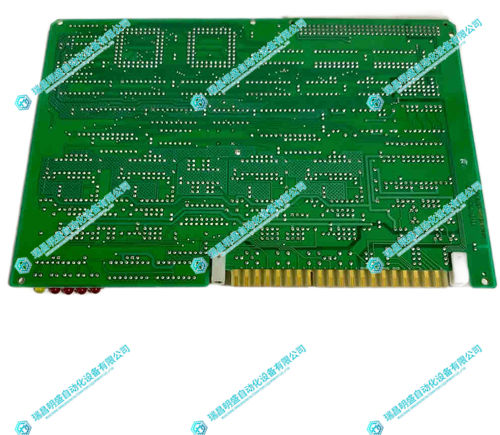

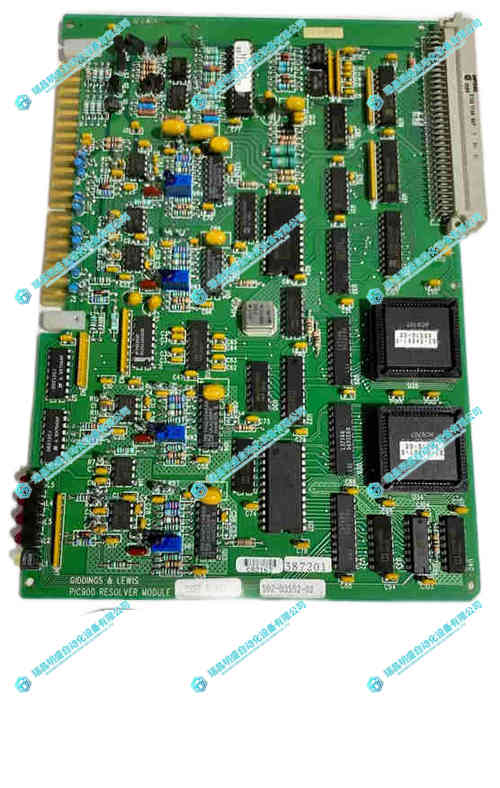

2.产 品 展 示
