GIDINGS&LEWIS 502-02432-00控制板

 GIDINGS&LEWIS 502-02432-00控制板

1.产 品 资 料 介 绍：

一、产品概述

二、产品特点

1. 高效数据处理能力
   内置高性能工业级处理器，数据处理速度快，可同时接收并处理多通道输入输出信号 —— 例如在自动化生产线中，能实时采集传感器反馈的物料位置信号、设备状态信号，同时向执行器下发启停、调速指令，无延迟响应。支持复杂逻辑运算（如多条件判断、时序控制）和条件触发操作（如当温度超标时自动启动冷却系统），在精密加工场景中，可通过精准运算控制刀具进给量与主轴转速的匹配，大幅提高系统控制精度，减少加工误差。
2. 多功能接口
   接口兼容性强，既能适配数字量模块（连接开关、继电器）与模拟量模块（采集电压、电流信号），实现控制器与执行器之间的高效数据交互；又提供标准工业接口（如 RS485、EtherCAT），可直接与伺服驱动器、编码器等外围设备连接。例如在机器人系统中，通过接口与关节编码器通信获取位置反馈，同时向伺服驱动器发送运动指令，确保机器人动作精准；无需额外转接配件，简化接线流程，降低系统集成复杂度。
3. 工业可靠设计
   采用坚固的外壳与内部结构，能抵御工业现场的机械振动（如机床加工时的振动、生产线设备运行时的晃动），避免内部元件松动导致的故障；耐高温性能优异，在高温车间（如冶金、化工生产环境）中仍能稳定工作，不受环境温度波动影响；通过电磁屏蔽设计，可抵御电机、变频器等设备产生的电磁干扰，确保数据传输与运算不受干扰。同时内置过流、短路、过压保护电路，当外部电路出现异常（如线路短路、电压骤升）时，能快速切断回路，保护控制板及相连设备不被损坏，提升系统整体安全性。

英文资料：

1、 Product Overview

502-02432-00, as the core control board module of Giddings&Lewis series control systems, is the "command center" of industrial automation systems. It not only undertakes the core tasks of logical operations, but also coordinates the actions of various I/O modules (such as digital input/output modules, analog acquisition modules) and drivers (such as servo drivers, stepper drivers) to ensure the collaborative work of all devices. With reliable and high-speed data processing capabilities, it plays a key role in scenarios such as multi axis linkage control of CNC machine tools and process scheduling of automated production lines, and is the core unit that ensures stable and efficient operation of industrial automation systems.

2、 Product Features

Efficient data processing capability

Built in high-performance industrial grade processor with fast data processing speed, capable of simultaneously receiving and processing multi-channel input and output signals - for example, in automated production lines, it can collect real-time material position signals and equipment status signals feedback from sensors, and issue start stop and speed control commands to actuators without delay response. Support complex logical operations (such as multi condition judgment and timing control) and conditional triggering operations (such as automatically starting the cooling system when the temperature exceeds the standard). In precision machining scenarios, precise calculations can be used to control the matching between tool feed and spindle speed, greatly improving system control accuracy and reducing machining errors.

Multi functional interface

Strong interface compatibility, able to adapt to both digital modules (connecting switches and relays) and analog modules (collecting voltage and current signals), achieving efficient data exchange between controllers and actuators; It also provides standard industrial interfaces (such as RS485, EtherCAT), which can be directly connected to peripheral devices such as servo drives and encoders. For example, in robot systems, position feedback is obtained by communicating with joint encoders through interfaces, and motion commands are sent to servo drives to ensure precise robot movements; No additional adapter accessories are required, simplifying the wiring process and reducing system integration complexity.

Industrial Reliable Design

Adopting a sturdy shell and internal structure, it can withstand mechanical vibrations in industrial sites (such as vibrations during machine tool processing and shaking during production line equipment operation), avoiding faults caused by loose internal components; Excellent high temperature resistance, able to work stably in high-temperature workshops (such as metallurgical and chemical production environments) without being affected by environmental temperature fluctuations; Through electromagnetic shielding design, it can resist electromagnetic interference generated by devices such as motors and frequency converters, ensuring that data transmission and computation are not affected. At the same time, it is equipped with overcurrent, short circuit, and overvoltage protection circuits. When external circuits encounter abnormalities (such as line short circuits or voltage surges), it can quickly cut off the circuit, protect the control board and connected equipment from damage, and enhance the overall safety of the system.

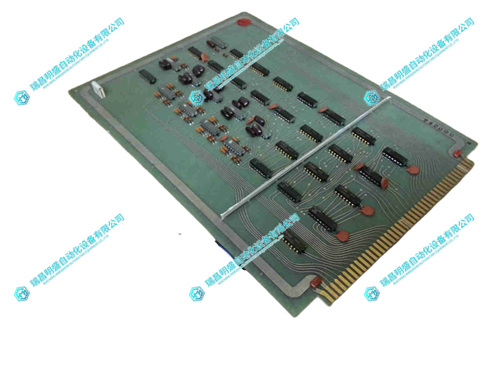

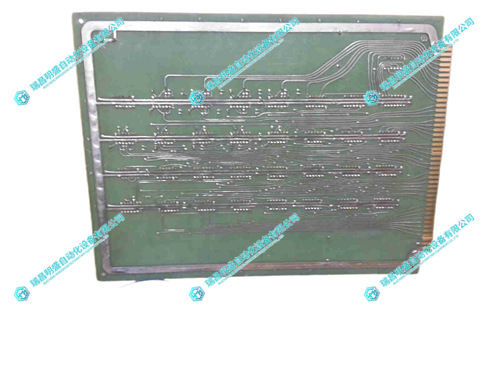

2.产      品      展      示

3.其他产品

1C31197G01 定位器模块

 EXM-15A 控制板

 EXM-10A磁盘控制器

4.其他英文产品

Eaton XV-440-10TVB-1-50 Touch Screen

FOXBORO FBM217 Voltage Monitor Module

HONEYWELL 05704-A-0146 Digital

The content is from Ruichang Mingsheng Automation Equipment Co., LTD

Contact: +86 15270269218
