GIDINGS&LEWIS 502-03548-00输入模块

1.产 品 资 料 介 绍：

GIDINGS&LEWIS 502-03548-00 输入模块

一、产品概述

二、技术特点

1. 多通道输入：支持多路数字量输入（连接传感器、开关等），提供高精度模拟量输入（采集电压、电流等工业信号）。
2. 高速信号采集：输入通道响应快速，保障数字 / 模拟信号实时采集，适配高动态工业控制场景。
3. 隔离与保护：输入通道与控制总线电气隔离抗干扰，内置过流、过压、短路保护，保障模块与系统安全。
4. 状态指示：每通道带 LED 指示灯，便于现场调试；支持通道异常报警，快速定位问题。
5. 模块化安装：可安装于 G&L 控制机架或标准插槽，易扩展维护；与 G&L 控制器、输出模块兼容，实现无缝集成。
6. 工业级耐用性：结构坚固，耐高温、抗振动及电磁干扰，适合长期连续运行。

英文资料：

GIDINGS&LEWIS 502-03548-00 Input Module

1、 Product Overview

As a Giddings&Lewis series industrial input module, 502-03548-00 is responsible for collecting digital/analog signals from on-site equipment and transmitting the data to the controller for processing. It is a key signal acquisition unit for CNC machine tools, automated production lines, and industrial robot systems.

2、 Technical features

Multi channel input: Supports multiple digital inputs (connected to sensors, switches, etc.), providing high-precision analog inputs (collecting industrial signals such as voltage and current).

High speed signal acquisition: The input channel responds quickly, ensuring real-time acquisition of digital/analog signals and adapting to high dynamic industrial control scenarios.

Isolation and protection: The input channel and control bus are electrically isolated and anti-interference, with built-in overcurrent, overvoltage, and short-circuit protection to ensure the safety of the module and system.

Status indication: Each channel is equipped with LED indicator lights for easy on-site debugging; Support channel abnormal alarm and quickly locate problems.

Modular installation: can be installed on G&L control racks or standard slots, easy to expand and maintain; Compatible with G&L controllers and output modules, achieving seamless integration.

Industrial grade durability: With a sturdy structure, it is resistant to high temperatures, vibrations, and electromagnetic interference, making it suitable for long-term continuous operation.

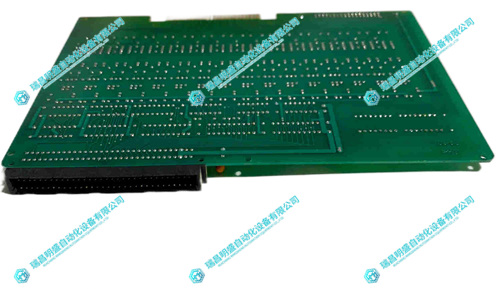

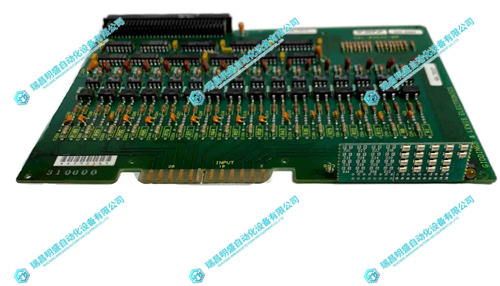

2.产      品      展      示
