GIDINGS&LEWIS  501-02984-01接口板

1.产 品 资 料 介 绍：

Giddings & Lewis 501-02984-01 接口板介绍

一、产品概述

二、产品特点

（一）多通道信号接口

1. 多路并行处理：模块设计有多个独立的输入 / 输出通道，支持同时接收和处理多路不同类型的信号。例如，在自动化生产线中，可同时接收来自 3 个位置传感器的输入信号（判断物料是否到位），同时向 2 台输送带电机、1 台分拣气缸发送输出控制信号，无需分时处理，大幅提升信号传输效率，满足多设备同步协同的复杂控制需求。
2. 信号类型适配：具备灵活的信号兼容性，可稳定处理数字量信号（如开关通断信号、高低电平指令）和逻辑信号（如时序触发信号、脉冲控制信号）。无论是简单的设备启停指令，还是需要精准时序匹配的逻辑控制信号（如数控机床的刀具切换触发信号），模块都能准确识别、转换并传递，适配不同工业场景下的信号交互需求，降低系统集成难度。

（二）高可靠性设计

1. 工业级元件保障：核心电子元器件均采用工业级标准产品，经过严格的环境耐受性测试（如 -40℃~85℃ 宽温循环测试、湿度老化测试）和机械性能测试（如振动、冲击测试），具备出色的抗损耗、抗老化能力。即使在长期连续运行（通常可达数万小时无故障）或恶劣工业环境（如高温、高湿、多粉尘的机床车间）中，仍能保持稳定性能，减少因元件失效导致的模块故障，降低系统维护成本。
2. 恶劣环境耐受：针对工业现场常见的振动、冲击问题，模块在结构设计上进行了特殊优化 —— 外壳采用高强度金属材质，内部电路板通过防震支架固定，关键接插件采用防松动设计。可承受机床高速运转、生产线设备频繁动作产生的振动（加速度可达 5g）与冲击（峰值加速度可达 50g），避免内部元件松动或线路接触不良，确保在复杂工况下仍能可靠工作，适应数控机床、自动化生产线等严苛应用场景。

英文资料：

Introduction to Giddings&Lewis 501-02984-01 Interface Board

1、 Product Overview

The Giddings&Lewis 501-02984-01 interface board is a key module in the PiC series control system that enables "cross device signal interoperability". It can be regarded as the "signal translator" and "bidirectional transmission bridge" between the control system and external devices. Its core function is to solve the problem of signal adaptation between different devices and modules: on the one hand, it accurately receives raw signals (such as digital instructions and logic signals) from PiC controllers or input modules, and converts them into electrical signals that can be recognized by lower level devices (such as actuators and sensors) through internal conversion circuits; On the other hand, real-time feedback signals from external devices (such as position feedback and status signals) are received, processed, and transmitted back to the control system, forming a complete signal loop of "instruction issuance feedback reception" to ensure the coordinated operation of the control system and external devices.

This interface board is widely used in industrial scenarios such as CNC machine tools and automated production lines. Through stable bidirectional signal transmission, it eliminates signal barriers between devices and provides core support for the precision and efficiency of industrial automation control.

2、 Product Features

（1） Multi channel signal interface

Multi channel parallel processing: The module design has multiple independent input/output channels, supporting the simultaneous reception and processing of multiple signals of different types. For example, in an automated production line, it is possible to simultaneously receive input signals from three position sensors (to determine whether the material is in place), and send output control signals to two conveyor belt motors and one sorting cylinder without the need for time-sharing processing, greatly improving signal transmission efficiency and meeting the complex control requirements of multi device synchronization and collaboration.

Signal type adaptation: It has flexible signal compatibility and can stably process digital signals (such as switch on/off signals, high/low level instructions) and logic signals (such as timing trigger signals, pulse control signals). Whether it is simple device start stop instructions or logic control signals that require precise timing matching (such as tool switching trigger signals for CNC machine tools), the module can accurately recognize, convert, and transmit them, adapt to the signal interaction requirements in different industrial scenarios, and reduce the difficulty of system integration.

（2） High reliability design

Industrial grade component guarantee: the core electronic components are all industrial grade standard products, which have passed strict environmental tolerance tests (such as -40 ℃~85 ℃ wide temperature cycle test, humidity aging test) and mechanical performance tests (such as vibration and impact tests), and have excellent resistance to loss and aging. Even in long-term continuous operation (usually up to tens of thousands of hours without faults) or harsh industrial environments (such as high temperature, high humidity, and dusty machine tool workshops), stable performance can still be maintained, reducing module failures caused by component failures and lowering system maintenance costs.

Endurance to harsh environments: In response to common vibration and impact problems in industrial sites, the module has been specially optimized in structural design - the outer shell is made of high-strength metal material, the internal circuit board is fixed by shock-absorbing brackets, and the key connectors are designed to prevent loosening

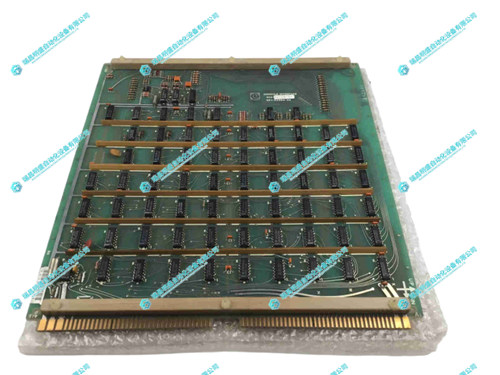

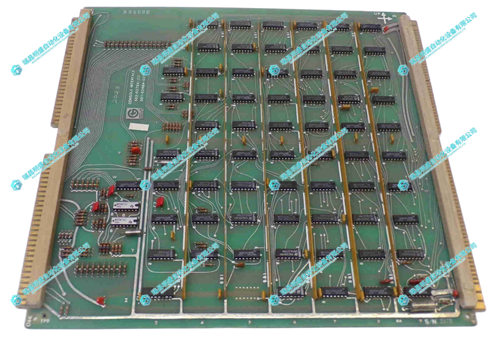

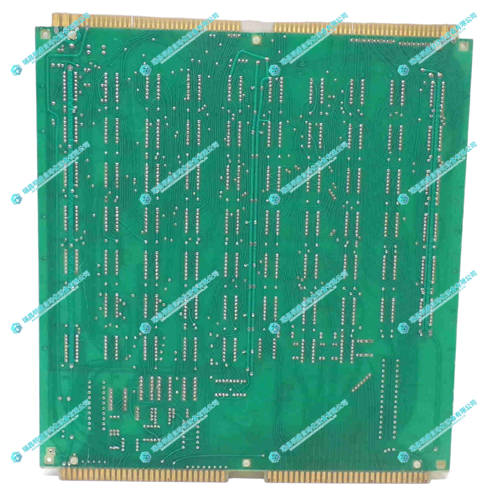

 2.产      品      展      示
