Extreme Networks X440-G2-48P-10端口交换机
1.产 品 资 料 介 绍：
- 设备定位：ExtremeSwitching X440-G2 系列固定端口交换机，主打校园边缘与企业接入层，适配办公室、教学楼、零售门店等高密度终端接入场景，可直接部署为接入交换机或堆叠扩展核心节点。
- 端口配置：配备 48 个千兆 PoE+ RJ-45 端口（支持 30W 单端口供电）与 4 个千兆 SFP combo 端口，Combo 端口可灵活切换铜缆 / 光纤连接，适配 IP 摄像头、无线 AP、VoIP 电话等终端的供电与联网需求。
- 核心功能：承担终端设备接入、数据汇聚与 PoE 供电双重职责，支持 Summit Stack-V 堆叠技术（最多 8 台设备堆叠），配合 ExtremeCloud IQ 实现全网集中管理，简化边缘网络部署与运维。
- 转发性能：交换容量达 176Gbps，包转发率 130.9Mpps，采用无阻塞线速设计，保障 48 端口同时满速传输无瓶颈；MAC 地址表支持 16,000 条条目，适配多终端接入场景。
- PoE 供电：总 PoE 功率预算 740W，单端口最大输出 30W，可同时为 48 台低功耗终端（如 IP 电话）或 24 台高功耗设备（如高清摄像头）供电，无需额外部署电源线路。
- 扩展灵活：4 个 Combo 上行端口支持从 1Gbps 升级至 10Gbps SFP + 光模块，通过软件授权即可提升 uplink 速率，无需更换整机，适配网络带宽扩容需求。
- 物理规格：1U 机架式设计（4.4cm×44.15cm×36.86cm），重量 14.55lb（6.60kg），适配标准 19 英寸机柜安装，紧凑尺寸节省机房空间。
- 管理方式：支持三重管理模式 ——ExtremeCloud IQ 云平台（零接触部署、拓扑可视化）、ExtremeCloud IQ-Site Engine 本地管理、Web GUI/CLI 本地配置；配备 Console 口、带外管理网口与 USB 2.0 接口，适配不同运维场景。
- 操作便利：端口配备 Link/Act、Speed、PoE 状态指示灯，直观显示设备连接、速率与供电状态；支持固件在线升级与配置批量下发，降低维护成本。
Extreme Networks X440-G2-48P-10端口交换机 英文资料：
1. Adaptation scenarios and functions (X440-G2-48P-10)
Device positioning: ExtremeSwitching X440-G2 series fixed port switch, focusing on campus edge and enterprise access layer, suitable for high-density terminal access scenarios such as offices, teaching buildings, retail stores, etc. It can be directly deployed as an access switch or stacked expansion core node.
Port configuration: Equipped with 48 Gigabit PoE+RJ-45 ports (supporting 30W single port power supply) and 4 Gigabit SFP combo ports, Combo ports can flexibly switch between copper/fiber connections to meet the power and networking needs of IP cameras, wireless APs, VoIP phones, and other terminals.
Core function: Undertake dual responsibilities of terminal device access, data aggregation, and PoE power supply, support Summit Stack-V stacking technology (up to 8 devices stacked), and cooperate with ExtremeCloud IQ to achieve centralized management of the entire network, simplifying edge network deployment and operation.
2. Performance and Scalability (X440-G2-48P-10)
Forwarding performance: The switching capacity reaches 176Gbps, the packet forwarding rate is 130.9Mpps, and it adopts a non blocking line speed design to ensure that 48 ports can transmit at full speed without bottlenecks; The MAC address table supports 16000 entries and is suitable for multi terminal access scenarios.
PoE power supply: The total PoE power budget is 740W, with a maximum output of 30W per port. It can simultaneously power 48 low-power terminals (such as IP phones) or 24 high-power devices (such as high-definition cameras) without the need for additional power lines.
Flexible Expansion: Four Combo uplink ports support upgrading from 1Gbps to 10Gbps SFP+optical modules. Uplink speed can be increased through software authorization without the need to ｒｅｐｌａｃｅ the entire machine, adapting to network bandwidth expansion needs.
3. Structure and Management Design (X440-G2-48P-10)
Physical specifications: 1U rack mounted design (4.4cm × 44.15cm × 36.86cm), weight 14.55lb (6.60kg), suitable for standard 19 inch cabinet installation, compact size saves data center space.
Management method: Supports triple management mode - ExtremeCloud IQ cloud platform (zero touch deployment, topology visualization), ExtremeCloud IQ Site Engine local management, Web GUI/CLI local configuration; Equipped with Console port, out of band management network port, and USB 2.0 interface, suitable for different operation and maintenance scenarios.
Easy to operate: The port is equipped with Link/ACT, Speed, and PoE status indicator lights, which intuitively display device connection, speed, and power status; Support firmware online upgrade and bulk configuration distribution, reducing maintenance costs.

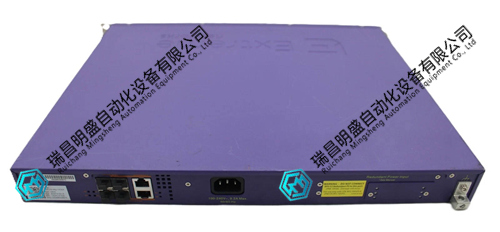

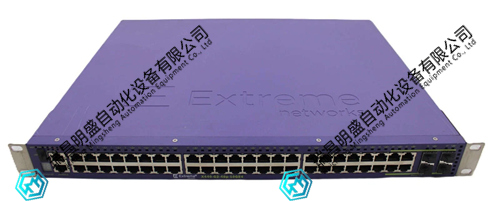

Extreme Networks X440-G2-48P-10端口交换机 产品展示
