Extreme Networks BDXA-40G24X交换机模块
1.产 品 资 料 介 绍：
- 核心适配：Extreme Networks BDXA-40G24X 是高密度 40G 光口扩展模块，适配 ExtremeSwitching 系列高端机箱式交换机，专为高端口密度场景设计，满足数据中心大规模设备互联的带宽扩展需求。
- 接口规格：配备 24 个 40GBASE-X QSFP + 光口，单端口速率达 40Gbps，可搭配单模（传输距离≤40 公里）、多模（传输距离≤100 米）QSFP + 光模块，灵活适配不同距离的设备互联场景。
- 性能支撑：采用全非阻塞线速架构，整机吞吐量无瓶颈，单端口转发速率稳定 40Gbps，可高效承载服务器集群互联、大流量数据备份等高频高带宽业务，保障传输流畅性。
- 管理兼容：无缝对接 Extreme Management Center（XMC）平台，支持批量配置 VLAN 与 QoS 优先级，兼容 SNMPv3 协议，可实时监控端口流量、模块状态，实现集中化运维管控。
- 安全防护：具备硬件级 ACL 访问控制，可基于 IP、MAC 地址限制数据访问；支持端口安全绑定，防范非法设备接入，同时抵御 ARP 欺骗、DHCP 泛洪等常见网络攻击。
- 可靠部署：支持热插拔设计，故障时可在线更换不中断业务；适配交换机冗余电源架构，配合链路故障快速检测机制，提升网络运行连续性与可靠性。
- 运维便捷性：自带端口与全局状态指示灯，直观显示连接、速率及运行状态；支持远程故障诊断，可通过管理平台查看错误帧、光功率等参数，便于快速排查问题。
- 环境适应性：采用低功耗 QSFP + 光口设计，能耗优于同类型高密度模块，且能在数据中心标准温湿度（0-40℃，20%-80% 湿度）内稳定工作，适应长期高负载环境。
- 组网灵活：支持 LACP 链路聚合，可绑定多端口提升带宽与冗余；兼容 MSTP 生成树协议，构建无环拓扑，适配数据中心叶脊核心层、大型园区网骨干层等多场景。
Extreme Networks BDXA-40G24X交换机模块 英文资料：
Core Adaptation: Extreme Networks BDXA-40G24X is a high-density 40G optical port expansion module that is compatible with the Extreme Switching series of high-end chassis switches. It is designed specifically for high port density scenarios and meets the bandwidth expansion needs of large-scale equipment interconnection in data centers.
Interface specifications: Equipped with 24 40GBASE-X QSFP+optical ports, with a single port speed of 40Gbps, it can be paired with single-mode (transmission distance ≤ 40 kilometers) and multi-mode (transmission distance ≤ 100 meters) QSFP+optical modules to flexibly adapt to device interconnection scenarios at different distances.
Performance support: Adopting a non blocking line speed architecture, the overall throughput is bottleneck free, and the single port forwarding rate is stable at 40Gbps. It can efficiently carry high-frequency and high bandwidth services such as server cluster interconnection and large traffic data backup, ensuring smooth transmission.
Management compatibility: Seamless integration with the Extreme Management Center (XMC) platform, supporting batch configuration of VLAN and QoS priorities, compatible with the SNPv3 protocol, capable of real-time monitoring of port traffic and module status, achieving centralized operation and maintenance control.
Security protection: equipped with hardware level ACL access control, which can restrict data access based on IP and MAC addresses; Support port security binding, prevent illegal device access, and resist common network attacks such as ARP spoofing and DHCP flooding.
Reliable deployment: supports hot swappable design, can be replaced online in case of failure without interrupting business; Adapt to the redundant power architecture of switches, coupled with a fast detection mechanism for link failures, to enhance the continuity and reliability of network operation.
Convenience of operation and maintenance: Equipped with ports and global status indicator lights, it intuitively displays connection, speed, and operating status; Support remote fault diagnosis, allowing users to view error frames, optical power, and other parameters through the management platform for quick troubleshooting.
Environmental adaptability: Adopting low-power QSFP+optical port design, the energy consumption is better than that of high-density modules of the same type, and it can work stably within the standard temperature and humidity range (0-40 ℃, 20% -80% humidity) of the data center, adapting to long-term high load environments.
Flexible networking: Supports LACP link aggregation, can bind multiple ports to improve bandwidth and redundancy; Compatible with MSTP spanning tree protocol, building an acyclic topology, adapting to multiple scenarios such as data center spine core layer and large-scale park network backbone layer.

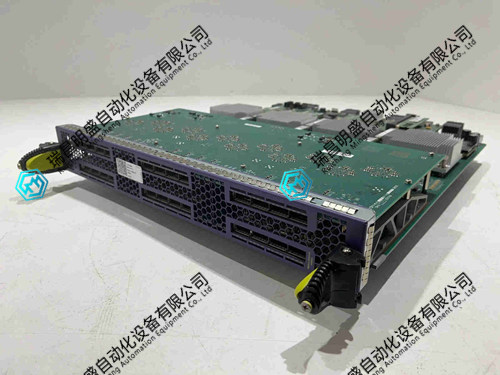

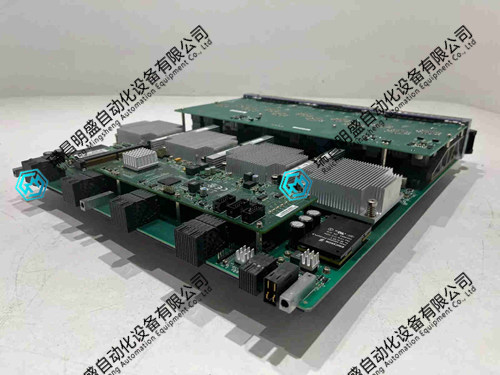

Extreme Networks BDXA-40G24X交换机模块 产品展示
产品视频
